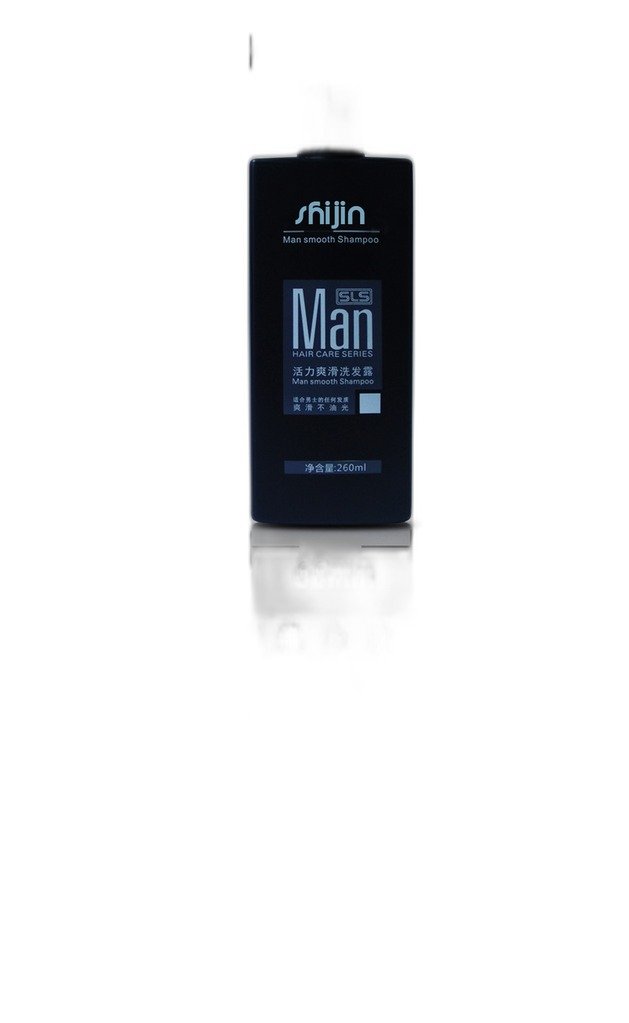

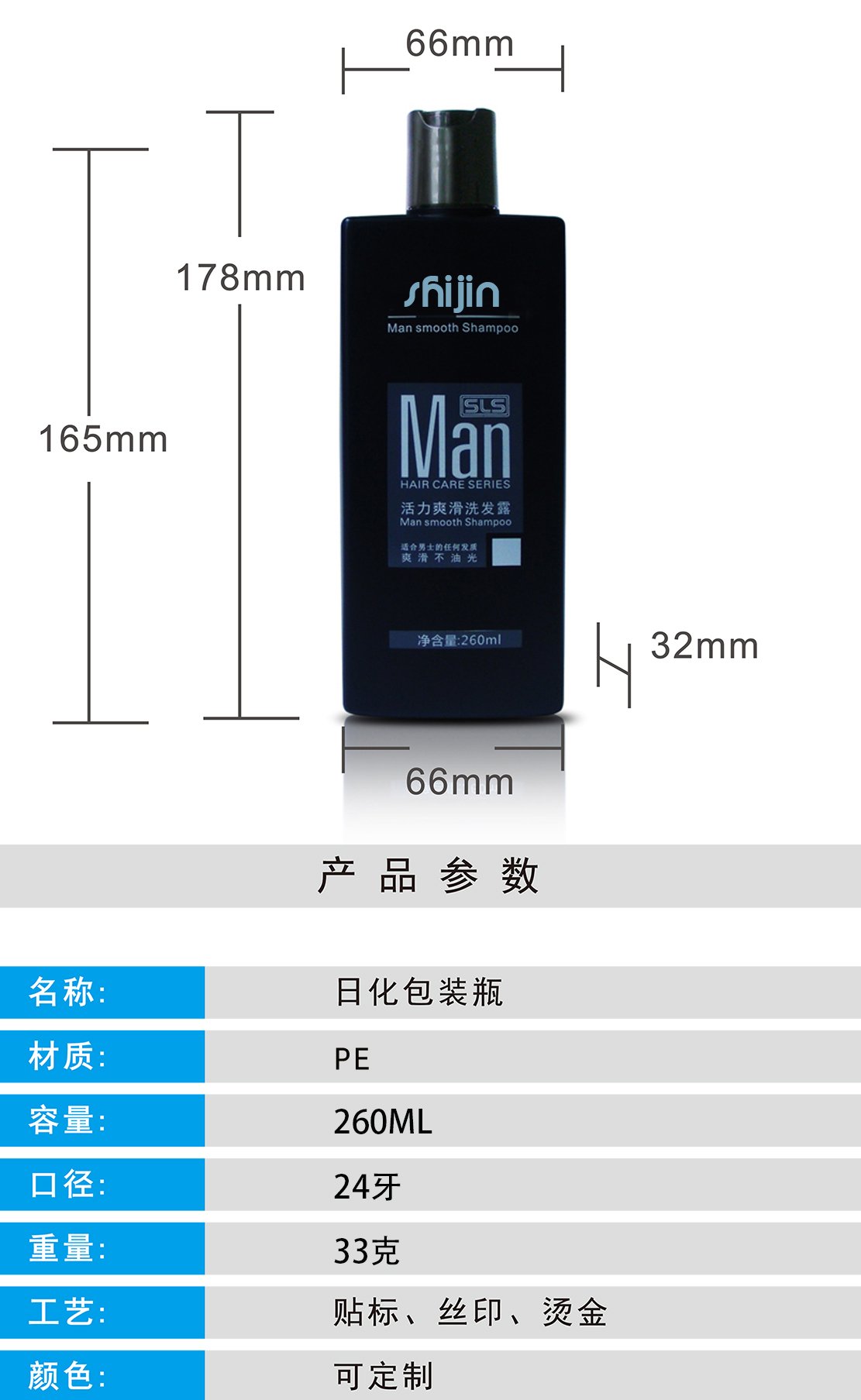

PE Cosmetic Bottle 260ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE0080-260. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 260 ml (8.8 fl oz) |
| Bottle Weight | 30 g |
| Neck Finish | 24 mm |
| Total Height | 165 mm |
| Shoulder Height | 148 mm |
| Base (W × D) | 65 × 34 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size HDPE bottle: shampoo, conditioner, body wash, hand soap and general personal-care packaging. HDPE resists everyday chemicals and squeezes cleanly to the last drop.
SJE0080-260 is a 260 ml PE / HDPE bottle in the mid-format skincare range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for face creams, lotions, cleansers and mid-size skincare. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

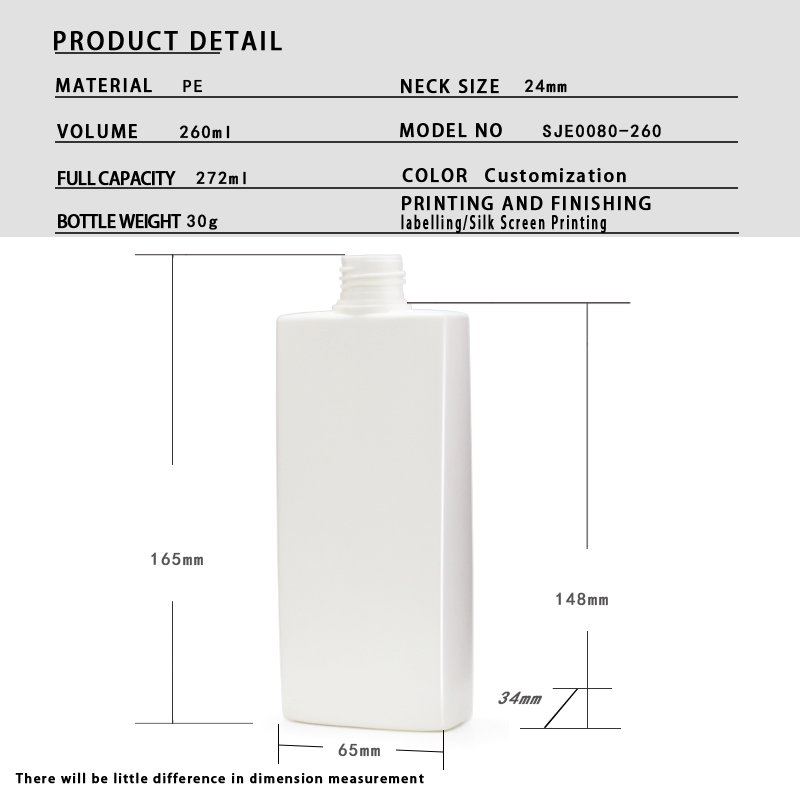

Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 260 ml ≈ 8.8 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 65 × 34 mm base (1.91 : 1 width-to-depth). Two parallel 65 mm faces carry front and back artwork, while the narrow 34 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.54 : 1 (165 mm tall, 65 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 260 ml stated capacity inside a 365 ml rectangular outline — 71 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 30 g body weight = 11.5 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 143 mm — from the base to the 148 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 65 mm flat face → artwork up to 57 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 57 × 143 mm (W × H) flat label on each face, or a wrap label over the 34 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 260 ml the Ø24 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 260 ml model (250 ml, 250 ml, 268 ml, 280 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0179-280 | 280 ml | 37 g | Ø24 mm | 135 mm | +20 ml larger · same neck |
| SJE1626-268 | 268 ml | 27 g | Ø24 mm | 183 mm | +8 ml larger · same neck |
| SJE0080-260 | 260 ml | 30 g | Ø24 mm | 165 mm | This model |
| SJE1893-250 | 250 ml | 31 g | Ø24 mm | 177 mm | 10 ml smaller · same neck |
| SJE1801-250 | 250 ml | 33 g | Ø24 mm | 142 mm | 10 ml smaller · same neck |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
