PE Cosmetic Bottle 120ml
Download the complete PE / HDPE bottle catalog PDF.

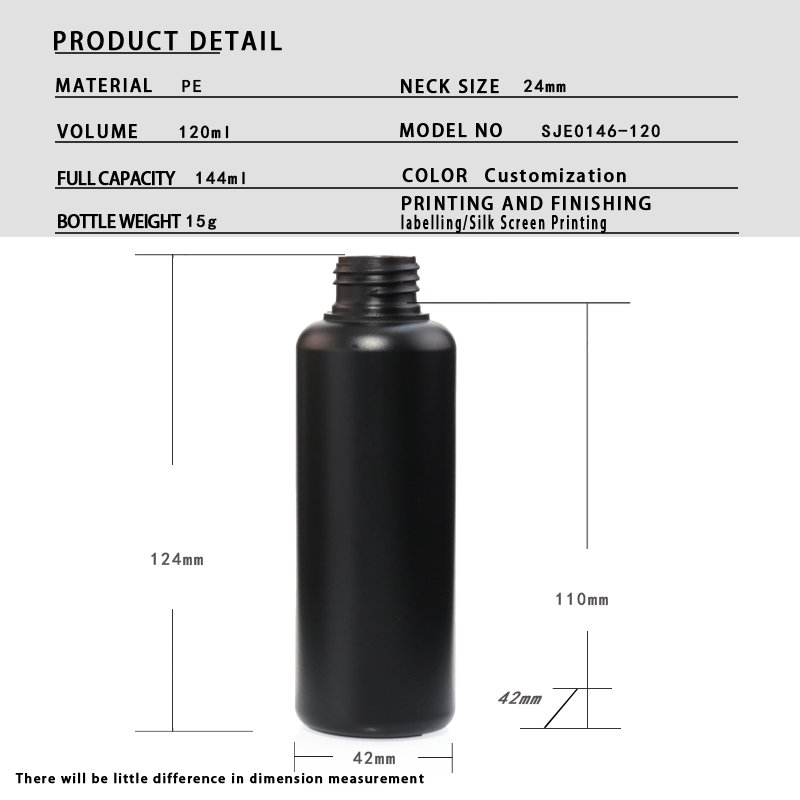

Full engineering parameters for SJE0146-120. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 120 ml (4.1 fl oz) |
| Overflow Capacity (brimful) | 144 ml (4.9 fl oz) |
| Bottle Weight | 15 g |
| Neck Finish | 24 mm |
| Total Height | 124 mm |
| Shoulder Height | 110 mm |
| Base (W × D) | 42 × 42 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.

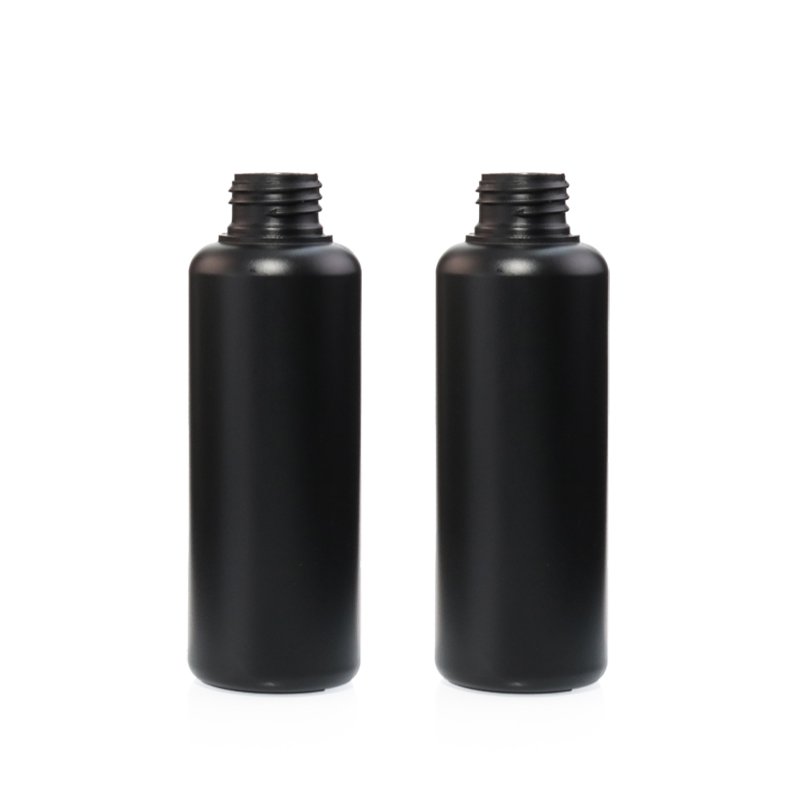

SJE0146-120 is a 120 ml PE / HDPE bottle in the daily face-care size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold cha so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 120 ml ≈ 4.1 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 42 mm diameter across the base, 124 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.95 : 1 (124 mm tall, 42 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 120 ml stated capacity inside a 219 ml rectangular outline — 55 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 15 g body weight = 12.5 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 105 mm — from the base to the 110 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 132 mm (π × 42 mm) — a wrap-around label up to 121 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 121 × 105 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 120 ml the Ø24 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 120 ml model (105 ml, 100 ml, 125 ml, 125 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0034-125 | 125 ml | 17 g | Ø18 mm | 134 mm | +5 ml larger |
| SJE0214-125 | 125 ml | 23 g | Ø28 mm | 107 mm | +5 ml larger |
| SJE0146-120 | 120 ml | 15 g | Ø24 mm | 124 mm | This model |
| SJE0133-105 | 105 ml | 20 g | Ø24 mm | 137 mm | 15 ml smaller · same neck |
| SJE1887-100 | 100 ml | 13 g | Ø20 mm | 92 mm | 20 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
