PE Cosmetic Bottle 200ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE0148-200. Nominal factory values — custom colors, printing and finishing available on all parameters below.

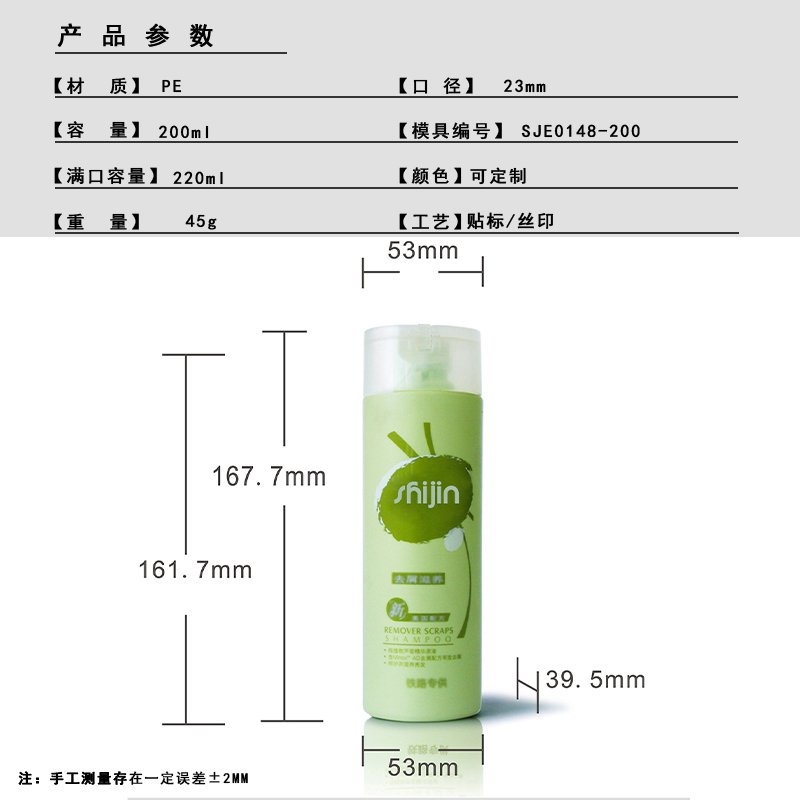

| Dimensions & Capacity | |
| Nominal Capacity | 200 ml (6.8 fl oz) |
| Overflow Capacity (brimful) | 220 ml (7.4 fl oz) |
| Bottle Weight | 45 g |
| Neck Finish | 23 mm |
| Total Height | 167.7 mm |
| Shoulder Height | 161.7 mm |
| Base (W × D) | 53 × 39.5 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |

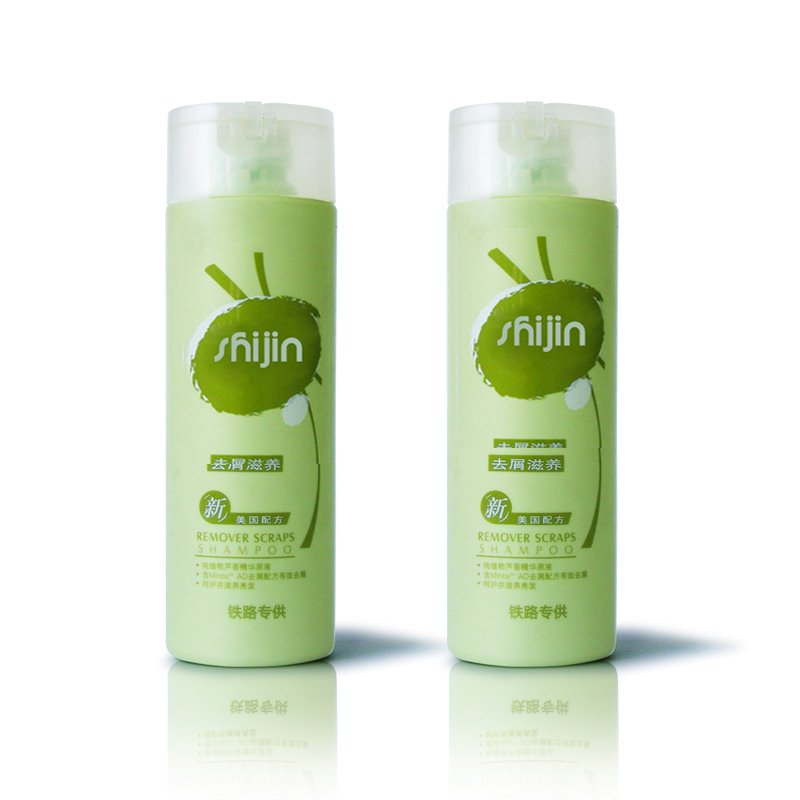

Typical applications for this mid-size HDPE bottle: shampoo, conditioner, body wash, hand soap and general personal-care packaging. HDPE resists everyday chemicals and squeezes cleanly to the last drop.
SJE0148-200 is a 200 ml PE / HDPE bottle in the daily face-care size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 23 mm neck is compatible with standard screw, pump or flip-top closure, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 200 ml ≈ 6.8 fl oz, Ø23 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Oval body — 53 × 40 mm base (1.34 : 1 width-to-depth). A softer cross-section that sits comfortably in the hand; artwork can run as a wrap or as two facing panels. |
| Height to width | 3.16 : 1 (168 mm tall, 53 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 200 ml stated capacity inside a 351 ml rectangular outline — 57 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 45 g body weight = 22.5 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Front panel width | 53 mm flat face → artwork up to 45 mm wide with a 4 mm safety margin each side. |
| Neck & closure | |
| Neck finish | Ø23 mm screw neck — quote the closure together with the bottle so the T-dimension is confirmed on the drawing. |
| Dosing note | At 200 ml the Ø23 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 200 ml model (190 ml, 180 ml, 220 ml, 230 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0224-230 | 230 ml | 17 g | Ø35 mm | 147 mm | +30 ml larger |
| SJE1800-220 | 220 ml | 32 g | Ø28 mm | 145 mm | +20 ml larger |
| SJE0148-200 | 200 ml | 45 g | Ø23 mm | 168 mm | This model |
| SJE1867-190 | 190 ml | 20 g | Ø24 mm | 159 mm | 10 ml smaller |
| SJE1629-180 | 180 ml | 22 g | Ø28 mm | 131 mm | 20 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
