PE Cosmetic Bottle 400ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE0167-400. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 400 ml (13.5 fl oz) |
| Bottle Weight | 38 g |
| Neck Finish | 24 mm |
| Total Height | 207 mm |
| Shoulder Height | 192 mm |
| Base (W × D) | 75 × 41 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 245 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 45 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size HDPE bottle: shampoo, conditioner, body wash, hand soap and general personal-care packaging. HDPE resists everyday chemicals and squeezes cleanly to the last drop.

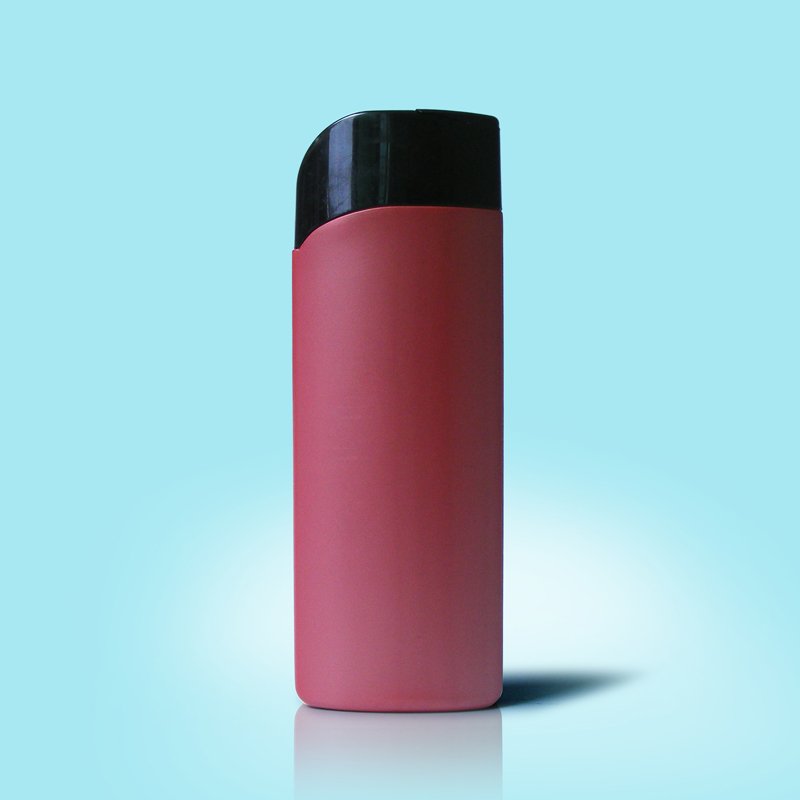

SJE0167-400 is a 400 ml PE / HDPE bottle in the body & hair-care size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for body lotions, shampoos, conditioners and shower gels. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 400 ml ≈ 13.5 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 75 × 41 mm base (1.83 : 1 width-to-depth). Two parallel 75 mm faces carry front and back artwork, while the narrow 41 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.76 : 1 (207 mm tall, 75 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 400 ml stated capacity inside a 637 ml rectangular outline — 63 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 38 g body weight = 9.5 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 187 mm — from the base to the 192 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 75 mm flat face → artwork up to 67 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 67 × 187 mm (W × H) flat label on each face, or a wrap label over the 41 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 400 ml the Ø24 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 400 ml model (380 ml, 370 ml, 420 ml, 420 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1689-420 | 420 ml | 66 g | Ø28 mm | 185 mm | +20 ml larger |
| SJE1814-420 | 420 ml | 46 g | Ø32 mm | 210 mm | +20 ml larger |
| SJE0167-400 | 400 ml | 38 g | Ø24 mm | 207 mm | This model |
| SJE1858-380 | 380 ml | 46 g | Ø28 mm | 141 mm | 20 ml smaller |
| SJE1752-370 | 370 ml | 42 g | Ø28 mm | 155 mm | 30 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
