PE Cosmetic Bottle 2000ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1659-2000. Nominal factory values — custom colors, printing and finishing available on all parameters below.

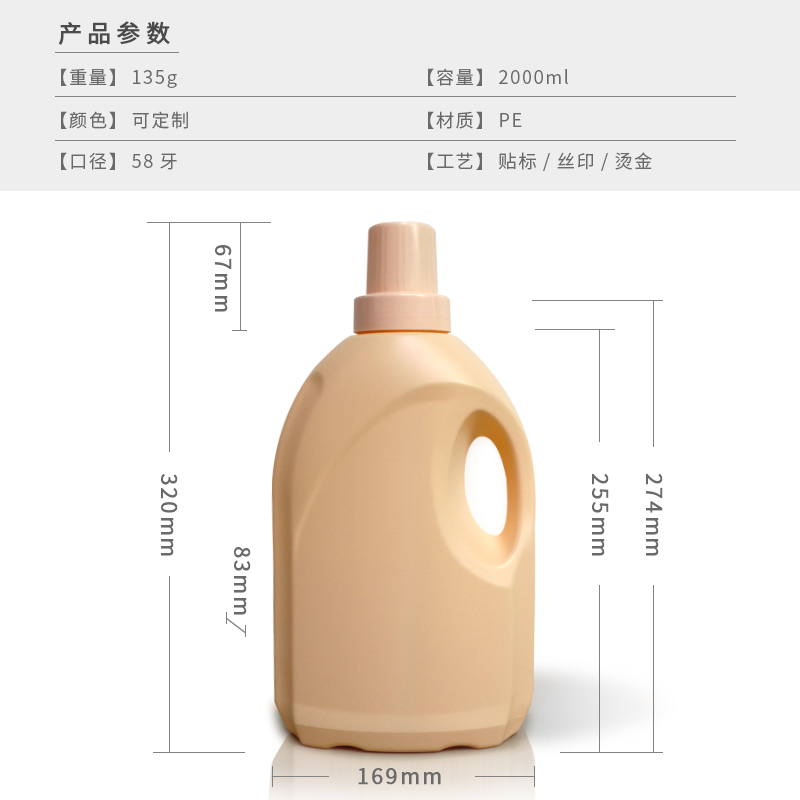

| Dimensions & Capacity | |
| Overflow Capacity (brimful) | 2000 ml (67.6 fl oz) |
| Bottle Weight | 135 g |
| Total Height | 320 mm |
| Shoulder Height | 274 mm |
| Base (W × D) | 169 × 83 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large HDPE bottle: fabric softener, laundry detergent, household cleaners and high-volume refills. HDPE's chemical resistance and durability make it the standard for household-care packaging.
SJE1659-2000 is a 2000 ml PE / HDPE bottle in the bulk & professional size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for bulk refill, salon and professional back-bar use. It works with standard screw, pump or flip-top closures to match your filling line.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 2,000 ml ≈ 67.6 fl oz). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 169 × 83 mm base (2.04 : 1 width-to-depth). Two parallel 169 mm faces carry front and back artwork, while the narrow 83 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.89 : 1 (320 mm tall, 169 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 2,000 ml stated capacity inside a 4,489 ml rectangular outline — 45 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 135 g body weight = 6.8 g per 100 ml. Lightweight range: lower resin cost per unit and cheaper freight at equal carton count. |
| Label & decoration zone | |
| Usable label height | Up to 269 mm — from the base to the 274 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 169 mm flat face → artwork up to 161 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 161 × 269 mm (W × H) flat label on each face, or a wrap label over the 83 mm sides for tamper evidence. |
Nearest PE / HDPE formats to this 2,000 ml model (1,877 ml, 1,872 ml, 3,000 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0196-3000 | 3,000 ml | — g | Ø— mm | — mm | +1,000 ml larger · same neck |
| SJE1659-2000 | 2,000 ml | 135 g | Ø— mm | 320 mm | This model |
| SJE1877-1877 | 1,877 ml | 61 g | Ø32 mm | 196 mm | 123 ml smaller |
| SJE1872-1872 | 1,872 ml | 20 g | Ø— mm | 231 mm | 128 ml smaller · same neck |
