PE Cosmetic Bottle 1100ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1666-1100. Nominal factory values — custom colors, printing and finishing available on all parameters below.

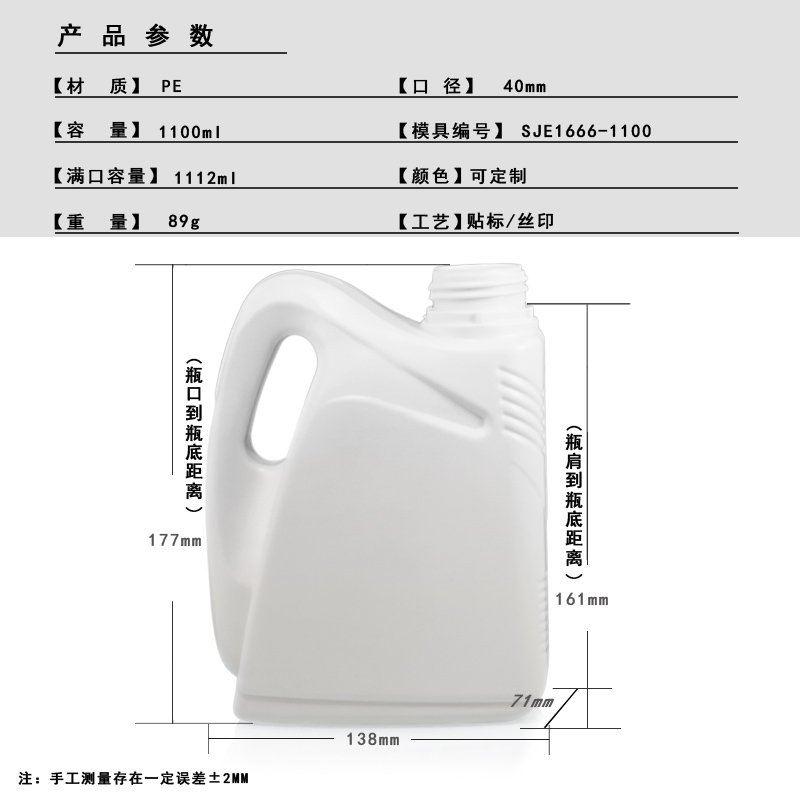

| Dimensions & Capacity | |
| Nominal Capacity | 1100 ml (37.2 fl oz) |
| Overflow Capacity (brimful) | 1112 ml (37.6 fl oz) |
| Bottle Weight | 89 g |
| Neck Finish | 40 mm |
| Total Height | 177 mm |
| Shoulder Height | 161 mm |
| Base (W × D) | 138 × 71 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large HDPE bottle: fabric softener, laundry detergent, household cleaners and high-volume refills. HDPE's chemical resistance and durability make it the standard for household-care packaging.
SJE1666-1100 is a 1100 ml PE / HDPE bottle in the bulk & professional size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for bulk refill, salon and professional back-bar use. The 40 mm neck is compatible with standard screw, pump or flip-top closure, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 1,100 ml ≈ 37.2 fl oz, Ø40 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 138 × 71 mm base (1.94 : 1 width-to-depth). Two parallel 138 mm faces carry front and back artwork, while the narrow 71 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.28 : 1 (177 mm tall, 138 mm wide). Low-profile, wide-footed format: the most stable of the three under high-speed filling and the easiest to stack. |
| Fill-to-outline ratio | 1,100 ml stated capacity inside a 1,734 ml rectangular outline — 63 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 89 g body weight = 8.1 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 156 mm — from the base to the 161 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 138 mm flat face → artwork up to 130 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 130 × 156 mm (W × H) flat label on each face, or a wrap label over the 71 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø40 mm screw neck — the 40/400 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | wide-mouth screw cap. |
| Dosing note | At 1,100 ml the Ø40 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 1,100 ml model (1,000 ml, 1,000 ml, 1,200 ml, 1,200 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1619-1200 | 1,200 ml | 81 g | Ø32 mm | 250 mm | +100 ml larger |
| SJE1680-1200 | 1,200 ml | 94 g | Ø42 mm | 245 mm | +100 ml larger |
| SJE1666-1100 | 1,100 ml | 89 g | Ø40 mm | 177 mm | This model |
| SJE1897-1000 | 1,000 ml | 80 g | Ø32 mm | 212 mm | 100 ml smaller |
| SJE1870-1000 | 1,000 ml | 59 g | Ø32 mm | 253 mm | 100 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
