PE Cosmetic Bottle 800ml
Download the complete PE / HDPE bottle catalog PDF.

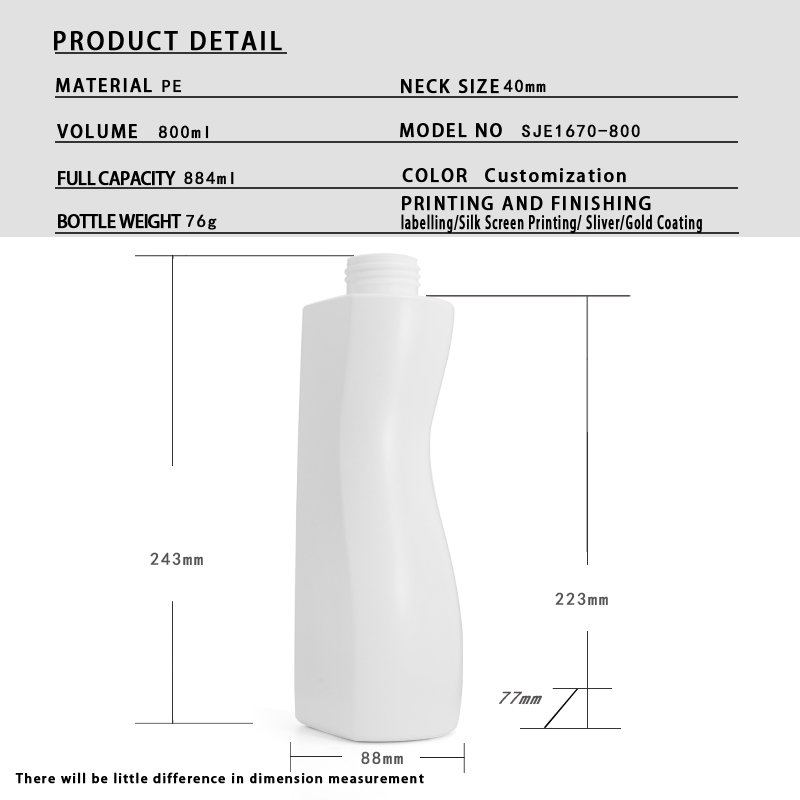

Full engineering parameters for SJE1670-800. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 800 ml (27.1 fl oz) |
| Bottle Weight | 76 g |
| Neck Finish | 40 mm |
| Total Height | 243 mm |
| Shoulder Height | 223 mm |
| Base (W × D) | 88 × 77 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large HDPE bottle: fabric softener, laundry detergent, household cleaners and high-volume refills. HDPE's chemical resistance and durability make it the standard for household-care packaging.

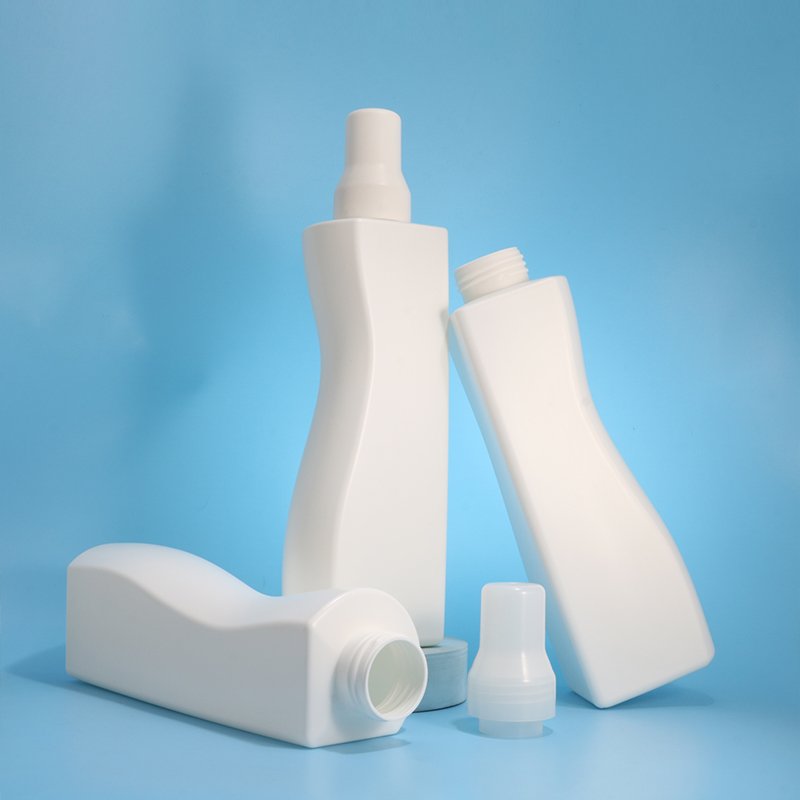

SJE1670-800 is a 800 ml PE / HDPE bottle in the family & refill size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for family-size body care, refill packs and value bundles. The 40 mm neck is compatible with standard screw, pump or flip-top closure, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 800 ml ≈ 27.1 fl oz, Ø40 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Oval body — 88 × 77 mm base (1.14 : 1 width-to-depth). A softer cross-section that sits comfortably in the hand; artwork can run as a wrap or as two facing panels. |
| Height to width | 2.76 : 1 (243 mm tall, 88 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 800 ml stated capacity inside a 1,647 ml rectangular outline — 49 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 76 g body weight = 9.5 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 218 mm — from the base to the 223 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 88 mm flat face → artwork up to 80 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 80 × 218 mm (W × H) flat label on each face, or a wrap label over the 77 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø40 mm screw neck — the 40/400 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | wide-mouth screw cap. |
| Dosing note | At 800 ml the Ø40 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 800 ml model (750 ml, 750 ml, 850 ml, 900 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0045-900 | 900 ml | 68 g | Ø32 mm | 221 mm | +100 ml larger |
| SJE1707-850 | 850 ml | 74 g | Ø40 mm | 173 mm | +50 ml larger · same neck |
| SJE1670-800 | 800 ml | 76 g | Ø40 mm | 243 mm | This model |
| SJE1890-750 | 750 ml | 71 g | Ø20 mm | 253 mm | 50 ml smaller |
| SJE1810-750 | 750 ml | 62 g | Ø32 mm | 228 mm | 50 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
