PE Cosmetic Bottle 50ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1714-50. Nominal factory values — custom colors, printing and finishing available on all parameters below.

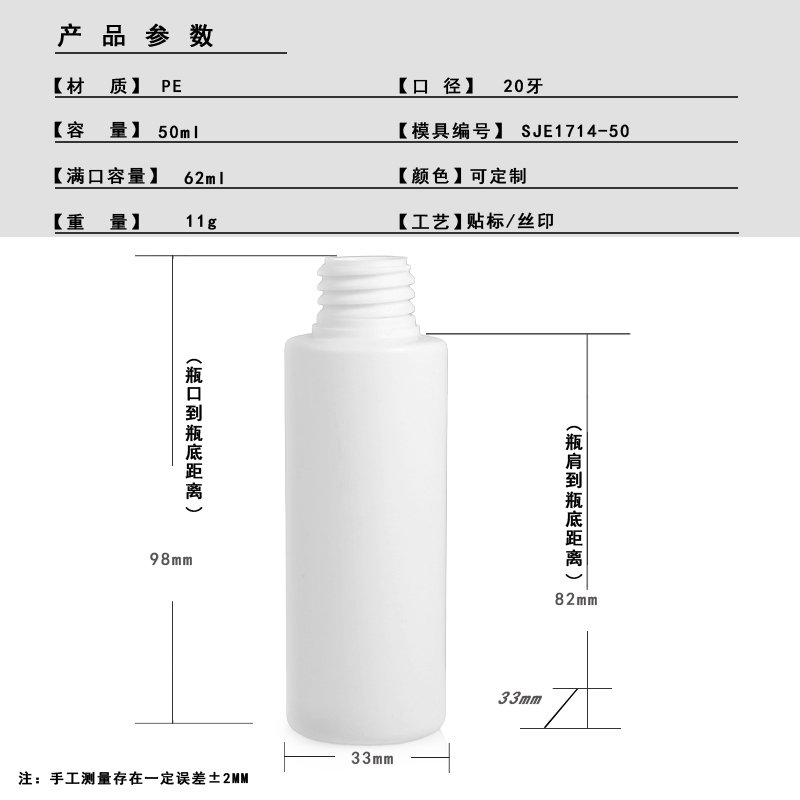

| Dimensions & Capacity | |
| Nominal Capacity | 50 ml (1.7 fl oz) |
| Overflow Capacity (brimful) | 62 ml (2.1 fl oz) |
| Bottle Weight | 11 g |
| Neck Finish | 20/410 |
| Total Height | 98 mm |
| Shoulder Height | 82 mm |
| Base (W × D) | 33 × 33 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 576 pcs / carton |
| Carton Dimensions (L×W×H) | 55 × 42 × 30.5 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.

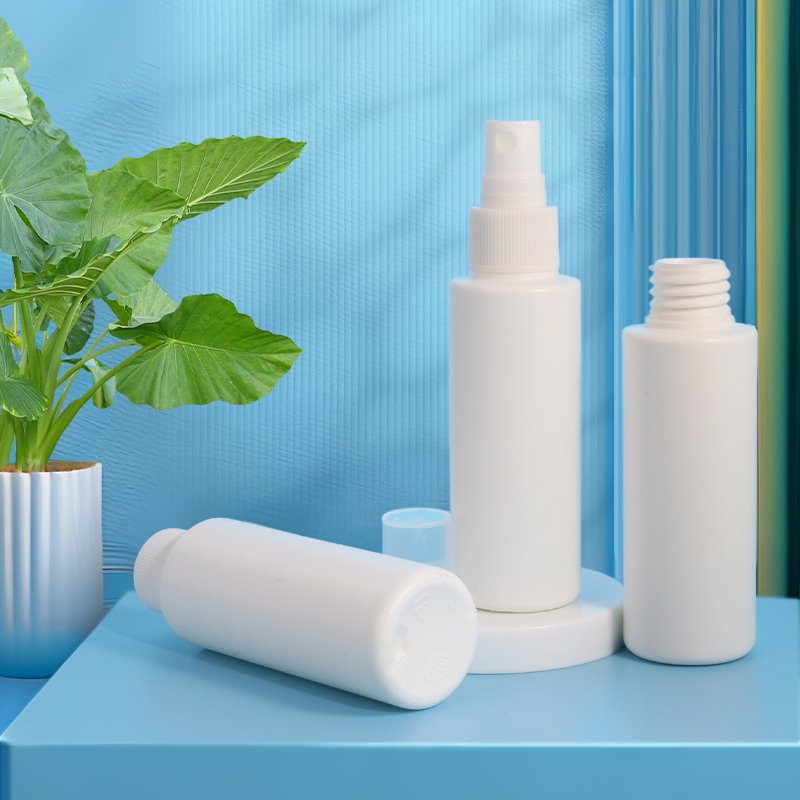

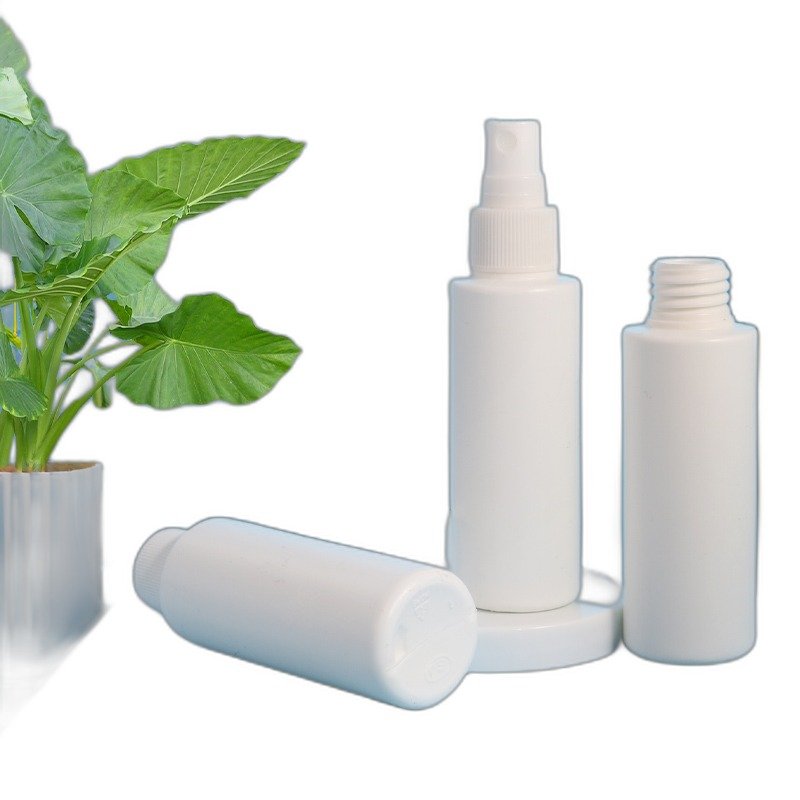

SJE1714-50 is a 50 ml PE / HDPE bottle in the travel & sample size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for travel kits, hotel amenities, free samples and single-use sachets. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 50 ml ≈ 1.7 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 33 mm diameter across the base, 98 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.97 : 1 (98 mm tall, 33 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 50 ml stated capacity inside a 107 ml rectangular outline — 47 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 11 g body weight = 22.0 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 77 mm — from the base to the 82 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 104 mm (π × 33 mm) — a wrap-around label up to 95 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 95 × 77 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 50 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 50 ml model (45 ml, 30 ml, 60 ml, 60 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0223-60 | 60 ml | 10 g | Ø20 mm | 88 mm | +10 ml larger · same neck |
| SJE1760-60 | 60 ml | 19 g | Ø20 mm | 70 mm | +10 ml larger · same neck |
| SJE1714-50 | 50 ml | 11 g | Ø20 mm | 98 mm | This model |
| SJE1895-45 | 45 ml | 9 g | Ø20 mm | 71 mm | 5 ml smaller · same neck |
| SJE1837-30 | 30 ml | 8 g | Ø20 mm | 89 mm | 20 ml smaller · same neck |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
