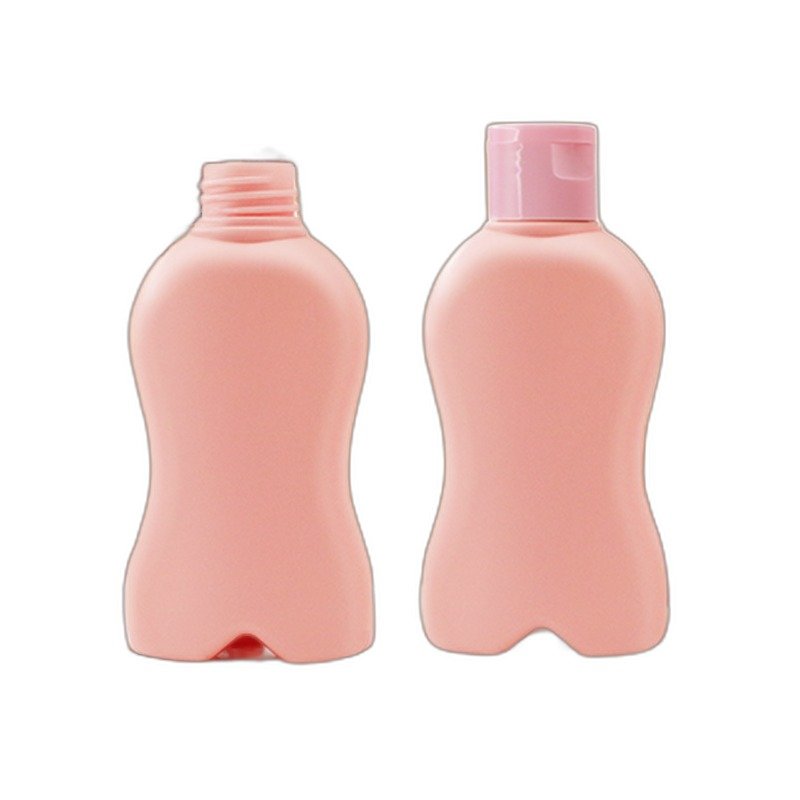

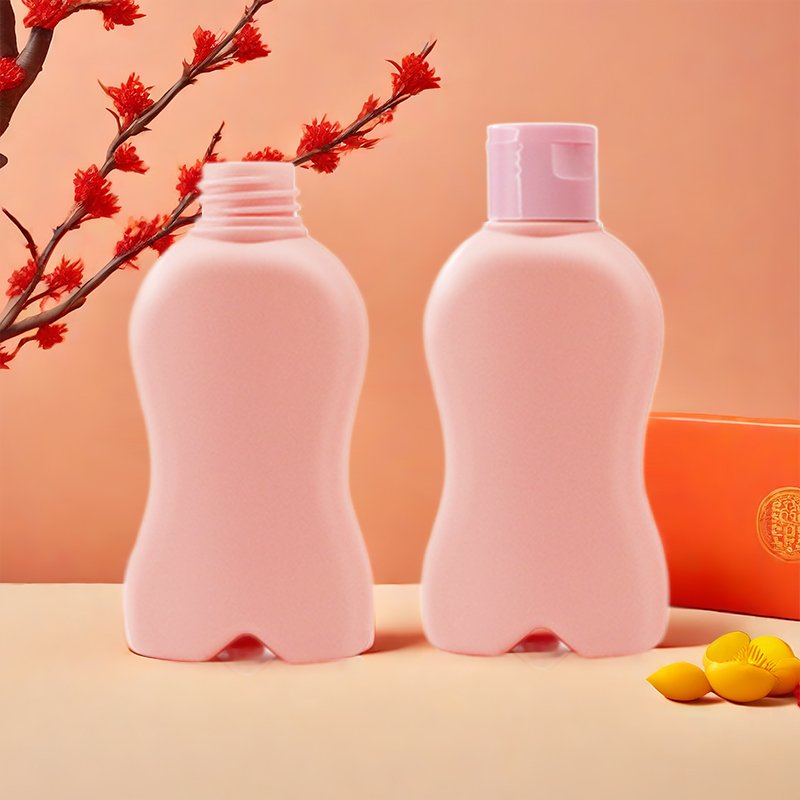

PE Cosmetic Bottle 90ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1718-90. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 90 ml (3.0 fl oz) |
| Overflow Capacity (brimful) | 120 ml (4.1 fl oz) |
| Bottle Weight | 16 g |
| Neck Finish | 20/410 |
| Total Height | 106 mm |
| Shoulder Height | 98 mm |
| Base (W × D) | 63 × 30 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 288 pcs / carton |
| Carton Dimensions (L×W×H) | 55 × 40 × 38 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.
SJE1718-90 is a 90 ml PE / HDPE bottle in the travel & trial size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for travel-size toiletry, trial kits, hotel amenities and promotional samples. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

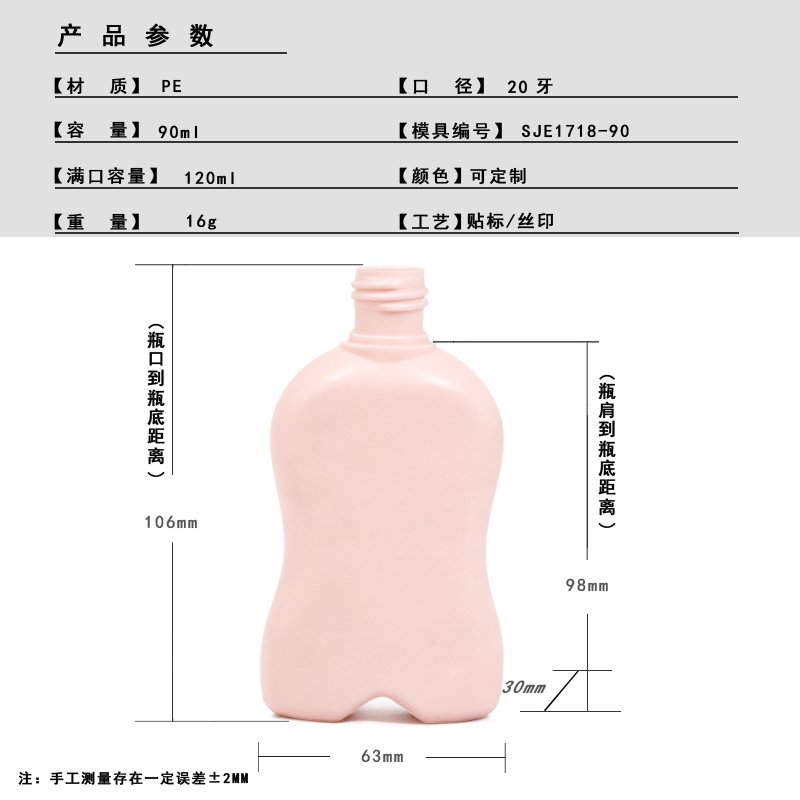

Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 90 ml ≈ 3.0 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 63 × 30 mm base (2.10 : 1 width-to-depth). Two parallel 63 mm faces carry front and back artwork, while the narrow 30 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.68 : 1 (106 mm tall, 63 mm wide). Low-profile, wide-footed format: the most stable of the three under high-speed filling and the easiest to stack. |
| Fill-to-outline ratio | 90 ml stated capacity inside a 200 ml rectangular outline — 45 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 16 g body weight = 17.8 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 93 mm — from the base to the 98 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 63 mm flat face → artwork up to 55 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 55 × 93 mm (W × H) flat label on each face, or a wrap label over the 30 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 90 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 90 ml model (85 ml, 85 ml, 100 ml, 100 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0156-100 | 100 ml | 16 g | Ø24 mm | 127 mm | +10 ml larger |
| SJE0178-100 | 100 ml | 16 g | Ø20 mm | 126 mm | +10 ml larger · same neck |
| SJE1718-90 | 90 ml | 16 g | Ø20 mm | 106 mm | This model |
| SJE1902-85 | 85 ml | 21 g | Ø23 mm | 96 mm | 5 ml smaller |
| SJE1725-85 | 85 ml | 12 g | Ø28 mm | 108 mm | 5 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
