PE Cosmetic Bottle 400ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1772-400. Nominal factory values — custom colors, printing and finishing available on all parameters below.

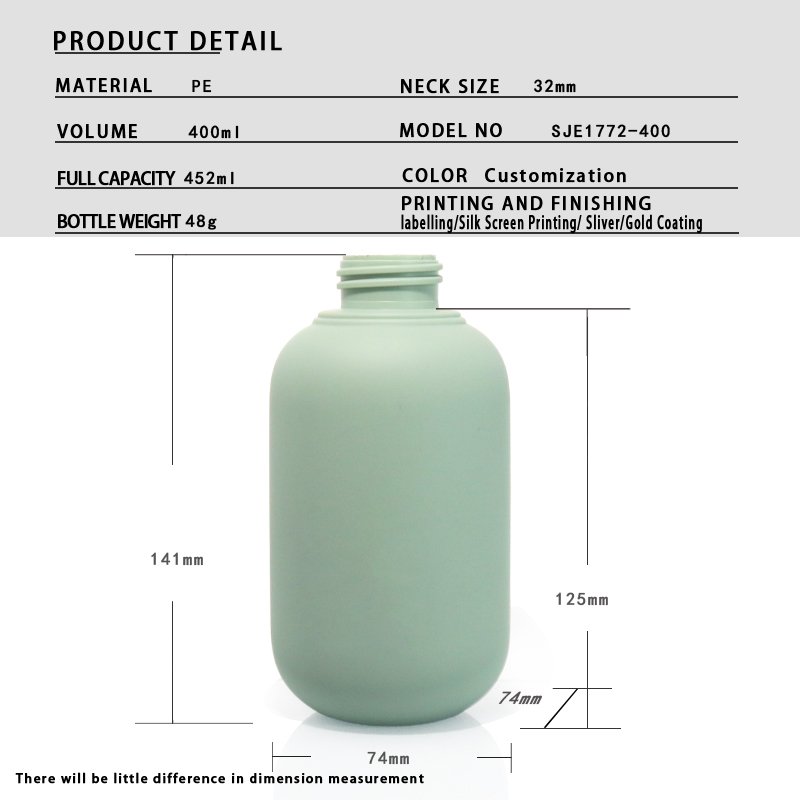

| Dimensions & Capacity | |
| Nominal Capacity | 400 ml (13.5 fl oz) |
| Overflow Capacity (brimful) | 452 ml (15.3 fl oz) |
| Bottle Weight | 48 g |
| Neck Finish | 32 mm |
| Total Height | 141 mm |
| Shoulder Height | 125 mm |
| Base (W × D) | 74 × 74 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 180 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 45 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size HDPE bottle: shampoo, conditioner, body wash, hand soap and general personal-care packaging. HDPE resists everyday chemicals and squeezes cleanly to the last drop.
SJE1772-400 is a 400 ml PE / HDPE bottle in the body & hair-care size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for body lotions, shampoos, conditioners and shower gels. The 32 mm neck is compatible with standard screw, pump or flip-top closure, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 400 ml ≈ 13.5 fl oz, Ø32 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 74 mm diameter across the base, 141 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 1.91 : 1 (141 mm tall, 74 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 400 ml stated capacity inside a 772 ml rectangular outline — 52 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 48 g body weight = 12.0 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 120 mm — from the base to the 125 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 232 mm (π × 74 mm) — a wrap-around label up to 214 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 214 × 120 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø32 mm screw neck — the 32/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | high-output lotion pump or wide flip-top cap. |
| Dosing note | At 400 ml the Ø32 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 400 ml model (380 ml, 370 ml, 420 ml, 420 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1689-420 | 420 ml | 66 g | Ø28 mm | 185 mm | +20 ml larger |
| SJE1814-420 | 420 ml | 46 g | Ø32 mm | 210 mm | +20 ml larger · same neck |
| SJE1772-400 | 400 ml | 48 g | Ø32 mm | 141 mm | This model |
| SJE1858-380 | 380 ml | 46 g | Ø28 mm | 141 mm | 20 ml smaller |
| SJE1752-370 | 370 ml | 42 g | Ø28 mm | 155 mm | 30 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
