PE Cosmetic Bottle 1000ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1796-1000. Nominal factory values — custom colors, printing and finishing available on all parameters below.

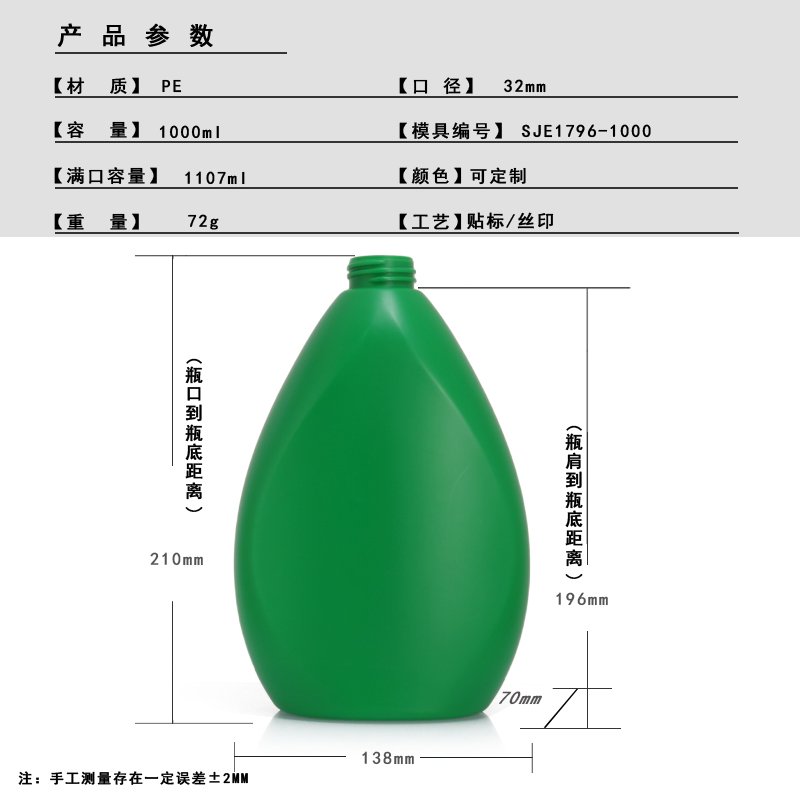

| Dimensions & Capacity | |
| Nominal Capacity | 1000 ml (33.8 fl oz) |
| Overflow Capacity (brimful) | 1107 ml (37.4 fl oz) |
| Bottle Weight | 72 g |
| Neck Finish | 32 mm |
| Total Height | 210 mm |
| Shoulder Height | 196 mm |
| Base (W × D) | 138 × 70 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large HDPE bottle: fabric softener, laundry detergent, household cleaners and high-volume refills. HDPE's chemical resistance and durability make it the standard for household-care packaging.

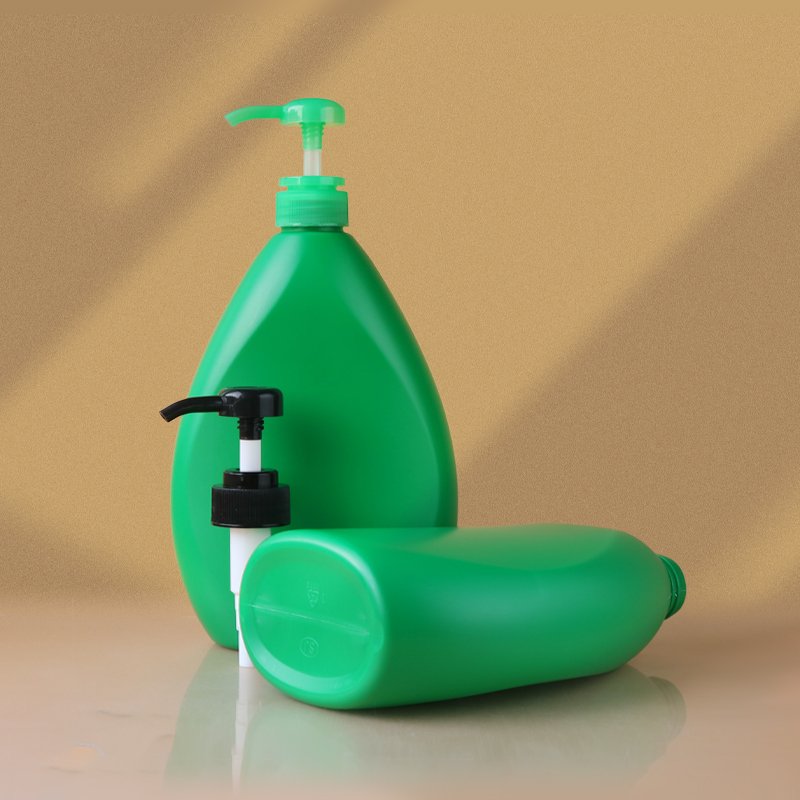

SJE1796-1000 is a 1000 ml PE / HDPE bottle in the family & refill size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for family-size body care, refill packs and value bundles. The 32 mm neck is compatible with standard screw, pump or flip-top closure, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 1,000 ml ≈ 33.8 fl oz, Ø32 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 138 × 70 mm base (1.97 : 1 width-to-depth). Two parallel 138 mm faces carry front and back artwork, while the narrow 70 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.52 : 1 (210 mm tall, 138 mm wide). Low-profile, wide-footed format: the most stable of the three under high-speed filling and the easiest to stack. |
| Fill-to-outline ratio | 1,000 ml stated capacity inside a 2,029 ml rectangular outline — 49 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 72 g body weight = 7.2 g per 100 ml. Lightweight range: lower resin cost per unit and cheaper freight at equal carton count. |
| Label & decoration zone | |
| Usable label height | Up to 191 mm — from the base to the 196 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 138 mm flat face → artwork up to 130 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 130 × 191 mm (W × H) flat label on each face, or a wrap label over the 70 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø32 mm screw neck — the 32/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | high-output lotion pump or wide flip-top cap. |
| Dosing note | At 1,000 ml the Ø32 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 1,000 ml model (900 ml, 900 ml, 1,100 ml, 1,100 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1617-1100 | 1,100 ml | 77 g | Ø32 mm | 228 mm | +100 ml larger · same neck |
| SJE1666-1100 | 1,100 ml | 89 g | Ø40 mm | 177 mm | +100 ml larger |
| SJE1796-1000 | 1,000 ml | 72 g | Ø32 mm | 210 mm | This model |
| SJE0169-900 | 900 ml | 68 g | Ø28 mm | 251 mm | 100 ml smaller |
| SJE0066-900 | 900 ml | 87 g | Ø32 mm | 229 mm | 100 ml smaller · same neck |
