PE Cosmetic Bottle 505ml
Download the complete PE / HDPE bottle catalog PDF.

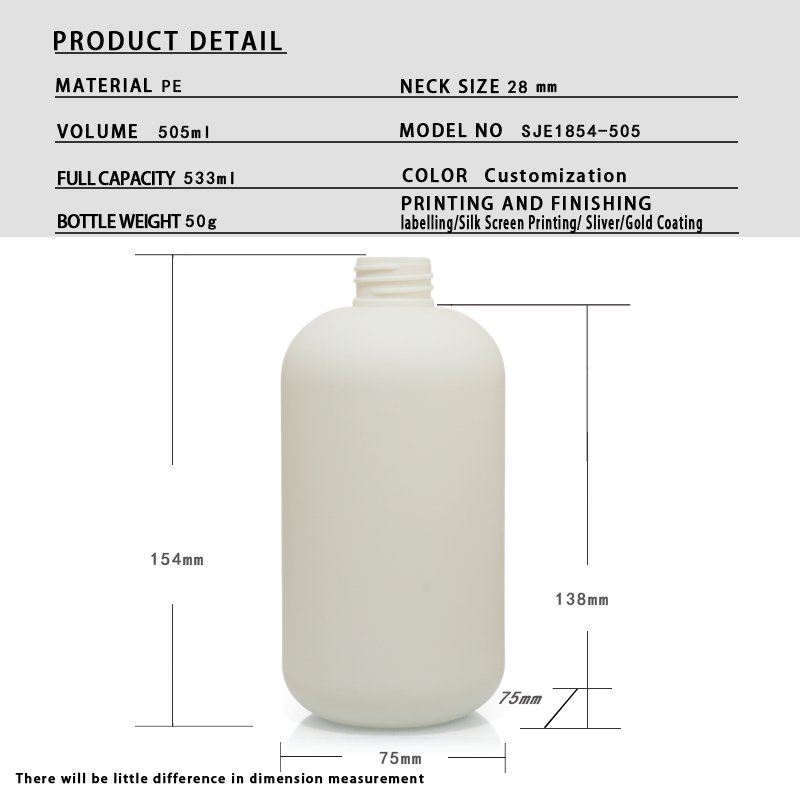

Full engineering parameters for SJE1854-505. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 505 ml (17.1 fl oz) |
| Bottle Weight | 50 g |
| Neck Finish | 28 mm |
| Total Height | 154 mm |
| Shoulder Height | 138 mm |
| Base (W × D) | 75 × 75 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 189 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 48 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large HDPE bottle: fabric softener, laundry detergent, household cleaners and high-volume refills. HDPE's chemical resistance and durability make it the standard for household-care packaging.
SJE1854-505 is a 505 ml PE / HDPE bottle in the family & refill size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for family-size body care, refill packs and value bundles. The 28 mm neck is compatible with a 28/410 lotion pump, trigger or screw cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 28/410 lotion pump, trigger or screw cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 505 ml ≈ 17.1 fl oz, Ø28 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 75 mm diameter across the base, 154 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.05 : 1 (154 mm tall, 75 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 505 ml stated capacity inside a 866 ml rectangular outline — 58 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 50 g body weight = 9.9 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 133 mm — from the base to the 138 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 236 mm (π × 75 mm) — a wrap-around label up to 217 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 217 × 133 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø28 mm screw neck — the 28/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 505 ml the Ø28 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 505 ml model (500 ml, 500 ml, 525 ml, 530 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1911-530 | 530 ml | 60 g | Ø32 mm | 226 mm | +25 ml larger |
| SJE1640-525 | 525 ml | 54 g | Ø32 mm | 208 mm | +20 ml larger |
| SJE1854-505 | 505 ml | 50 g | Ø28 mm | 154 mm | This model |
| SJE1910-500 | 500 ml | 57 g | Ø28 mm | 180 mm | 5 ml smaller · same neck |
| SJE1907-500 | 500 ml | 51 g | Ø32 mm | 209 mm | 5 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
