PE Cosmetic Bottle 200ml
Download the complete PE / HDPE bottle catalog PDF.

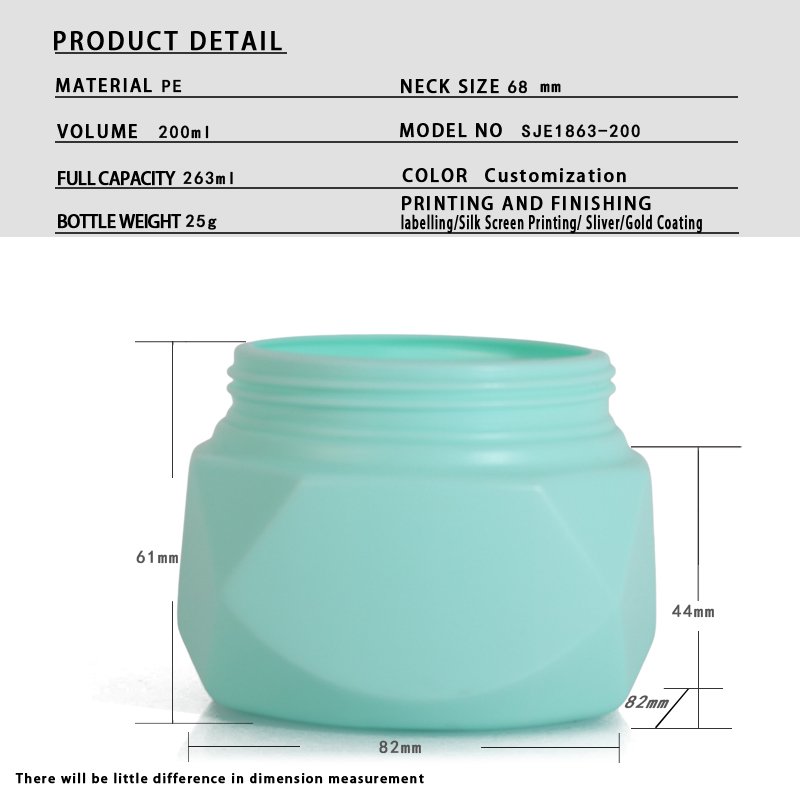

Full engineering parameters for SJE1863-200. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 200 ml (6.8 fl oz) |
| Bottle Weight | 25 g |
| Total Height | 61 mm |
| Shoulder Height | 44 mm |
| Base (W × D) | 82 × 82 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 168 pcs / carton |
| Carton Dimensions (L×W×H) | 59 × 33 × 38.5 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size HDPE bottle: shampoo, conditioner, body wash, hand soap and general personal-care packaging. HDPE resists everyday chemicals and squeezes cleanly to the last drop.

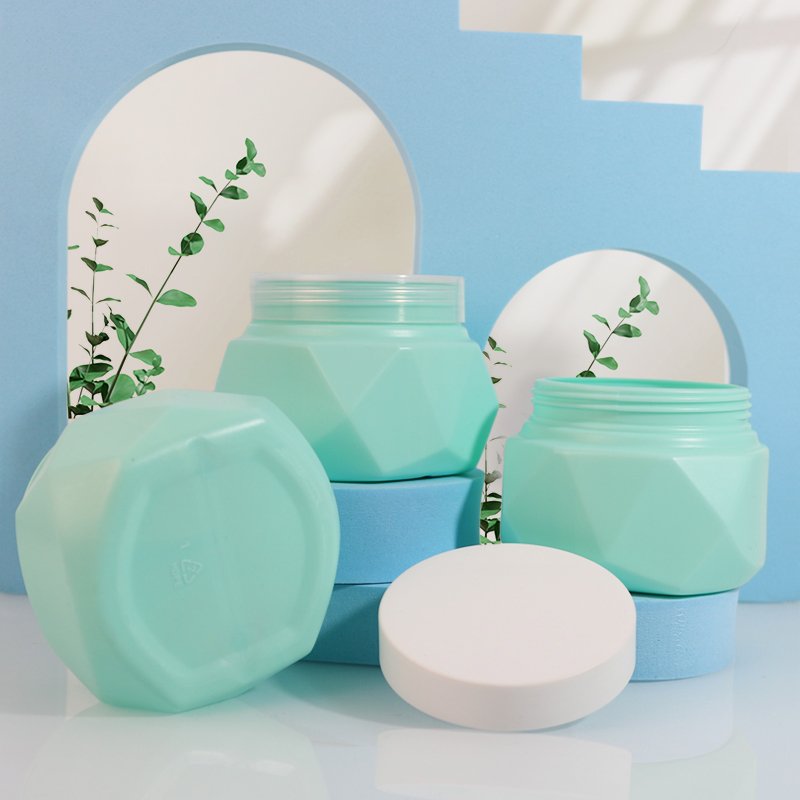

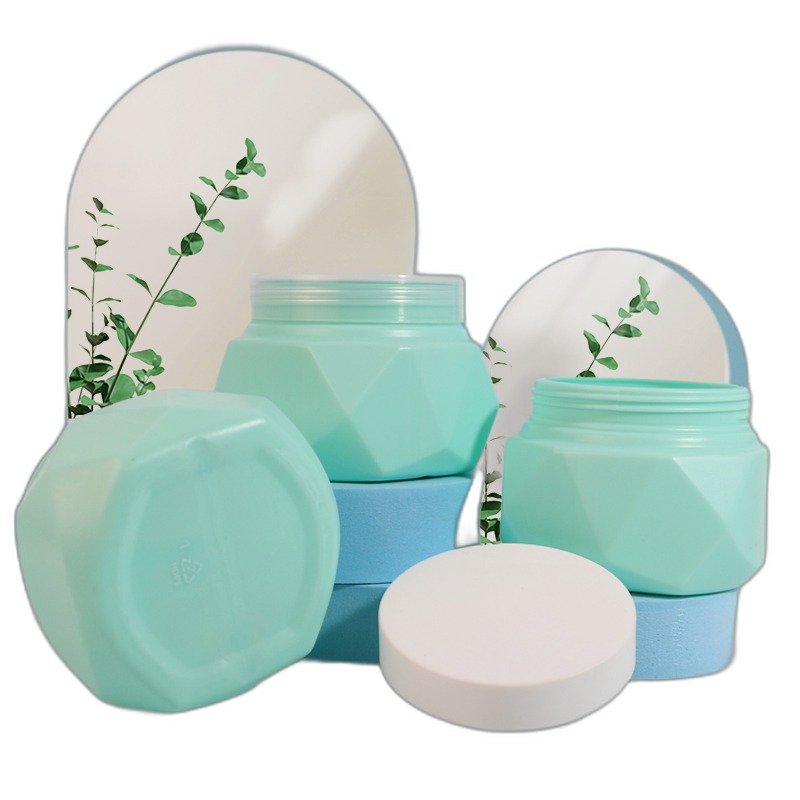

SJE1863-200 is a 200 ml PE / HDPE bottle in the daily face-care size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for facial serums, essences, toners and daily moisturizers. It works with standard screw, pump or flip-top closures to match your filling line.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 200 ml ≈ 6.8 fl oz). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 82 mm diameter across the base, 61 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 0.74 : 1 (61 mm tall, 82 mm wide). Low-profile, wide-footed format: the most stable of the three under high-speed filling and the easiest to stack. |
| Fill-to-outline ratio | 200 ml stated capacity inside a 410 ml rectangular outline — 49 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 25 g body weight = 12.5 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 39 mm — from the base to the 44 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 258 mm (π × 82 mm) — a wrap-around label up to 237 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 237 × 39 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
Nearest PE / HDPE formats to this 200 ml model (190 ml, 180 ml, 220 ml, 230 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0224-230 | 230 ml | 17 g | Ø35 mm | 147 mm | +30 ml larger |
| SJE1800-220 | 220 ml | 32 g | Ø28 mm | 145 mm | +20 ml larger |
| SJE1863-200 | 200 ml | 25 g | Ø— mm | 61 mm | This model |
| SJE1867-190 | 190 ml | 20 g | Ø24 mm | 159 mm | 10 ml smaller |
| SJE1629-180 | 180 ml | 22 g | Ø28 mm | 131 mm | 20 ml smaller |
