PE Cosmetic Bottle 240ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1888-240. Nominal factory values — custom colors, printing and finishing available on all parameters below.

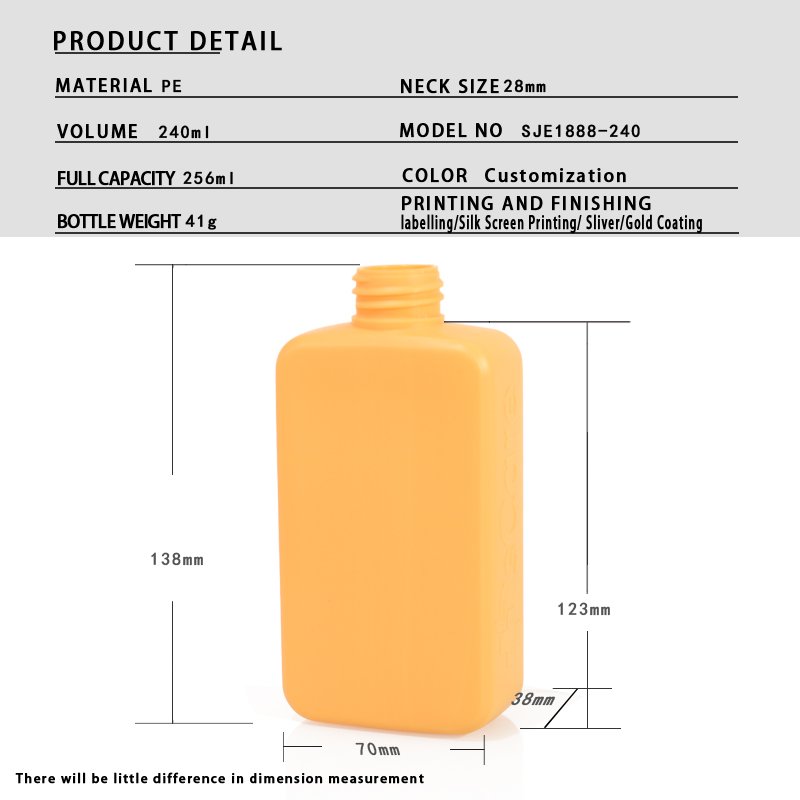

| Dimensions & Capacity | |
| Nominal Capacity | 240 ml (8.1 fl oz) |
| Bottle Weight | 41 g |
| Neck Finish | 28 mm |
| Total Height | 138 mm |
| Shoulder Height | 123 mm |
| Base (W × D) | 70 × 38 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 420 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 45 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size HDPE bottle: shampoo, conditioner, body wash, hand soap and general personal-care packaging. HDPE resists everyday chemicals and squeezes cleanly to the last drop.

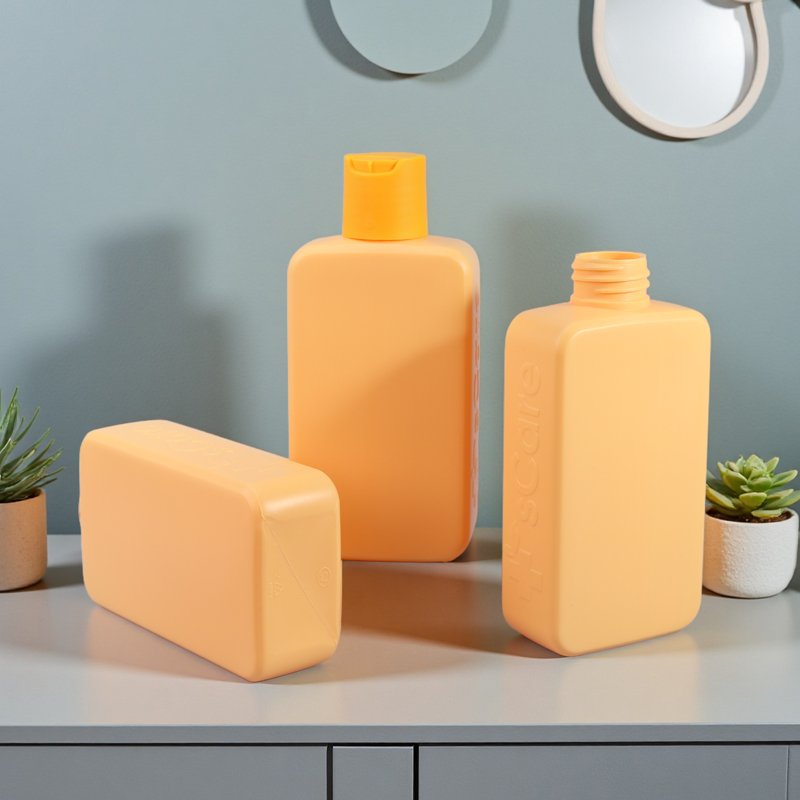

SJE1888-240 is a 240 ml PE / HDPE bottle in the mid-format skincare range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for face creams, lotions, cleansers and mid-size skincare. The 28 mm neck is compatible with a 28/410 lotion pump, trigger or screw cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 28/410 lotion pump, trigger or screw cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 240 ml ≈ 8.1 fl oz, Ø28 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 70 × 38 mm base (1.84 : 1 width-to-depth). Two parallel 70 mm faces carry front and back artwork, while the narrow 38 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.97 : 1 (138 mm tall, 70 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 240 ml stated capacity inside a 367 ml rectangular outline — 65 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 41 g body weight = 17.1 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 118 mm — from the base to the 123 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 70 mm flat face → artwork up to 62 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 62 × 118 mm (W × H) flat label on each face, or a wrap label over the 38 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø28 mm screw neck — the 28/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 240 ml the Ø28 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 240 ml model (235 ml, 230 ml, 245 ml, 246 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1851-246 | 246 ml | 27 g | Ø24 mm | 185 mm | +6 ml larger |
| SJE1729-245 | 245 ml | 26 g | Ø28 mm | 176 mm | +5 ml larger · same neck |
| SJE1888-240 | 240 ml | 41 g | Ø28 mm | 138 mm | This model |
| SJE0013-235 | 235 ml | 23 g | Ø28 mm | 180 mm | 5 ml smaller · same neck |
| SJE1885-230 | 230 ml | 34 g | Ø24 mm | 124 mm | 10 ml smaller |
