SJE1890-750

PE Cosmetic Bottle 750ml

SJE1890-750

PE Cosmetic Bottle 750ml
PE / HDPE 750 ml
HDPE bottle for large-format body wash and pro sizes, nominal 750 ml, 253 mm tall, 98 x 48 mm base, 71 g empty, 20 mm neck. Existing mold — no tooling; MOQ 5,000 per colour.

Specifications

SKUSJE1890-750
MaterialPE / HDPE
Capacity750 ml
Weight71 g
Neck Size20 mm
Total Height253 mm
Shoulder Height236 mm
Base Width98 mm
Base Depth48 mm
MOQ5,000 units
Lead Time15–25 days
CertificationISO 9001 / FDA / SGS
Request Quote →

📦 Download Catalog

Download the complete PE / HDPE bottle catalog PDF.

PE Below 100ml PE 100-200ml PE Above 1000ml

Technical Specifications

Full engineering parameters for SJE1890-750. Nominal factory values — custom colors, printing and finishing available on all parameters below.

Dimensions & Capacity
Nominal Capacity750 ml (25.4 fl oz)
Bottle Weight71 g
Neck Finish20 mm
Total Height253 mm
Shoulder Height236 mm
Base (W × D)98 × 48 mm
Material & Compliance
MaterialPE/HDPE
Resin GradeFood-contact, virgin (non-recycled)
CertificationsISO 9001 / FDA / SGS
RecyclableYes
Packing & Order Info
Carton PackConfirmed per order — contact us for exact carton specs
MOQ5,000 units
Lead Time15–25 days

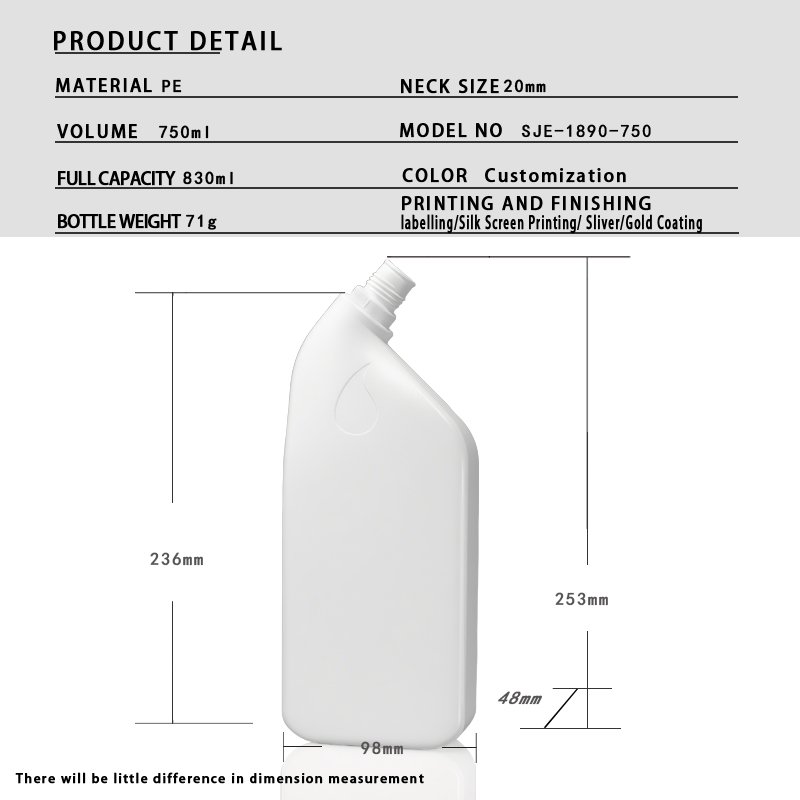

Technical Drawing

SJE1890-750 technical dimension drawing
Dimensional drawing of SJE1890-750 — all measurements in millimetres (nominal factory dimensions). For detailed tolerance specs, contact us.

Typical Applications

Typical applications for this large HDPE bottle: fabric softener, laundry detergent, household cleaners and high-volume refills. HDPE's chemical resistance and durability make it the standard for household-care packaging.

Recommended For

SJE1890-750 is a 750 ml PE / HDPE bottle in the family & refill size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for family-size body care, refill packs and value bundles. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it adapts to pump, spray or screw formats so it adapts to pump, spray or screw formats without mold changes.

Closure & Finishing

For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

Dimensions in working terms

SJE1890-750 is 253 mm tall on a 98 x 48 mm base, so the height is 2.58 times the widest base dimension and the footprint is 47.0 cm².

Total height253 mm
Base (W x D)98 x 48 mm
Footprint47.0 cm²
Height to widest base2.58 : 1
Average content per mm2.96 ml
Empty weight per 100 mm28.06 g
Empty weight per litre held94.7 g

Closest alternative we already mould

SJE1650-750 is the closest thing we mould to SJE1890-750 at 750 ml: 10 mm shorter; a 104 x 52 mm base against 98 x 48 mm here; 3 g lighter; a 32/410 neck where this one is 20 mm. Moving between the two needs no new tooling.

SKUSJE1650-750
Capacity750 ml (25.4 fl oz)
Height243 mm
Base104 × 52 mm
Neck32/410
Weight68 g

Batch yield at a 90% fill line

Stated capacity on SJE1890-750 is 750 ml, inside a body 253 mm tall. Holding the filler at a 90% line puts 675 ml in every unit, so a 500 L batch fills 740 of them.

Batch of product750 ml units at 90%Resin for those units
500 L74052.5 kg
1,000 L1,481105.2 kg
5,000 L7,407525.9 kg

Order tiers in real numbers

5,000 units of SJE1890-750 is 3,750 L of finished product, and 100,000 units is 75,000 L, which takes 7,100 kg of resin at 71 g a bottle. MOQ is per colour rather than per SKU. 253 mm and 750 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.

Frequently Asked Questions

Is this PE/HDPE bottle made from food-contact, food-grade material?▼
Yes. ShiJin Package holds a domestic food-production license, and bottles in this range are made from food-contact, virgin (non-recycled) resin — the same material standard as food-contact packaging. Our core production is cosmetic, personal-care and household packaging; the food-contact grade is a material-safety guarantee, not a food-bottle product line.
Can I get this 750ml PE/HDPE bottle with custom color and logo?▼
Yes. 750ml PE/HDPE bottles accept Pantone color matching, silk-screen, hot-stamp or UV printing, labeling, and soft-touch/frosted/metallic finishing. Most projects reuse our existing mold library, so no new tooling cost.
Do you offer samples of SJE1890-750 before bulk ordering?▼
Yes - stock sje1890-750 samples are free (you cover freight). Customized samples with your color or logo carry a small setup fee, refunded on orders above 10,000 units.

Engineering Notes — SJE1890-750

Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 750 ml ≈ 25.4 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.

Form, Fill & Label Profile

Body geometry
Body shapeFlat-oval body — 98 × 48 mm base (2.04 : 1 width-to-depth). Two parallel 98 mm faces carry front and back artwork, while the narrow 48 mm sides suit barcode, batch or ingredient panels.
Height to width2.58 : 1 (253 mm tall, 98 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small.
Fill-to-outline ratio750 ml stated capacity inside a 1,190 ml rectangular outline — 63 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity.
Unit weight71 g body weight = 9.5 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost.
Label & decoration zone
Usable label heightUp to 231 mm — from the base to the 236 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option.
Front panel width98 mm flat face → artwork up to 90 mm wide with a 4 mm safety margin each side.
Recommended maximum label size≈ 90 × 231 mm (W × H) flat label on each face, or a wrap label over the 48 mm sides for tamper evidence.
Neck & closure
Neck finishØ20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide.
Dispensing optionsfine-mist sprayer, treatment pump or disc-top cap.
Dosing noteAt 750 ml the Ø20 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it.

Same-Family Options at a Glance

Nearest PE / HDPE formats to this 750 ml model (730 ml, 700 ml, 800 ml, 800 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.

SKUCapacityWeightNeckHeightDifference
SJE1670-800800 ml76 gØ40 mm243 mm+50 ml larger
SJE1759-800800 ml75 gØ32 mm216 mm+50 ml larger
SJE1890-750750 ml71 gØ20 mm253 mmThis model
SJE1812-730730 ml65 gØ32 mm190 mm20 ml smaller
SJE1901-700700 ml72 gØ32 mm237 mm50 ml smaller
