PE Cosmetic Bottle 500ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1900-500. Nominal factory values — custom colors, printing and finishing available on all parameters below.

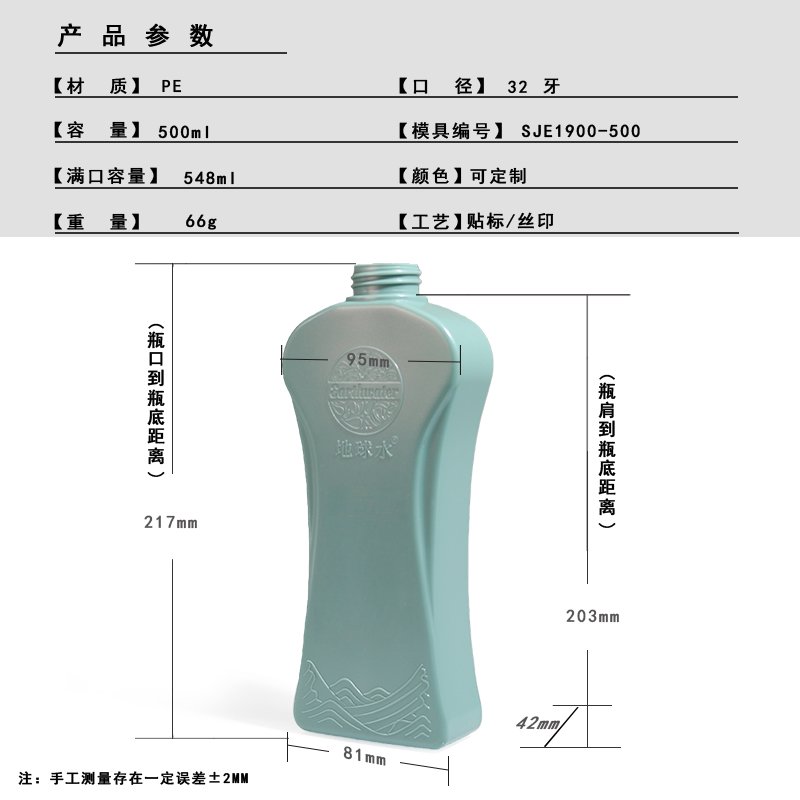

| Dimensions & Capacity | |
| Nominal Capacity | 500 ml (16.9 fl oz) |
| Overflow Capacity (brimful) | 548 ml (18.5 fl oz) |
| Bottle Weight | 66 g |
| Neck Finish | 32/410 |
| Total Height | 217 mm |
| Shoulder Height | 203 mm |
| Base (W × D) | 81 × 42 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size HDPE bottle: shampoo, conditioner, body wash, hand soap and general personal-care packaging. HDPE resists everyday chemicals and squeezes cleanly to the last drop.
SJE1900-500 is a 500 ml PE / HDPE bottle in the body & hair-care size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for body lotions, shampoos, conditioners and shower gels. The 32 mm neck is compatible with standard screw, pump or flip-top closure, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 500 ml ≈ 16.9 fl oz, Ø32 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 81 × 42 mm base (1.93 : 1 width-to-depth). Two parallel 81 mm faces carry front and back artwork, while the narrow 42 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.68 : 1 (217 mm tall, 81 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 500 ml stated capacity inside a 738 ml rectangular outline — 68 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 66 g body weight = 13.2 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 198 mm — from the base to the 203 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 81 mm flat face → artwork up to 73 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 73 × 198 mm (W × H) flat label on each face, or a wrap label over the 42 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø32 mm screw neck — the 32/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | high-output lotion pump or wide flip-top cap. |
| Dosing note | At 500 ml the Ø32 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 500 ml model (480 ml, 468 ml, 505 ml, 525 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1640-525 | 525 ml | 54 g | Ø32 mm | 208 mm | +25 ml larger · same neck |
| SJE1854-505 | 505 ml | 50 g | Ø28 mm | 154 mm | +5 ml larger |
| SJE1900-500 | 500 ml | 66 g | Ø32 mm | 217 mm | This model |
| SJE1848-480 | 480 ml | 40 g | Ø28 mm | 152 mm | 20 ml smaller |
| SJE1627-468 | 468 ml | 40 g | Ø28 mm | 209 mm | 32 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
