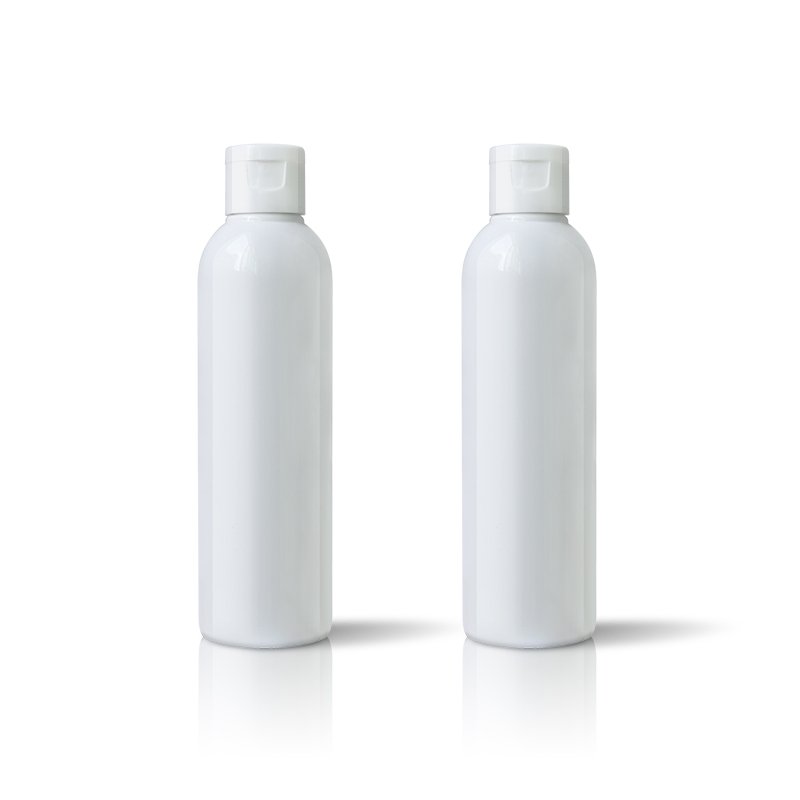

PET Cosmetic Bottle 130ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0009-130. Nominal factory values — custom colors, printing and finishing available on all parameters below.

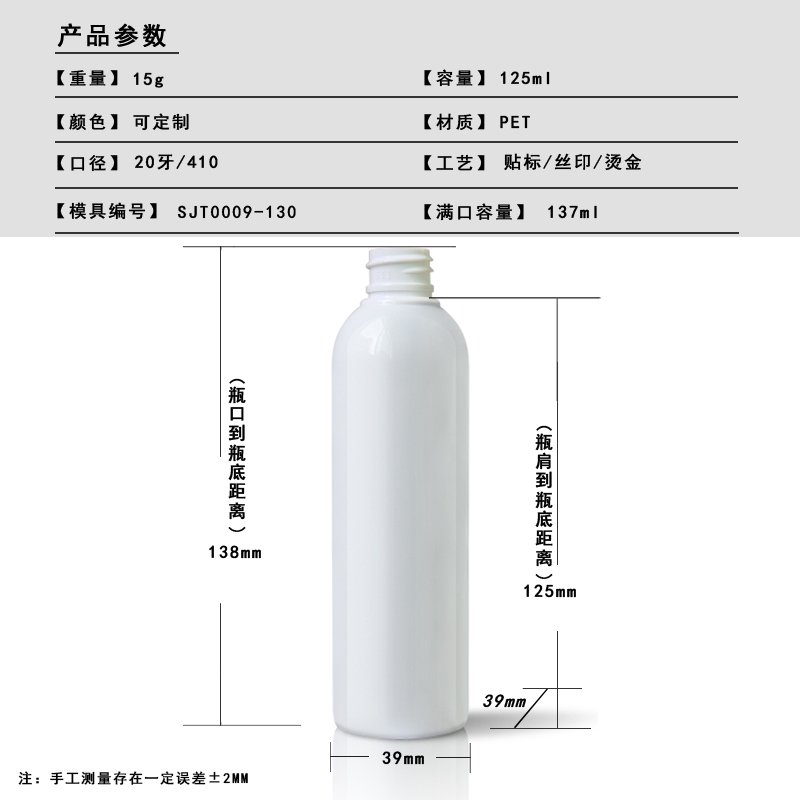

| Dimensions & Capacity | |
| Nominal Capacity | 130 ml (4.4 fl oz) |
| Overflow Capacity (brimful) | 137 ml (4.6 fl oz) |
| Bottle Weight | 15 g |
| Neck Finish | 20/410 |
| Total Height | 138 mm |
| Shoulder Height | 125 mm |
| Base (W × D) | 39 × 39 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small PET bottle: serums, facial toners, essential-oil blends, hand-sanitizer and travel-size skincare. The clear PET wall shows formula color, and the standard neck pairs with fine-mist sprayers, dropper or screw caps.
SJT0009-130 is a 130 ml PET bottle in the daily face-care size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 130 ml ≈ 4.4 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 39 mm diameter across the base, 138 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 3.54 : 1 (138 mm tall, 39 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 130 ml stated capacity inside a 210 ml rectangular outline — 62 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 15 g body weight = 11.5 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 120 mm — from the base to the 125 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 123 mm (π × 39 mm) — a wrap-around label up to 113 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 113 × 120 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 130 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 130 ml model (128 ml, 128 ml, 150 ml, 150 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0066-150 | 150 ml | 19 g | Ø24 mm | 123 mm | +20 ml larger |
| SJT0068-150 | 150 ml | 35 g | Ø28 mm | 148 mm | +20 ml larger |
| SJT0009-130 | 130 ml | 15 g | Ø20 mm | 138 mm | This model |
| SJT0440-128 | 128 ml | 25 g | Ø24 mm | 136 mm | 2 ml smaller |
| SJT0157-128 | 128 ml | 15 g | Ø20 mm | 126 mm | 2 ml smaller · same neck |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
