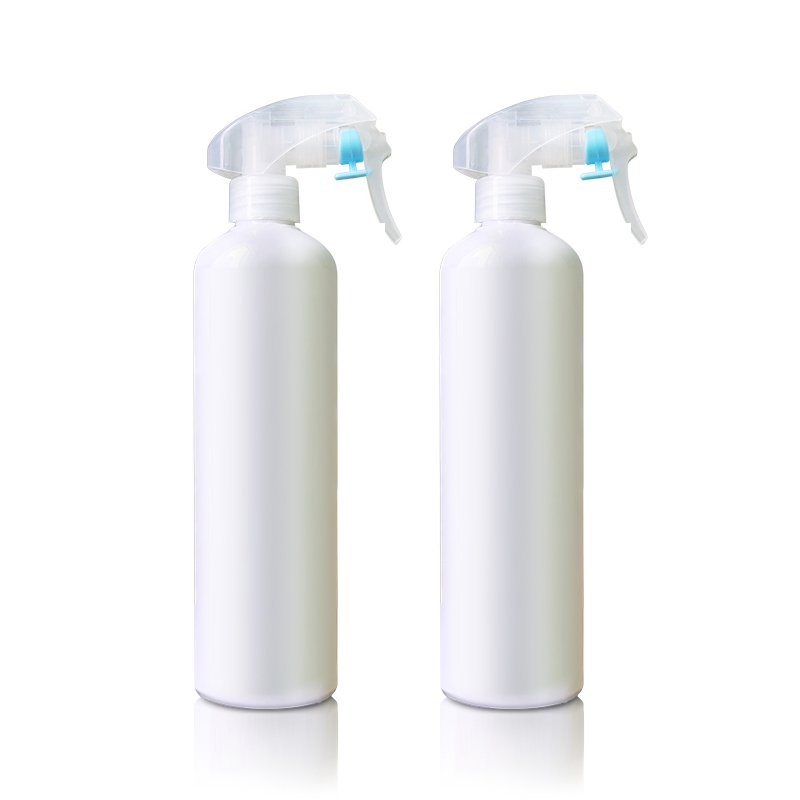

PET Cosmetic Bottle 520ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0065-520. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 520 ml (17.6 fl oz) |
| Overflow Capacity (brimful) | 550 ml |
| Bottle Weight | 39 g |
| Neck Finish | 28 mm |
| Total Height | 217 mm |
| Shoulder Height | 200 mm |
| Base (W × D) | 61 × 61 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large PET bottle: refillable body wash, shampoo, conditioner and household-care volumes. Large formats cut per-unit packaging cost while keeping a clean, premium look.
SJT0065-520 is a 520 ml PET bottle in the family & refill size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for family-size body care, refill packs and value bundles. The 28 mm neck is compatible with a 28/410 lotion pump, trigger or screw cap, so so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 28/410 lotion pump, trigger or screw cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

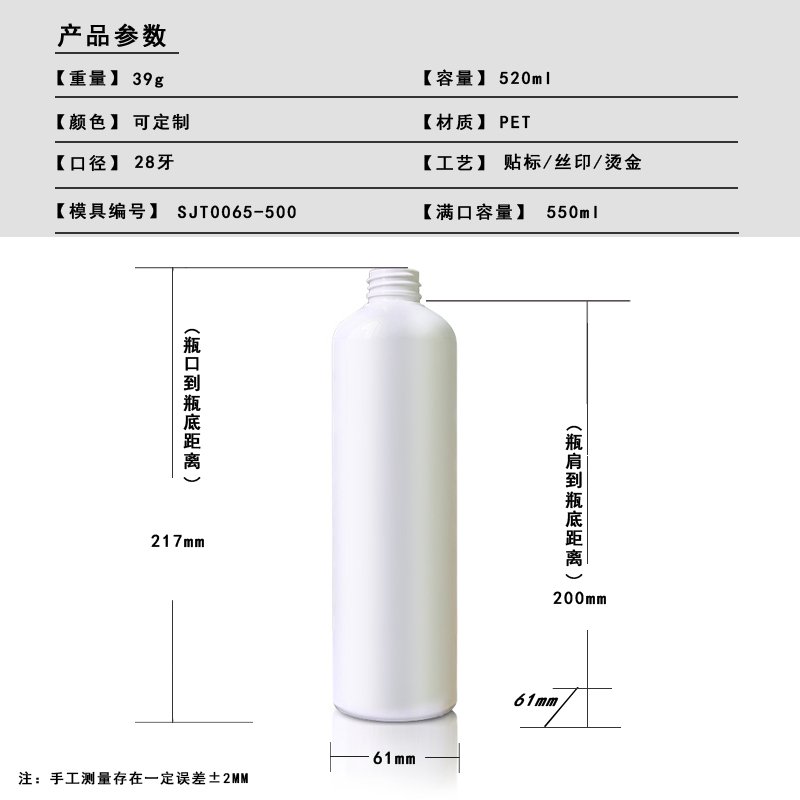

Everything below is calculated from the nominal dimensions in the specification table above (PET, 520 ml ≈ 17.6 fl oz, Ø28 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 61 mm diameter across the base, 217 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 3.56 : 1 (217 mm tall, 61 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 520 ml stated capacity inside a 807 ml rectangular outline — 64 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 39 g body weight = 7.5 g per 100 ml. Lightweight range: lower resin cost per unit and cheaper freight at equal carton count. |
| Label & decoration zone | |
| Usable label height | Up to 195 mm — from the base to the 200 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 192 mm (π × 61 mm) — a wrap-around label up to 176 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 176 × 195 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø28 mm screw neck — the 28/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 520 ml the Ø28 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 520 ml model (500 ml, 500 ml, 530 ml, 530 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0021-530 | 530 ml | 35 g | Ø28 mm | 145 mm | +10 ml larger · same neck |
| SJT0099-530 | 530 ml | 29 g | Ø28 mm | 129 mm | +10 ml larger · same neck |
| SJT0065-520 | 520 ml | 39 g | Ø28 mm | 217 mm | This model |
| SJT0595-500 | 500 ml | 55 g | Ø28 mm | 180 mm | 20 ml smaller · same neck |
| SJT0594-500 | 500 ml | 40 g | Ø24 mm | 140 mm | 20 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
