PET Cosmetic Bottle 768ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0217-768. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 768 ml (26.0 fl oz) |
| Overflow Capacity (brimful) | 811 ml (27.4 fl oz) |
| Bottle Weight | 60 g |
| Neck Finish | 32/410 |

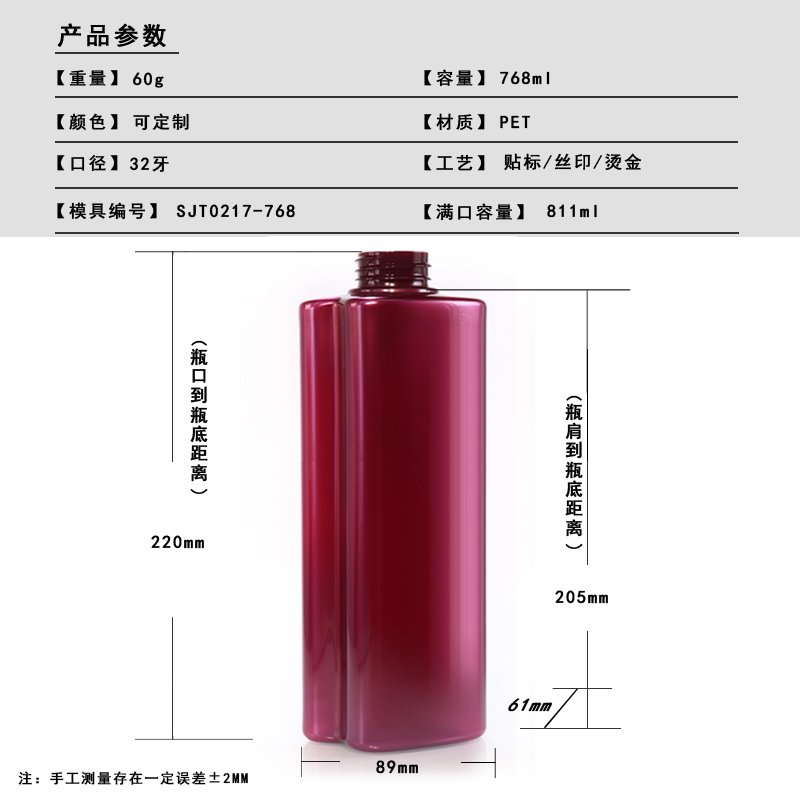

| Total Height | 220 mm |
| Shoulder Height | 205 mm |
| Base (W × D) | 89 × 61 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 120 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 45 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large PET bottle: refillable body wash, shampoo, conditioner and household-care volumes. Large formats cut per-unit packaging cost while keeping a clean, premium look.
SJT0217-768 is a 768 ml PET bottle in the family & refill size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for family-size body care, refill packs and value bundles. The 32 mm neck is compatible with standard screw, pump or flip-top closure, s so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 768 ml ≈ 26.0 fl oz, Ø32 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 89 × 61 mm base (1.46 : 1 width-to-depth). Two parallel 89 mm faces carry front and back artwork, while the narrow 61 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.47 : 1 (220 mm tall, 89 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 768 ml stated capacity inside a 1,194 ml rectangular outline — 64 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 60 g body weight = 7.8 g per 100 ml. Lightweight range: lower resin cost per unit and cheaper freight at equal carton count. |
| Label & decoration zone | |
| Usable label height | Up to 200 mm — from the base to the 205 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 89 mm flat face → artwork up to 81 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 81 × 200 mm (W × H) flat label on each face, or a wrap label over the 61 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø32 mm screw neck — the 32/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | high-output lotion pump or wide flip-top cap. |
| Dosing note | At 768 ml the Ø32 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 768 ml model (760 ml, 750 ml, 780 ml, 780 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0171-780 | 780 ml | 60 g | Ø32 mm | 230 mm | +12 ml larger · same neck |
| SJT0173-780 | 780 ml | 60 g | Ø32 mm | 210 mm | +12 ml larger · same neck |
| SJT0217-768 | 768 ml | 60 g | Ø32 mm | 220 mm | This model |
| SJT0286-760 | 760 ml | 60 g | Ø32 mm | 213 mm | 8 ml smaller · same neck |
| SJT0593-750 | 750 ml | 65 g | Ø32 mm | 221 mm | 18 ml smaller · same neck |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
