PET Cosmetic Bottle 500ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0293-500. Nominal factory values — custom colors, printing and finishing available on all parameters below.

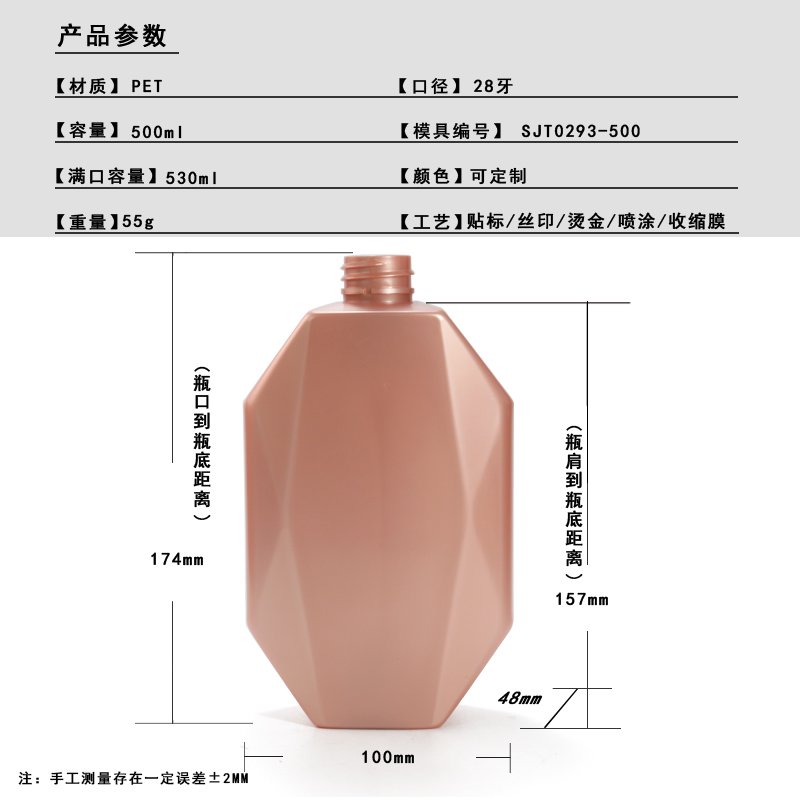

| Dimensions & Capacity | |
| Nominal Capacity | 500 ml (16.9 fl oz) |
| Overflow Capacity (brimful) | 530 ml (17.9 fl oz) |
| Bottle Weight | 55 g |
| Neck Finish | 28/410 |
| Total Height | 174 mm |
| Shoulder Height | 157 mm |
| Base (W × D) | 100 × 48 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 154 pcs / carton |
| Carton Dimensions (L×W×H) | 77 × 50 × 38 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |

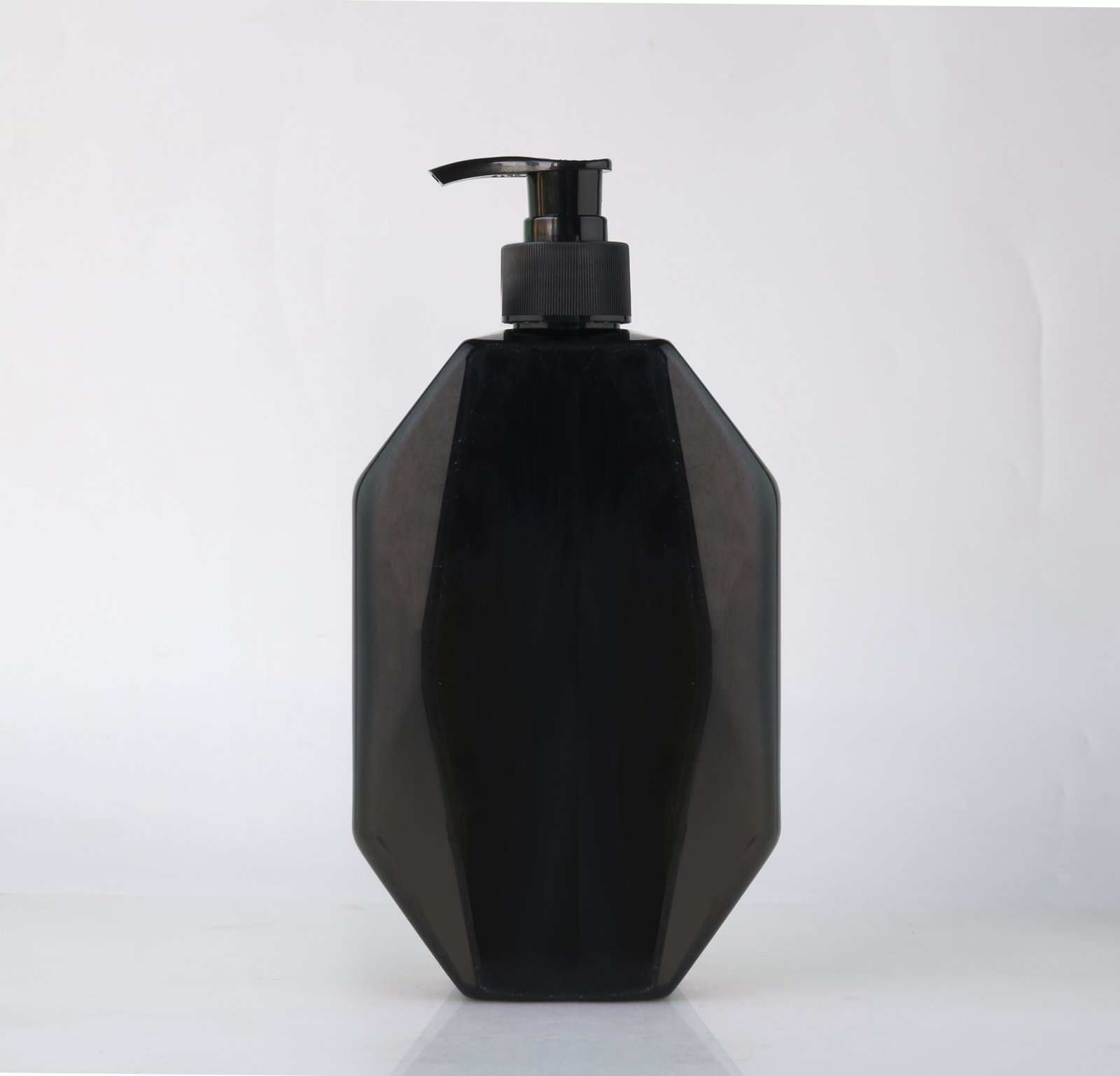

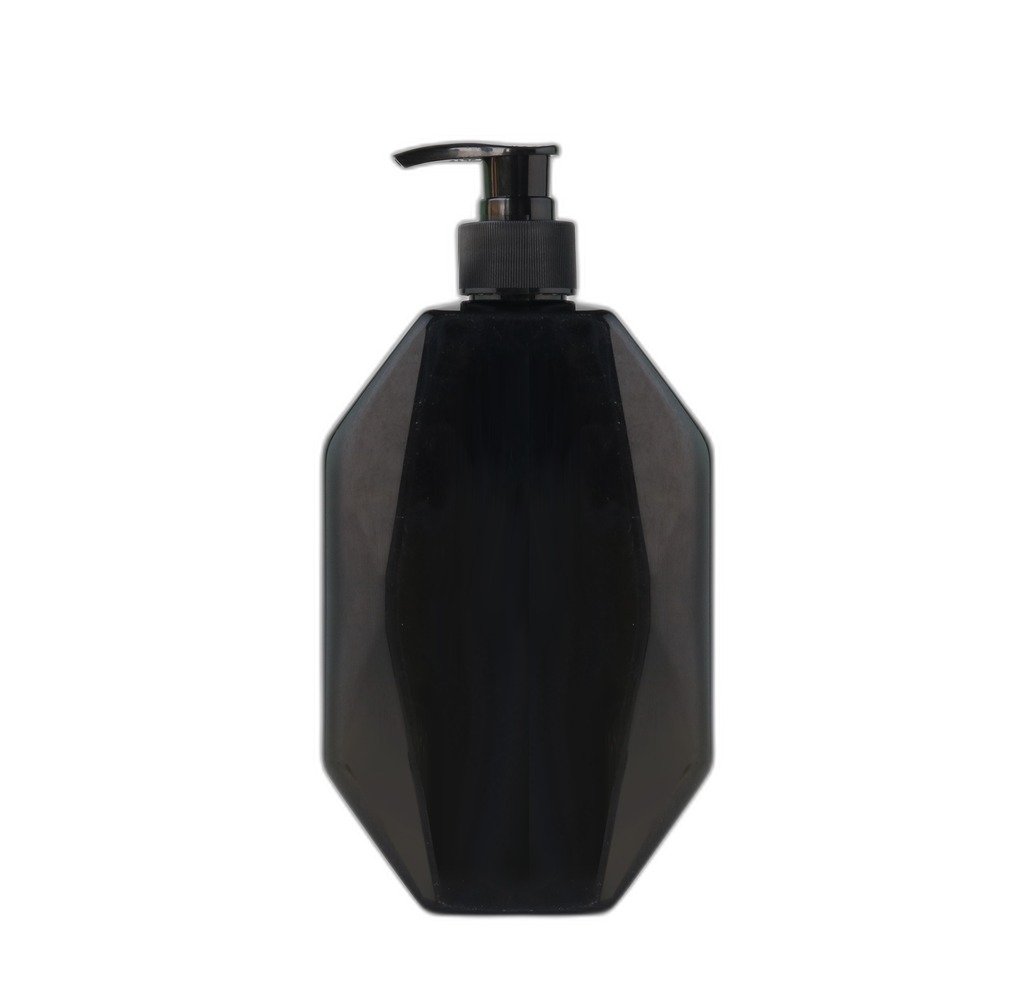

Typical applications for this mid-size PET bottle: body lotion, hand wash, facial mist, shampoo and daily skincare. Its clarity and light weight suit retail shelves, while the neck accepts lotion pumps, sprayers or flip-top closures.
SJT0293-500 is a 500 ml PET bottle in the body & hair-care size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for body lotions, shampoos, conditioners and shower gels. The 28 mm neck is compatible with a 28/410 lotion pump, trigger or screw cap, so it adapts to pump, spray or screw formats wi so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 28/410 lotion pump, trigger or screw cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 500 ml ≈ 16.9 fl oz, Ø28 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 100 × 48 mm base (2.08 : 1 width-to-depth). Two parallel 100 mm faces carry front and back artwork, while the narrow 48 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.74 : 1 (174 mm tall, 100 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 500 ml stated capacity inside a 835 ml rectangular outline — 60 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 55 g body weight = 11.0 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 152 mm — from the base to the 157 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 100 mm flat face → artwork up to 92 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 92 × 152 mm (W × H) flat label on each face, or a wrap label over the 48 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø28 mm screw neck — the 28/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 500 ml the Ø28 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 500 ml model (480 ml, 480 ml, 520 ml, 520 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0065-520 | 520 ml | 39 g | Ø28 mm | 217 mm | +20 ml larger · same neck |
| SJT0315-520 | 520 ml | 39 g | Ø28 mm | 151 mm | +20 ml larger · same neck |
| SJT0293-500 | 500 ml | 55 g | Ø28 mm | 174 mm | This model |
| SJT0394-480 | 480 ml | 39 g | Ø28 mm | 191 mm | 20 ml smaller · same neck |
| SJT0290-480 | 480 ml | 39 g | Ø28 mm | 179 mm | 20 ml smaller · same neck |
