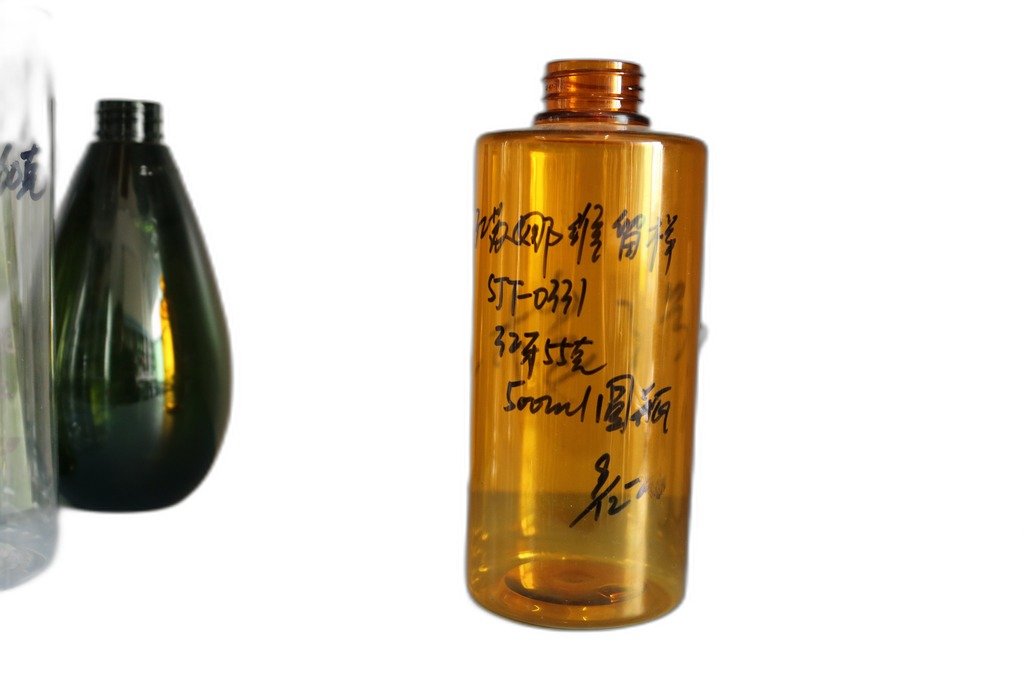

PET Cosmetic Bottle 500ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0331-500. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 500 ml (16.9 fl oz) |
| Overflow Capacity (brimful) | 560 ml (18.9 fl oz) |
| Bottle Weight | 47 g |
| Neck Finish | 32/410 |
| Total Height | 168 mm |
| Shoulder Height | 154 mm |
| Base (W × D) | 71 × 71 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 210 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 52 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size PET bottle: body lotion, hand wash, facial mist, shampoo and daily skincare. Its clarity and light weight suit retail shelves, while the neck accepts lotion pumps, sprayers or flip-top closures.
SJT0331-500 is a 500 ml PET bottle in the body & hair-care size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for body lotions, shampoos, conditioners and shower gels. The 32 mm neck is compatible with standard screw, pump or flip-top closure, so it adapts to pump, spray or screw formats so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 500 ml ≈ 16.9 fl oz, Ø32 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 71 mm diameter across the base, 168 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.37 : 1 (168 mm tall, 71 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 500 ml stated capacity inside a 847 ml rectangular outline — 59 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 47 g body weight = 9.4 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 149 mm — from the base to the 154 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 223 mm (π × 71 mm) — a wrap-around label up to 205 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 205 × 149 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø32 mm screw neck — the 32/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | high-output lotion pump or wide flip-top cap. |
| Dosing note | At 500 ml the Ø32 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 500 ml model (480 ml, 480 ml, 520 ml, 520 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0065-520 | 520 ml | 39 g | Ø28 mm | 217 mm | +20 ml larger |
| SJT0315-520 | 520 ml | 39 g | Ø28 mm | 151 mm | +20 ml larger |
| SJT0331-500 | 500 ml | 47 g | Ø32 mm | 168 mm | This model |
| SJT0394-480 | 480 ml | 39 g | Ø28 mm | 191 mm | 20 ml smaller |
| SJT0290-480 | 480 ml | 39 g | Ø28 mm | 179 mm | 20 ml smaller |
