PET Cosmetic Bottle 420ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0343-420. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 420 ml (14.2 fl oz) |
| Overflow Capacity (brimful) | 445 ml (15.0 fl oz) |
| Bottle Weight | 47 g |
| Neck Finish | 32/410 |
| Total Height | 174 mm |
| Shoulder Height | 159 mm |
| Base (W × D) | 62 × 62 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 160 pcs / carton |
| Carton Dimensions (L×W×H) | 66 × 50 × 38 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size PET bottle: body lotion, hand wash, facial mist, shampoo and daily skincare. Its clarity and light weight suit retail shelves, while the neck accepts lotion pumps, sprayers or flip-top closures.
SJT0343-420 is a 420 ml PET bottle in the body & hair-care size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for body lotions, shampoos, conditioners and shower gels. The 32 mm neck is compatible with standard screw, pump or flip-top closure, so it adapts to pump, spray or screw formats so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

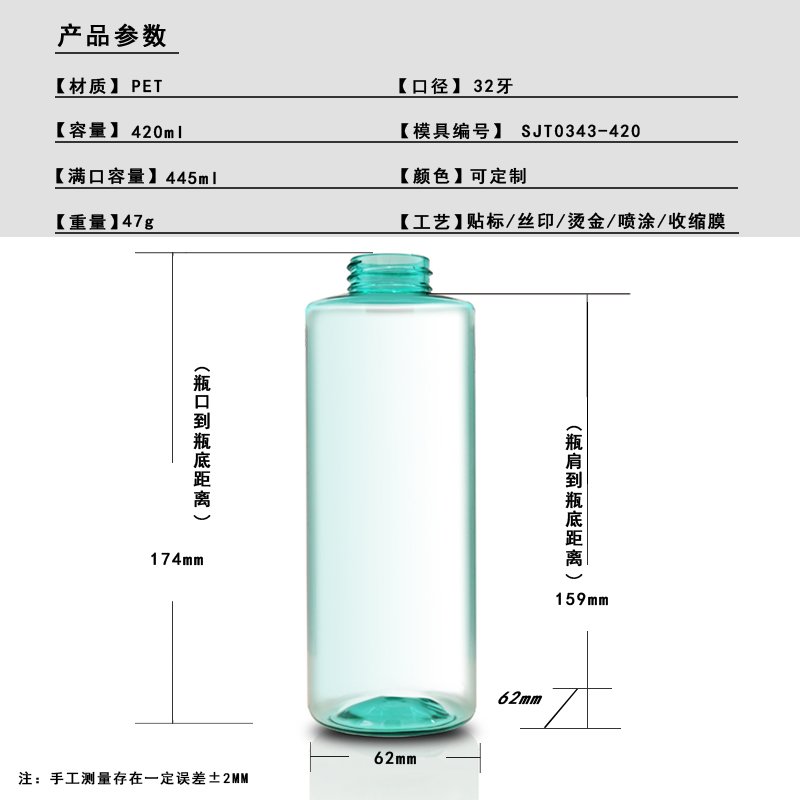

Everything below is calculated from the nominal dimensions in the specification table above (PET, 420 ml ≈ 14.2 fl oz, Ø32 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 62 mm diameter across the base, 174 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.81 : 1 (174 mm tall, 62 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 420 ml stated capacity inside a 669 ml rectangular outline — 63 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 47 g body weight = 11.2 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 154 mm — from the base to the 159 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 195 mm (π × 62 mm) — a wrap-around label up to 179 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 179 × 154 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø32 mm screw neck — the 32/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | high-output lotion pump or wide flip-top cap. |
| Dosing note | At 420 ml the Ø32 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 420 ml model (400 ml, 400 ml, 430 ml, 438 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0128-438 | 438 ml | 42 g | Ø28 mm | 200 mm | +18 ml larger |
| SJT0427-430 | 430 ml | 39 g | Ø28 mm | 166 mm | +10 ml larger |
| SJT0343-420 | 420 ml | 47 g | Ø32 mm | 174 mm | This model |
| SJT0596-400 | 400 ml | 35 g | Ø24 mm | 120 mm | 20 ml smaller |
| SJT0585-400 | 400 ml | 35 g | Ø28 mm | 77 mm | 20 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
