SJT0480-700

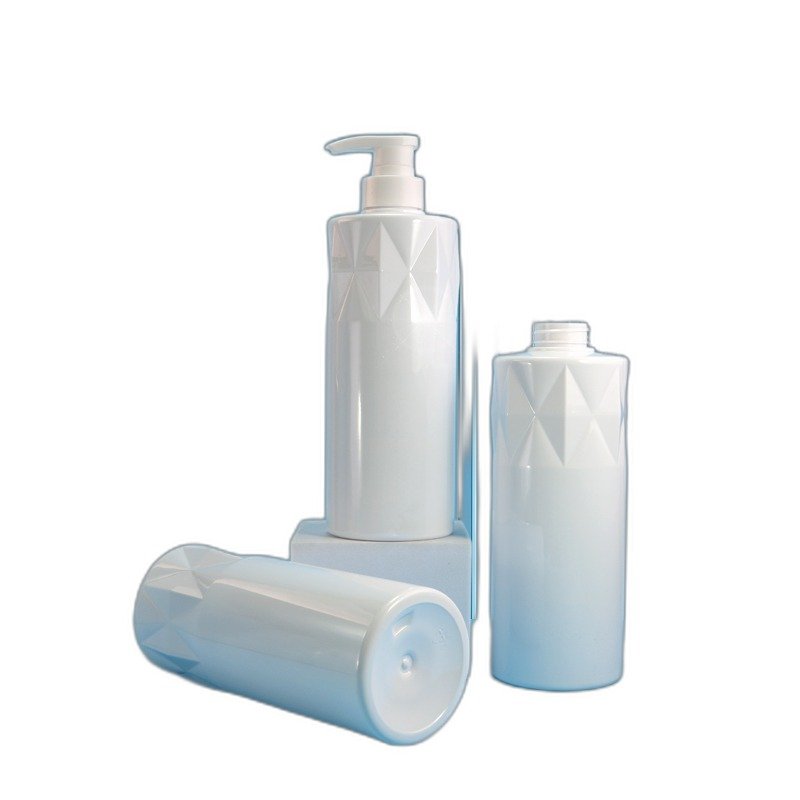

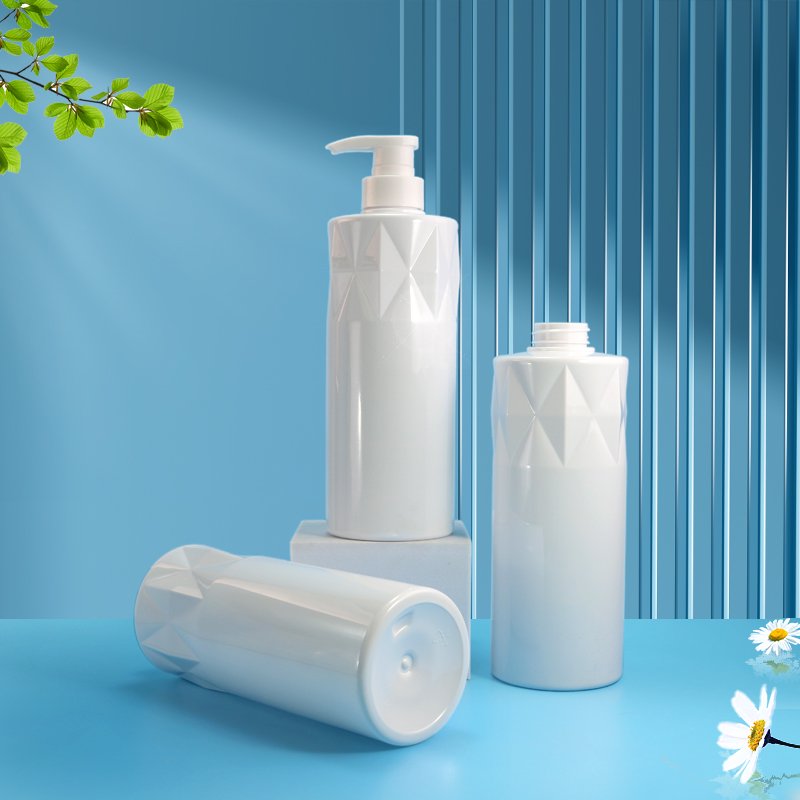

PET Cosmetic Bottle 700ml

SJT0480-700

PET Cosmetic Bottle 700ml
PET 700 ml
PET bottle for large-format body wash and pro sizes, nominal 700 ml, 200 mm tall, 76 x 76 mm base, 55 g empty, 32/410 neck. Existing mold — no tooling; MOQ 5,000 per colour.

Specifications

SKUSJT0480-700
MaterialPET
Capacity700 ml
Overflow Capacity754 ml
Weight55 g
Neck Size32 mm
Total Height200 mm
Shoulder Height187 mm
Base Width76 mm
Base Depth76 mm
MOQ5,000 units
Lead Time15–25 days
CertificationISO 9001 / FDA / SGS
Request Quote →

📦 Download Catalog

Download the complete PET bottle catalog PDF for offline viewing.

PET Below 100ml PET 100-200ml PET 201-300ml PET Above 1000ml

Technical Specifications

Full engineering parameters for SJT0480-700. Nominal factory values — custom colors, printing and finishing available on all parameters below.

Dimensions & Capacity
Nominal Capacity700 ml (23.7 fl oz)
Overflow Capacity (brimful)754 ml (25.5 fl oz)
Bottle Weight55 g
Neck Finish32/410
Total Height200 mm
Shoulder Height187 mm
Base (W × D)76 × 76 mm
Material & Compliance
MaterialPET
Resin GradeFood-contact, virgin (non-recycled)
CertificationsISO 9001 / FDA / SGS
RecyclableYes
Packing & Order Info
Carton Pack120 pcs / carton
Carton Dimensions (L×W×H)76 × 50 × 42 cm
MOQ5,000 units
Lead Time15–25 days

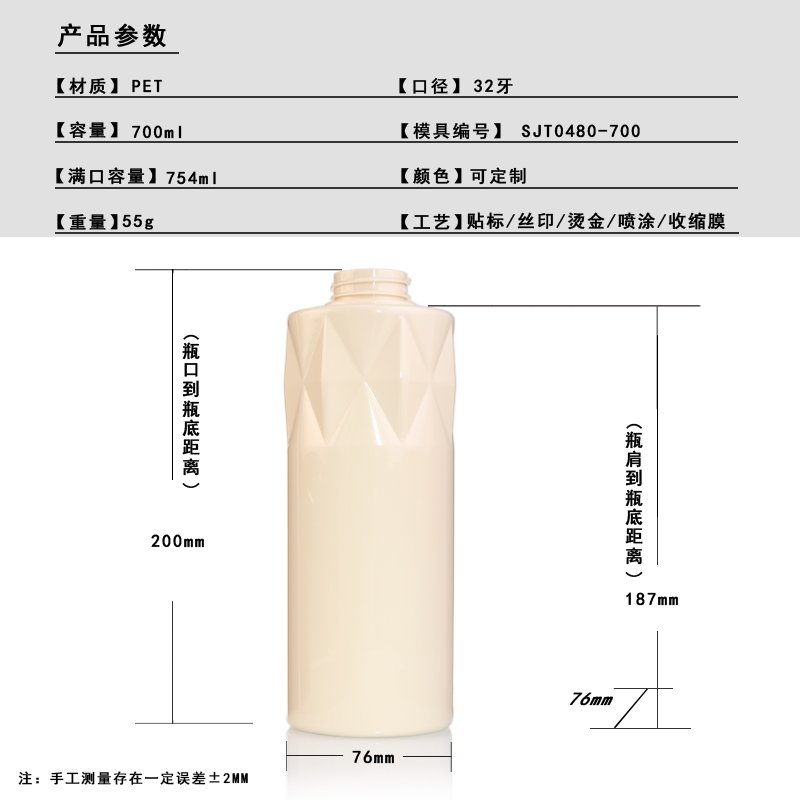

Technical Drawing

SJT0480-700 technical dimension drawing
Dimensional drawing of SJT0480-700 — all measurements in millimetres (nominal factory dimensions). For detailed tolerance specs, contact us.

Typical Applications

Typical applications for this large PET bottle: refillable body wash, shampoo, conditioner and household-care volumes. Large formats cut per-unit packaging cost while keeping a clean, premium look.

Recommended For

SJT0480-700 is a 700 ml PET bottle in the family & refill size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for family-size body care, refill packs and value bundles. The 32 mm neck is compatible with standard screw, pump or flip-top closure, s so it adapts to pump, spray or screw formats without mold changes.

Closure & Finishing

For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

Dimensions in working terms

SJT0480-700 is 200 mm tall on a 76 x 76 mm base, so the height is 2.63 times the widest base dimension and the footprint is 57.8 cm².

Total height200 mm
Base (W x D)76 x 76 mm
Footprint57.8 cm²
Height to widest base2.63 : 1
Average content per mm3.50 ml
Empty weight per 100 mm27.50 g
Empty weight per litre held78.6 g
Headspace above nominal54 ml (7.2%)

Closest alternative we already mould

SJE0021-700 is the closest thing we mould to SJT0480-700 at 700 ml: 1 mm taller. Moving between the two needs no new tooling.

SKUSJE0021-700
Capacity700 ml (23.7 fl oz)
Height201 mm
Base-
Neck-
Weight-

Batch yield at a 90% fill line

Stated capacity on SJT0480-700 is 700 ml and the brimful figure is 754 ml, so 54 ml of headspace sits under the rim, inside a body 200 mm tall. Holding the filler at a 90% line puts 630 ml in every unit, so a 500 L batch fills 793 of them.

Batch of product700 ml units at 90%Resin for those units
500 L79343.6 kg
1,000 L1,58787.3 kg
5,000 L7,936436.5 kg

Order tiers in real numbers

5,000 units of SJT0480-700 is 3,500 L of finished product, and 100,000 units is 70,000 L, which takes 5,500 kg of resin at 55 g a bottle. MOQ is per colour rather than per SKU. 200 mm and 700 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.

Frequently Asked Questions

Is this PET bottle made from food-contact, food-grade material?▼
Yes. ShiJin Package holds a domestic food-production license, and bottles in this range are made from food-contact, virgin (non-recycled) resin — the same material standard as food-contact packaging. Our core production is cosmetic, personal-care and household packaging; the food-contact grade is a material-safety guarantee, not a food-bottle product line.
Can I get this 700ml PET bottle with custom color and logo?▼
Yes. 700ml PET bottles accept Pantone color matching, silk-screen, hot-stamp or UV printing, labeling, and soft-touch/frosted/metallic finishing. Most projects reuse our existing mold library, so no new tooling cost.
Do you offer samples of SJT0480-700 before bulk ordering?▼
Yes - stock sjt0480-700 samples are free (you cover freight). Customized samples with your color or logo carry a small setup fee, refunded on orders above 10,000 units.

Engineering Notes — SJT0480-700

Everything below is calculated from the nominal dimensions in the specification table above (PET, 700 ml ≈ 23.7 fl oz, Ø32 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.

Form, Fill & Label Profile

Body geometry
Body shapeRound body — 76 mm diameter across the base, 200 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette.
Height to width2.63 : 1 (200 mm tall, 76 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small.
Fill-to-outline ratio700 ml stated capacity inside a 1,155 ml rectangular outline — 61 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity.
Unit weight55 g body weight = 7.9 g per 100 ml. Lightweight range: lower resin cost per unit and cheaper freight at equal carton count.
Label & decoration zone
Usable label heightUp to 182 mm — from the base to the 187 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option.
Body circumference239 mm (π × 76 mm) — a wrap-around label up to 220 mm wide fits with seam clearance.
Recommended maximum label size≈ 220 × 182 mm (W × H) wrap label, or a two-panel front/back set on the same circumference.
Neck & closure
Neck finishØ32 mm screw neck — the 32/410 industry standard, one of the most widely stocked closure sizes worldwide.
Dispensing optionshigh-output lotion pump or wide flip-top cap.
Dosing noteAt 700 ml the Ø32 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it.

Same-Family Options at a Glance

Nearest PET formats to this 700 ml model (680 ml, 680 ml, 738 ml, 750 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.

SKUCapacityWeightNeckHeightDifference
SJT0036-750750 ml47 gØ32 mm204 mm+50 ml larger · same neck
SJT0125-55738 ml60 gØ32 mm229 mm+38 ml larger · same neck
SJT0480-700700 ml55 gØ32 mm200 mmThis model
SJT0552-680680 ml60 gØ32 mm225 mm20 ml smaller · same neck
SJT0013-680680 ml55 gØ32 mm210 mm20 ml smaller · same neck
