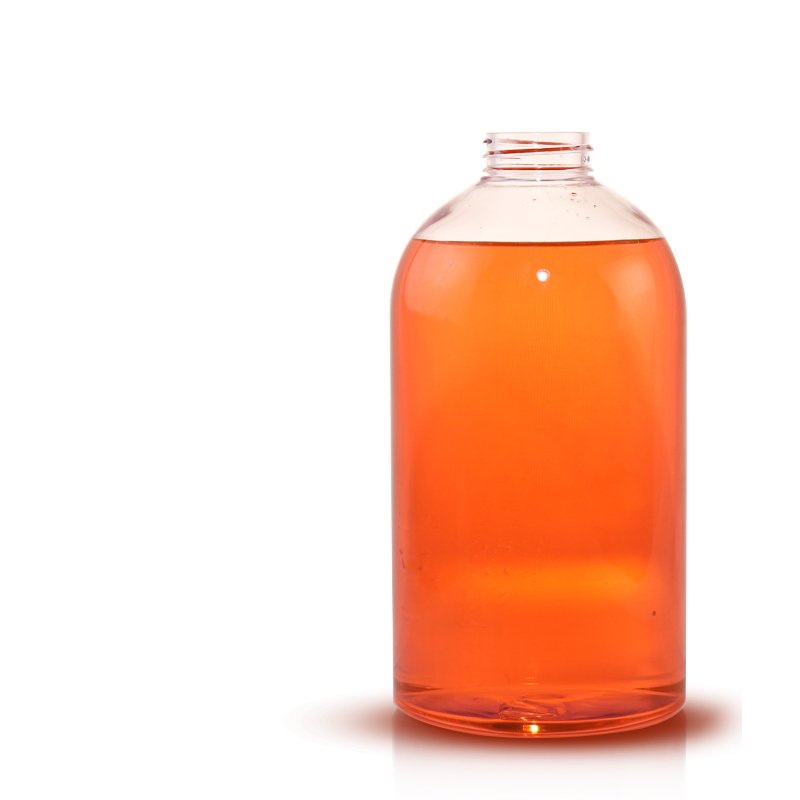

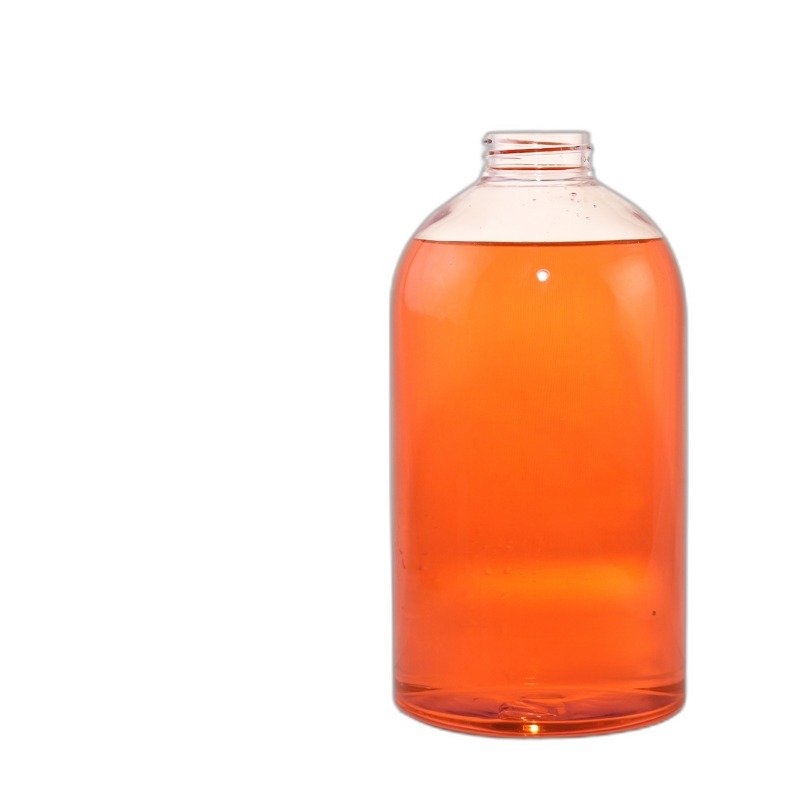

PET Cosmetic Bottle 800ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0490-800. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Detailed dimensional data for this model is available on request — contact us for the full spec sheet.
Typical applications for this large PET bottle: refillable body wash, shampoo, conditioner and household-care volumes. Large formats cut per-unit packaging cost while keeping a clean, premium look.
SJT0490-800 is a 800 ml PET bottle in the family & refill size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for family-size body care, refill packs and value bundles. The 32 mm neck is compatible with standard screw, pump or flip-top closure, s so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 800 ml ≈ 27.1 fl oz, Ø32 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |

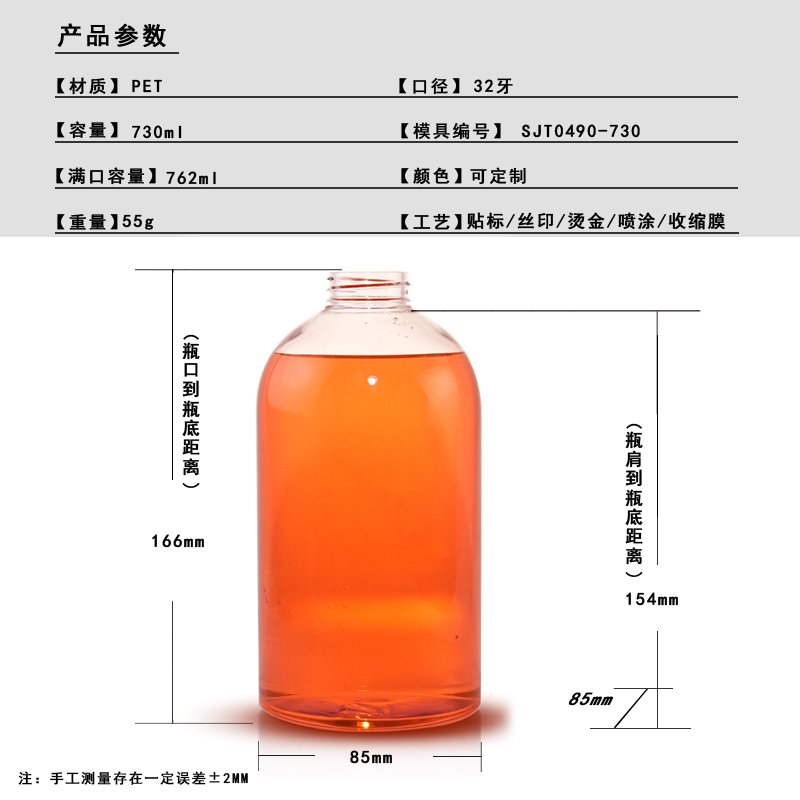

| Body shape | Round body — 85 mm diameter across the base, 166 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 1.95 : 1 (166 mm tall, 85 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 800 ml stated capacity inside a 1,199 ml rectangular outline — 67 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 55 g body weight = 6.9 g per 100 ml. Lightweight range: lower resin cost per unit and cheaper freight at equal carton count. |
| Label & decoration zone | |
| Usable label height | Up to 149 mm — from the base to the 154 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 267 mm (π × 85 mm) — a wrap-around label up to 246 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 246 × 149 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø32 mm screw neck — the 32/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | high-output lotion pump or wide flip-top cap. |
| Dosing note | At 800 ml the Ø32 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 800 ml model (780 ml, 780 ml, 815 ml, 900 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0104-900 | 900 ml | 65 g | Ø32 mm | 240 mm | +100 ml larger · same neck |
| SJT0367-815 | 815 ml | 55 g | Ø32 mm | 177 mm | +15 ml larger · same neck |
| SJT0490-800 | 800 ml | 55 g | Ø32 mm | 166 mm | This model |
| SJT0173-780 | 780 ml | 60 g | Ø32 mm | 210 mm | 20 ml smaller · same neck |
| SJT0171-780 | 780 ml | 60 g | Ø32 mm | 230 mm | 20 ml smaller · same neck |
