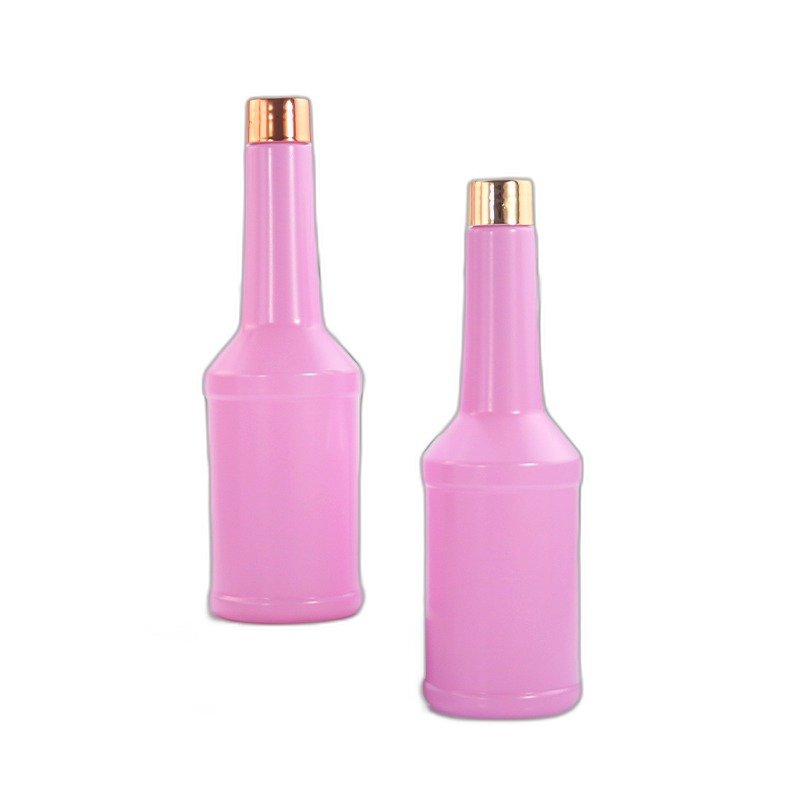

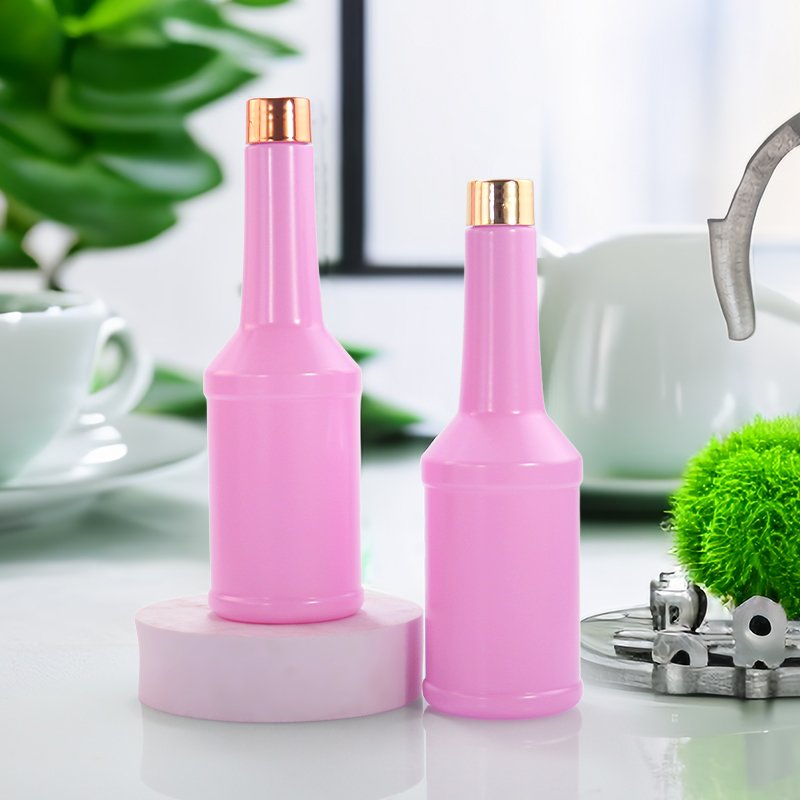

PET Cosmetic Bottle 180ml
Download the complete PET bottle catalog PDF for offline viewing.

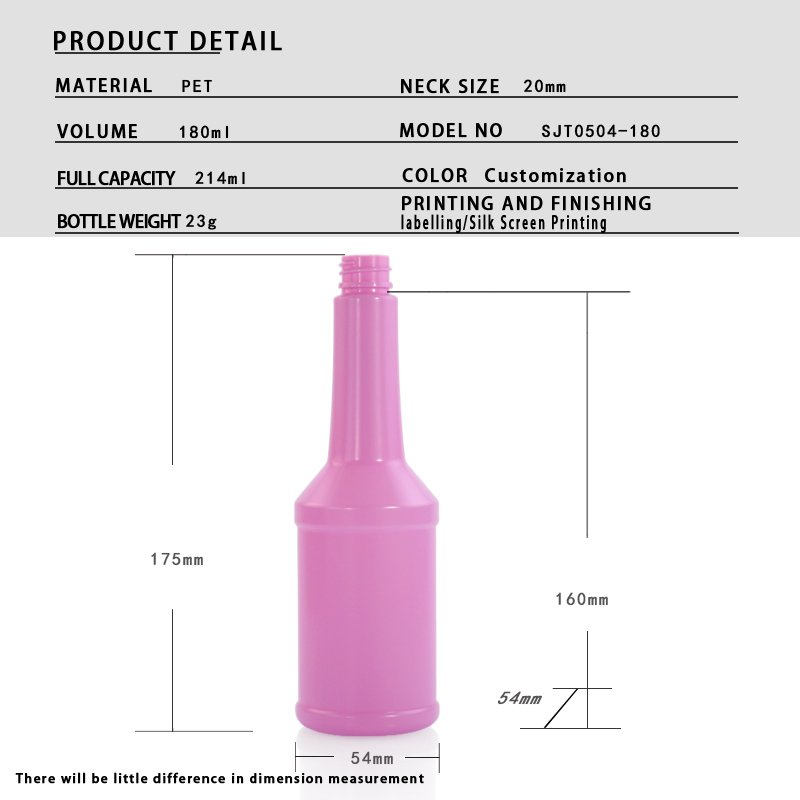

Full engineering parameters for SJT0504-180. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 180 ml (6.1 fl oz) |
| Bottle Weight | 23 g |
| Neck Finish | 20 mm |
| Total Height | 175 mm |
| Shoulder Height | 160 mm |
| Base (W × D) | 54 × 54 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size PET bottle: body lotion, hand wash, facial mist, shampoo and daily skincare. Its clarity and light weight suit retail shelves, while the neck accepts lotion pumps, sprayers or flip-top closures.
SJT0504-180 is a 180 ml PET bottle in the daily face-care size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it adapts to pump, spray or screw form so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 180 ml ≈ 6.1 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 54 mm diameter across the base, 175 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 3.24 : 1 (175 mm tall, 54 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 180 ml stated capacity inside a 510 ml rectangular outline — 35 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 23 g body weight = 12.8 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 155 mm — from the base to the 160 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 170 mm (π × 54 mm) — a wrap-around label up to 156 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 156 × 155 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 180 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 180 ml model (177 ml, 160 ml, 190 ml, 195 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0011-195 | 195 ml | 25 g | Ø24 mm | 193 mm | +15 ml larger |
| SJT0313-190 | 190 ml | 19 g | Ø24 mm | 108 mm | +10 ml larger |
| SJT0504-180 | 180 ml | 23 g | Ø20 mm | 175 mm | This model |
| SJT0548-177 | 177 ml | 25 g | Ø24 mm | 150 mm | 3 ml smaller |
| SJT0182-160 | 160 ml | 19 g | Ø24 mm | 167 mm | 20 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
