PET Cosmetic Bottle 50ml
Download the complete PET bottle catalog PDF for offline viewing.

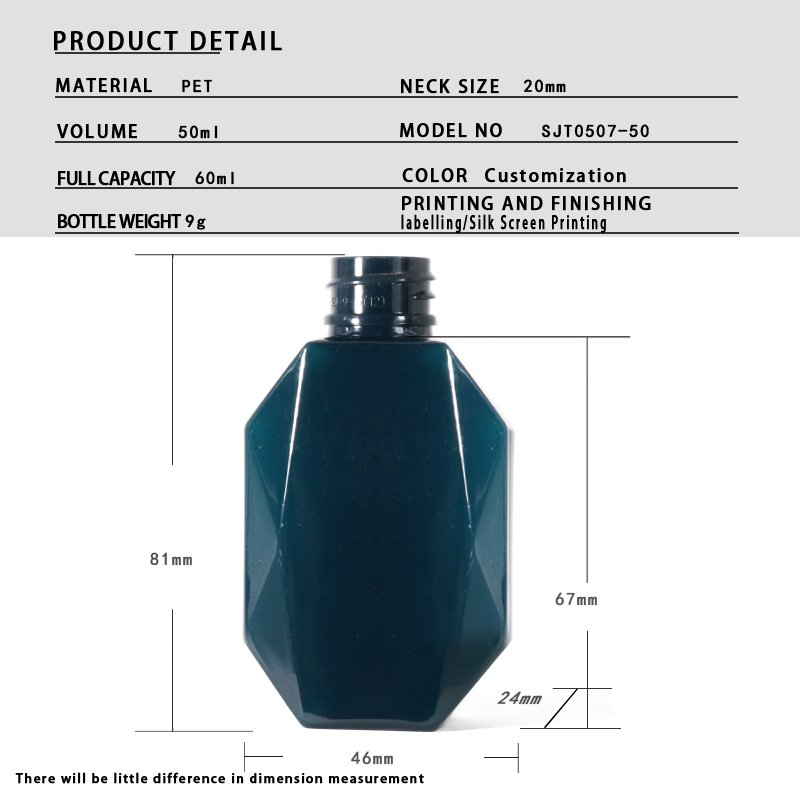

Full engineering parameters for SJT0507-50. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 50 ml (1.7 fl oz) |
| Bottle Weight | 9 g |
| Neck Finish | 20 mm |
| Total Height | 81 mm |
| Shoulder Height | 67 mm |
| Base (W × D) | 46 × 24 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 716 pcs / carton |
| Carton Dimensions (L×W×H) | 55 × 40 × 36 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small PET bottle: serums, facial toners, essential-oil blends, hand-sanitizer and travel-size skincare. The clear PET wall shows formula color, and the standard neck pairs with fine-mist sprayers, dropper or screw caps.

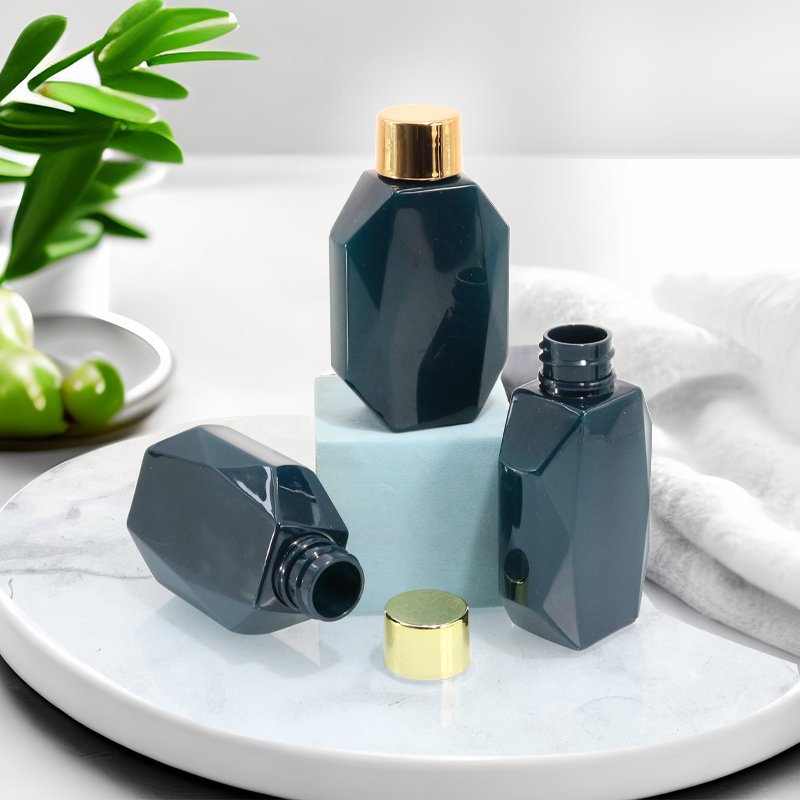

SJT0507-50 is a 50 ml PET bottle in the travel & sample size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for travel kits, hotel amenities, free samples and single-use sachets. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 50 ml ≈ 1.7 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 46 × 24 mm base (1.92 : 1 width-to-depth). Two parallel 46 mm faces carry front and back artwork, while the narrow 24 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.76 : 1 (81 mm tall, 46 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 50 ml stated capacity inside a 89 ml rectangular outline — 56 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 9 g body weight = 18.0 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 62 mm — from the base to the 67 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 46 mm flat face → artwork up to 38 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 38 × 62 mm (W × H) flat label on each face, or a wrap label over the 24 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 50 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 50 ml model (40 ml, 40 ml, 55 ml, 55 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0186-55 | 55 ml | 12 g | Ø20 mm | 118 mm | +5 ml larger · same neck |
| SJT0268-55 | 55 ml | 12 g | Ø30 mm | 60 mm | +5 ml larger |
| SJT0507-50 | 50 ml | 9 g | Ø20 mm | 81 mm | This model |
| SJT0570-40 | 40 ml | 10 g | Ø20 mm | 90 mm | 10 ml smaller · same neck |
| SJT0553-40 | 40 ml | 10 g | Ø20 mm | 76 mm | 10 ml smaller · same neck |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
