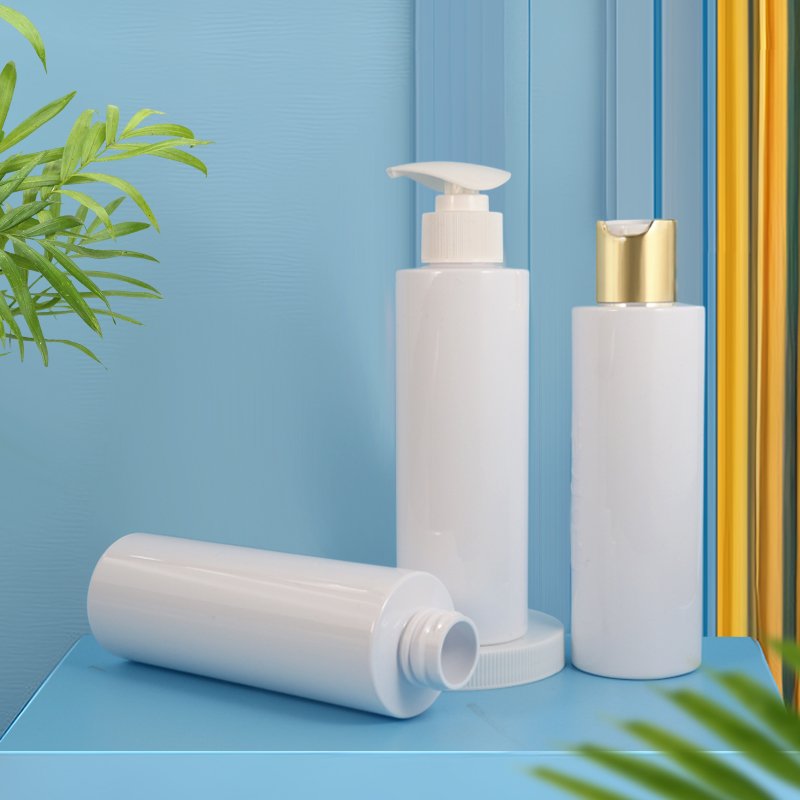

PET Cosmetic Bottle 220ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0510-220. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 220 ml (7.4 fl oz) |
| Overflow Capacity (brimful) | 295 ml (10.0 fl oz) |
| Bottle Weight | 29 g |
| Neck Finish | 28 mm |
| Total Height | 157 mm |
| Shoulder Height | 140 mm |
| Base (W × D) | 52 × 52 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size PET bottle: body lotion, hand wash, facial mist, shampoo and daily skincare. Its clarity and light weight suit retail shelves, while the neck accepts lotion pumps, sprayers or flip-top closures.
SJT0510-220 is a 220 ml PET bottle in the mid-format skincare range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for face creams, lotions, cleansers and mid-size skincare. The 28 mm neck is compatible with a 28/410 lotion pump, trigger or screw cap, so it adapts to pump, spray or screw formats wi so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 28/410 lotion pump, trigger or screw cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 220 ml ≈ 7.4 fl oz, Ø28 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 52 mm diameter across the base, 157 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 3.02 : 1 (157 mm tall, 52 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 220 ml stated capacity inside a 425 ml rectangular outline — 52 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 29 g body weight = 13.2 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 135 mm — from the base to the 140 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 163 mm (π × 52 mm) — a wrap-around label up to 150 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 150 × 135 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø28 mm screw neck — the 28/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 220 ml the Ø28 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 220 ml model (210 ml, 200 ml, 222 ml, 225 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0167-225 | 225 ml | 25 g | Ø24 mm | 136 mm | +5 ml larger |
| SJT0180-222 | 222 ml | 39 g | Ø28 mm | 191 mm | +2 ml larger · same neck |
| SJT0510-220 | 220 ml | 29 g | Ø28 mm | 157 mm | This model |
| SJT0150-210 | 210 ml | 25 g | Ø24 mm | 195 mm | 10 ml smaller |
| SJT0564-200 | 200 ml | 23 g | Ø20 mm | 153 mm | 20 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
