PET Cosmetic Bottle 350ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0519-350. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 350 ml (11.8 fl oz) |
| Bottle Weight | 30 g |
| Neck Finish | 24 mm |
| Total Height | 159 mm |
| Shoulder Height | 141 mm |
| Base (W × D) | 64 × 64 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size PET bottle: body lotion, hand wash, facial mist, shampoo and daily skincare. Its clarity and light weight suit retail shelves, while the neck accepts lotion pumps, sprayers or flip-top closures.
SJT0519-350 is a 350 ml PET bottle in the body & hair-care size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for body lotions, shampoos, conditioners and shower gels. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

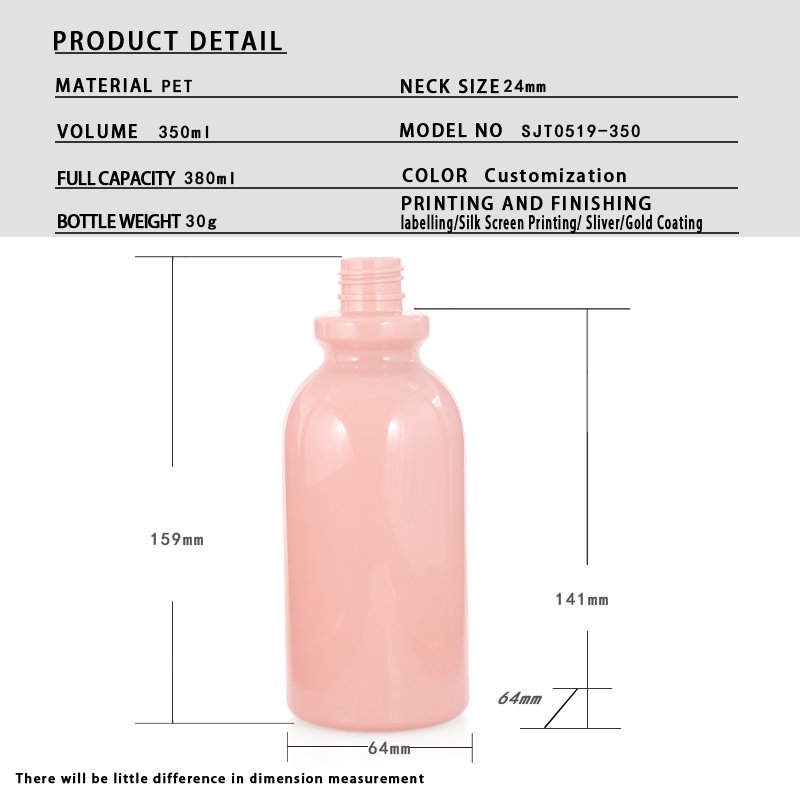

SJT0519-350 is 159 mm tall on a 64 x 64 mm base, so the height is 2.48 times the widest base dimension and the footprint is 41.0 cm².
| Total height | 159 mm |
|---|---|
| Base (W x D) | 64 x 64 mm |
| Footprint | 41.0 cm² |
| Height to widest base | 2.48 : 1 |
| Average content per mm | 2.20 ml |
| Empty weight per 100 mm | 18.87 g |
| Empty weight per litre held | 85.7 g |
SJT0120-350 is the closest thing we mould to SJT0519-350 at 350 ml: 1 mm shorter; a 62 x 62 mm base against 64 x 64 mm here; the same 30 g empty. Moving between the two needs no new tooling.
| SKU | SJT0120-350 |
|---|---|
| Capacity | 350 ml (11.8 fl oz) |
| Height | 158 mm |
| Base | 62 × 62 mm |
| Neck | 24/410 |
| Weight | 30 g |
Stated capacity on SJT0519-350 is 350 ml, inside a body 159 mm tall. Holding the filler at a 90% line puts 315 ml in every unit, so a 500 L batch fills 1,587 of them.
| Batch of product | 350 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 1,587 | 47.6 kg |
| 1,000 L | 3,174 | 95.2 kg |
| 5,000 L | 15,873 | 476.2 kg |
5,000 units of SJT0519-350 is 1,750 L of finished product, and 100,000 units is 35,000 L, which takes 3,000 kg of resin at 30 g a bottle. MOQ is per colour rather than per SKU. 159 mm and 350 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 350 ml ≈ 11.8 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 64 mm diameter across the base, 159 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.48 : 1 (159 mm tall, 64 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 350 ml stated capacity inside a 651 ml rectangular outline — 54 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 30 g body weight = 8.6 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 136 mm — from the base to the 141 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 201 mm (π × 64 mm) — a wrap-around label up to 185 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 185 × 136 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 350 ml the Ø24 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 350 ml model (340 ml, 340 ml, 360 ml, 360 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0078-360 | 360 ml | 32 g | Ø28 mm | 154 mm | +10 ml larger |
| SJT0489-360 | 360 ml | 39 g | Ø28 mm | 174 mm | +10 ml larger |
| SJT0519-350 | 350 ml | 30 g | Ø24 mm | 159 mm | This model |
| SJT0549-340 | 340 ml | 39 g | Ø28 mm | 143 mm | 10 ml smaller |
| SJT0279-340 | 340 ml | 39 g | Ø28 mm | 149 mm | 10 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
