PET Cosmetic Bottle 40ml
Download the complete PET bottle catalog PDF for offline viewing.

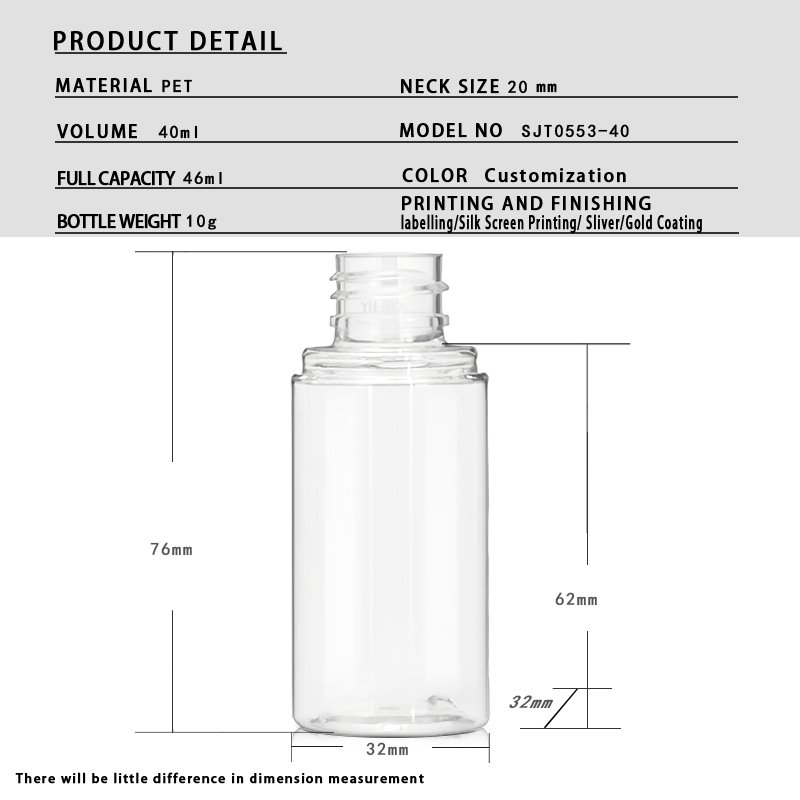

Full engineering parameters for SJT0553-40. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 40 ml (1.4 fl oz) |
| Bottle Weight | 10 g |
| Neck Finish | 20 mm |
| Total Height | 76 mm |
| Shoulder Height | 62 mm |
| Base (W × D) | 32 × 32 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small PET bottle: serums, facial toners, essential-oil blends, hand-sanitizer and travel-size skincare. The clear PET wall shows formula color, and the standard neck pairs with fine-mist sprayers, dropper or screw caps.
SJT0553-40 is a 40 ml PET bottle in the travel & sample size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for travel kits, hotel amenities, free samples and single-use sachets. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 40 ml ≈ 1.4 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 32 mm diameter across the base, 76 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.38 : 1 (76 mm tall, 32 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 40 ml stated capacity inside a 78 ml rectangular outline — 51 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 10 g body weight = 25.0 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 57 mm — from the base to the 62 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 101 mm (π × 32 mm) — a wrap-around label up to 92 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 92 × 57 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 40 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 40 ml model (35 ml, 30 ml, 50 ml, 50 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0024-50 | 50 ml | 8 g | Ø20 mm | 70 mm | +10 ml larger · same neck |
| SJT0165-50 | 50 ml | 5 g | Ø20 mm | 89 mm | +10 ml larger · same neck |
| SJT0553-40 | 40 ml | 10 g | Ø20 mm | 76 mm | This model |
| SJT0168-35 | 35 ml | 5 g | Ø20 mm | 101 mm | 5 ml smaller · same neck |
| SJT0419-30 | 30 ml | 5 g | Ø20 mm | 80 mm | 10 ml smaller · same neck |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
