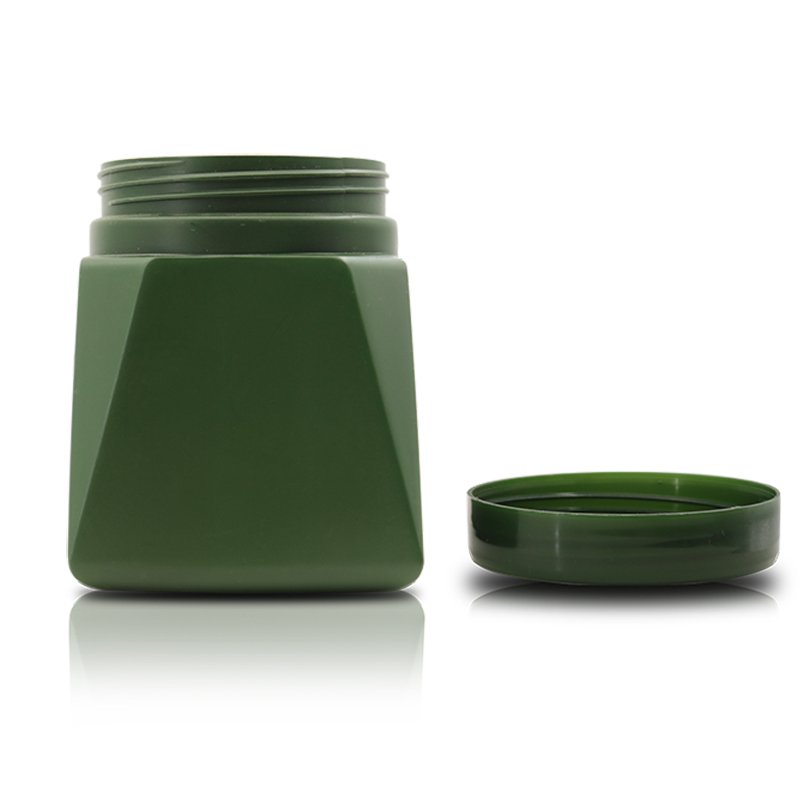

PE Cosmetic Bottle 500ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1611-500. Nominal factory values — custom colors, printing and finishing available on all parameters below.

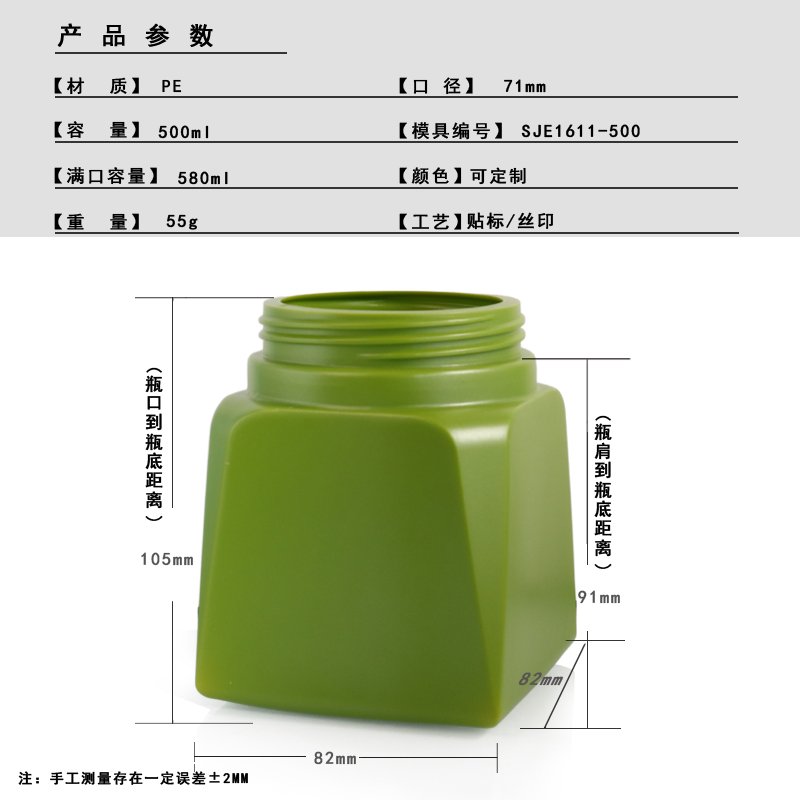

| Dimensions & Capacity | |
| Nominal Capacity | 500 ml (16.9 fl oz) |
| Overflow Capacity (brimful) | 580 ml (19.6 fl oz) |
| Bottle Weight | 55 g |
| Total Height | 105 mm |
| Shoulder Height | 91 mm |
| Base (W × D) | 91 × 82 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 250 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 45 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size HDPE bottle: shampoo, conditioner, body wash, hand soap and general personal-care packaging. HDPE resists everyday chemicals and squeezes cleanly to the last drop.
SJE1611-500 is a 500 ml PE / HDPE bottle in the body & hair-care size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for body lotions, shampoos, conditioners and shower gels. It works with standard screw, pump or flip-top closures to match your filling line.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 500 ml ≈ 16.9 fl oz). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 91 mm diameter across the base, 105 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 1.15 : 1 (105 mm tall, 91 mm wide). Low-profile, wide-footed format: the most stable of the three under high-speed filling and the easiest to stack. |
| Fill-to-outline ratio | 500 ml stated capacity inside a 784 ml rectangular outline — 64 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 55 g body weight = 11.0 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 86 mm — from the base to the 91 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 286 mm (π × 91 mm) — a wrap-around label up to 263 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 263 × 86 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
Nearest PE / HDPE formats to this 500 ml model (480 ml, 468 ml, 505 ml, 525 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1640-525 | 525 ml | 54 g | Ø32 mm | 208 mm | +25 ml larger |
| SJE1854-505 | 505 ml | 50 g | Ø28 mm | 154 mm | +5 ml larger |
| SJE1611-500 | 500 ml | 55 g | Ø— mm | 105 mm | This model |
| SJE1848-480 | 480 ml | 40 g | Ø28 mm | 152 mm | 20 ml smaller |
| SJE1627-468 | 468 ml | 40 g | Ø28 mm | 209 mm | 32 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
