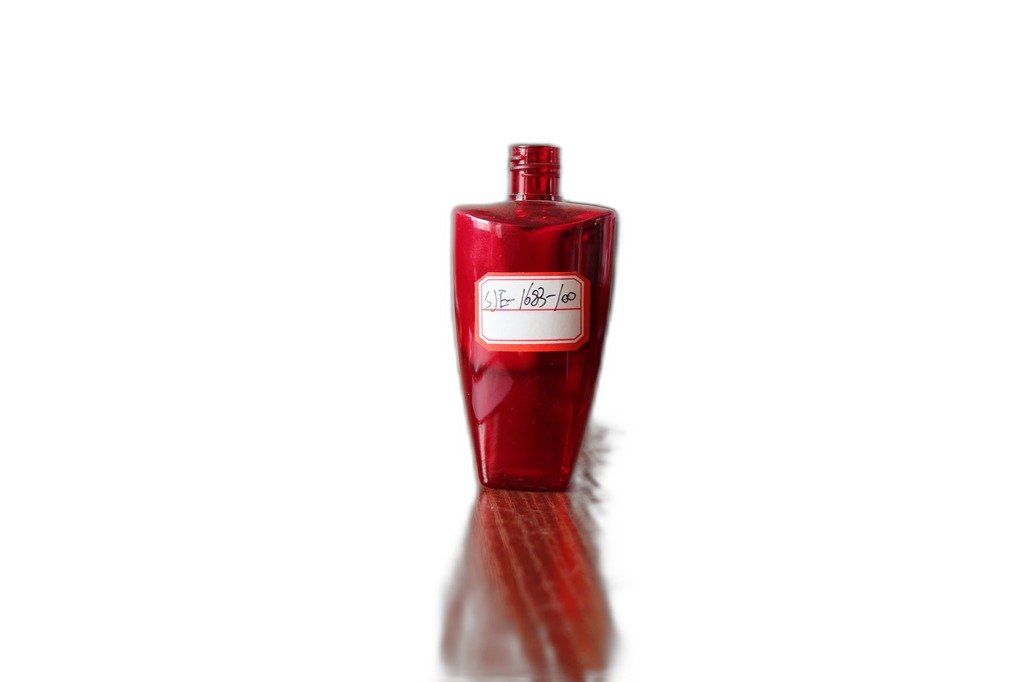

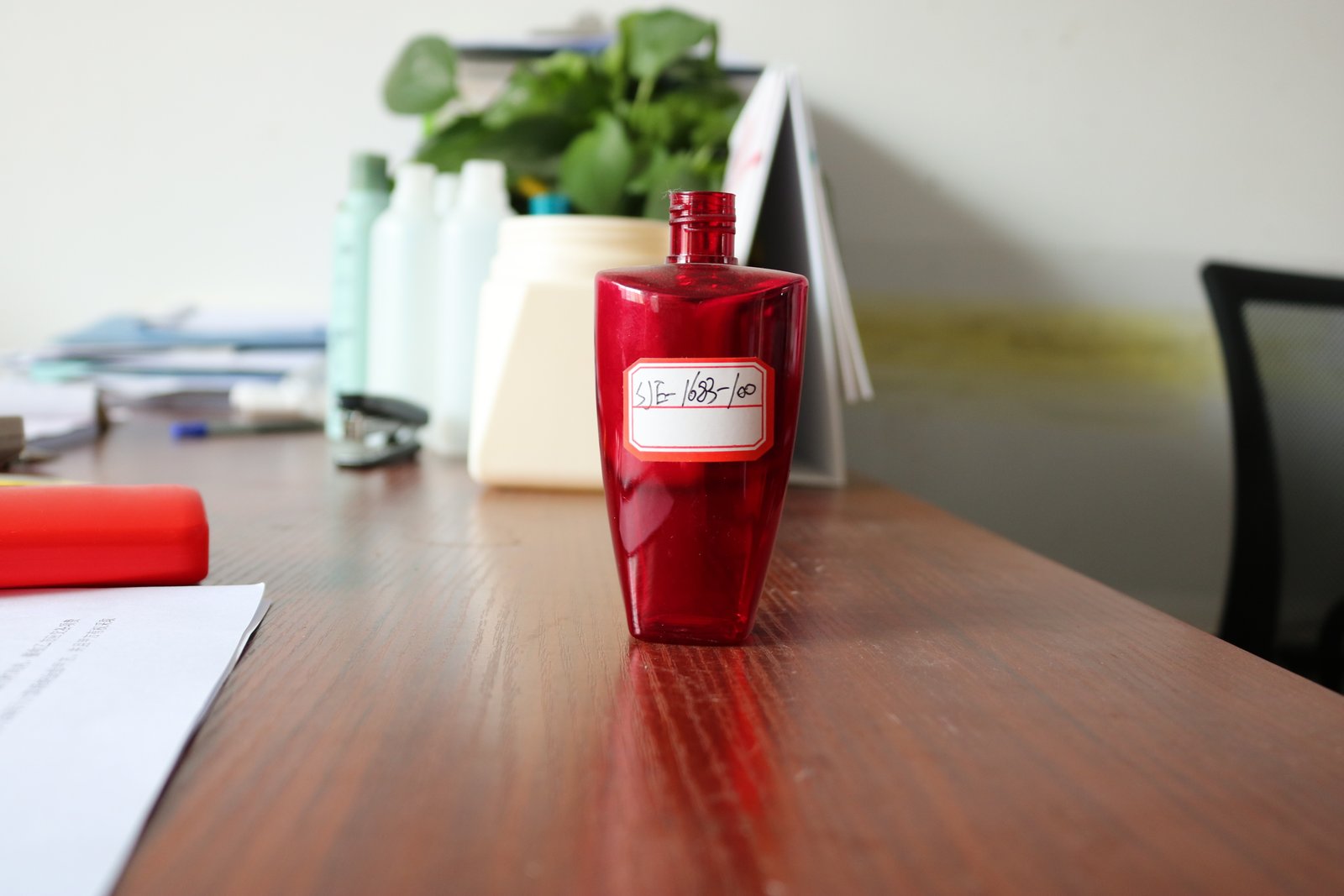

PETG Cosmetic Bottle 100ml
Download the complete PET bottle catalog PDF for offline viewing.

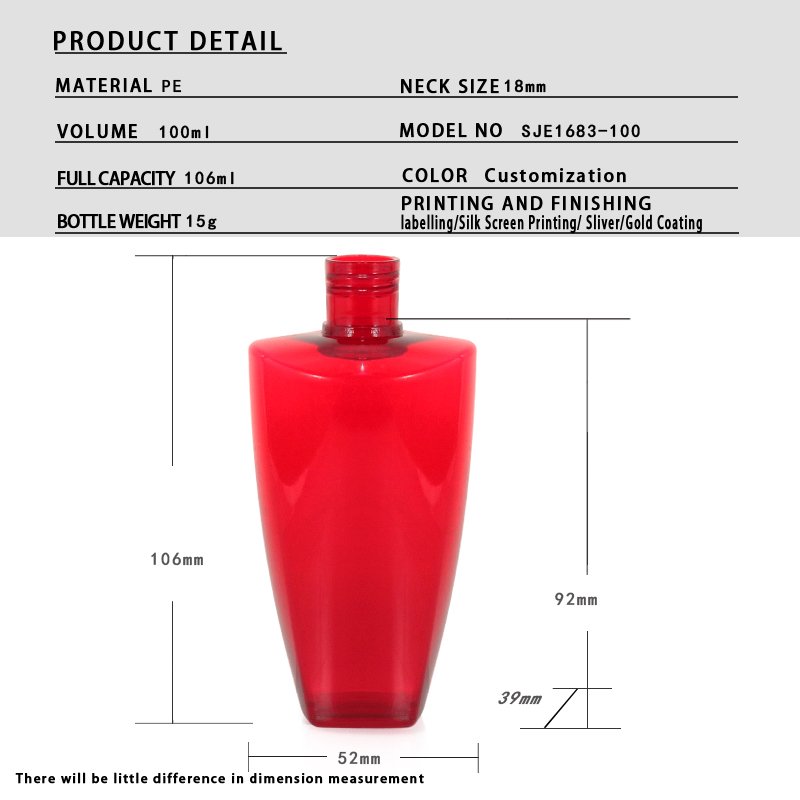

Full engineering parameters for SJE1683-100. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 100 ml (3.4 fl oz) |
| Overflow Capacity (brimful) | 106 ml (3.6 fl oz) |
| Bottle Weight | 15 g |
| Neck Finish | 18 mm |
| Total Height | 106 mm |
| Shoulder Height | 92 mm |
| Base (W × D) | 52 × 39 mm |
| Material & Compliance | |
| Material | PETG |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 366 pcs / carton |
| Carton Dimensions (L×W×H) | 55 × 40 × 36 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this PETG bottle: premium skincare, fragrance, treatment lines and cosmetic products where glass-like clarity is part of the shelf appeal. PETG also suits formulas with higher alcohol or essential-oil content.
SJE1683-100 is a 100 ml PETG bottle in the travel & trial size range. It suits premium skincare, high-clarity serums, boutique cosmetics and display jars, and is commonly specified for travel-size toiletry, trial kits, hotel amenities and promotional samples. The 18 mm neck is compatible with an 18/415 fine-mist sprayer or small disc-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, silk-screen and hot-stamp with no surface pretreatment are available on this PETG body. Pair it with a matching an 18/415 fine-mist sprayer or small disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PETG, 100 ml ≈ 3.4 fl oz, Ø18 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Oval body — 52 × 39 mm base (1.33 : 1 width-to-depth). A softer cross-section that sits comfortably in the hand; artwork can run as a wrap or as two facing panels. |
| Height to width | 2.04 : 1 (106 mm tall, 52 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 100 ml stated capacity inside a 215 ml rectangular outline — 47 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 15 g body weight = 15.0 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 87 mm — from the base to the 92 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 52 mm flat face → artwork up to 44 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 44 × 87 mm (W × H) flat label on each face, or a wrap label over the 39 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø18 mm screw neck — the 18/410 or 18/415 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | dropper, fine-mist sprayer or small disc-top cap. |
| Dosing note | At 100 ml the Ø18 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PETG formats to this 100 ml model (200 ml, 250 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |

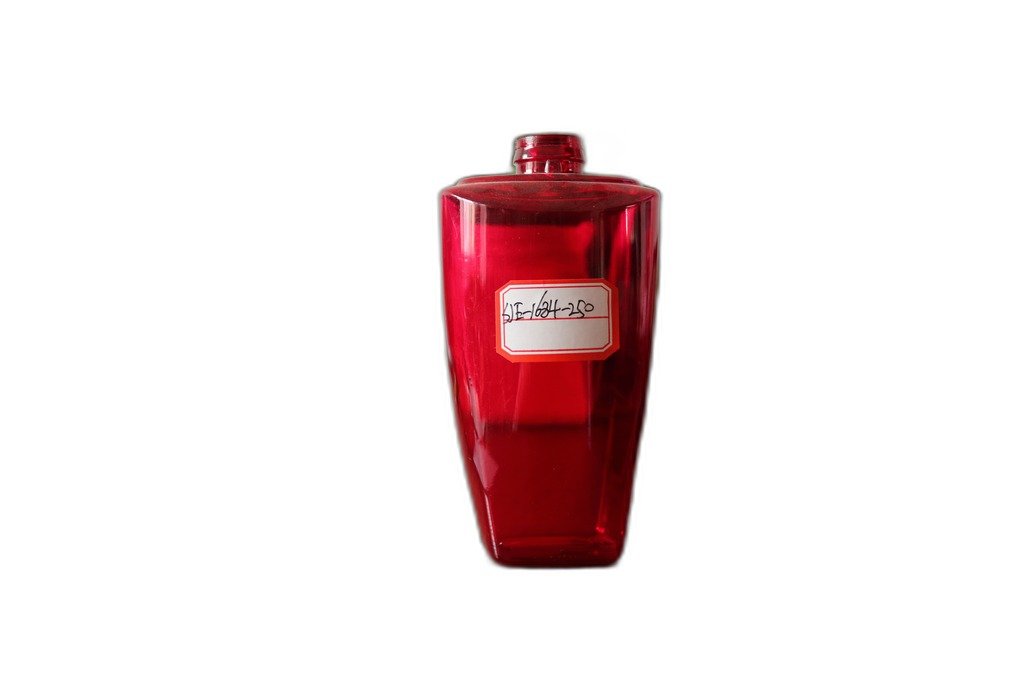

| SJE1684-250 | 250 ml | 27 g | Ø24 mm | 132 mm | +150 ml larger |

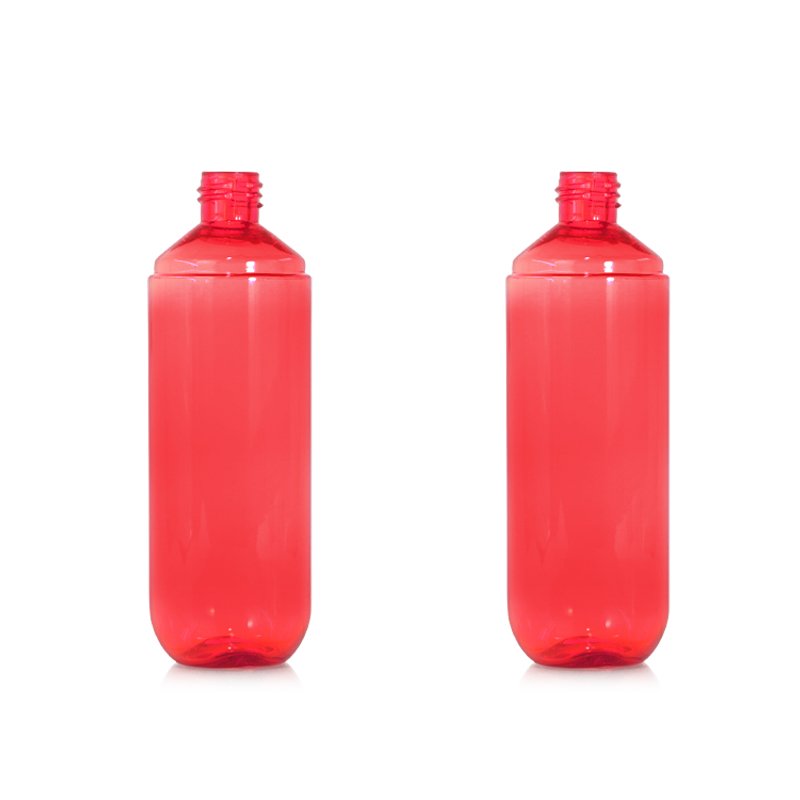

| SJE1823-200 | 200 ml | 33 g | Ø20 mm | 146 mm | +100 ml larger |
| SJE1683-100 | 100 ml | 15 g | Ø18 mm | 106 mm | This model |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
