PE Cosmetic Bottle 100ml
Download the complete PE / HDPE bottle catalog PDF.

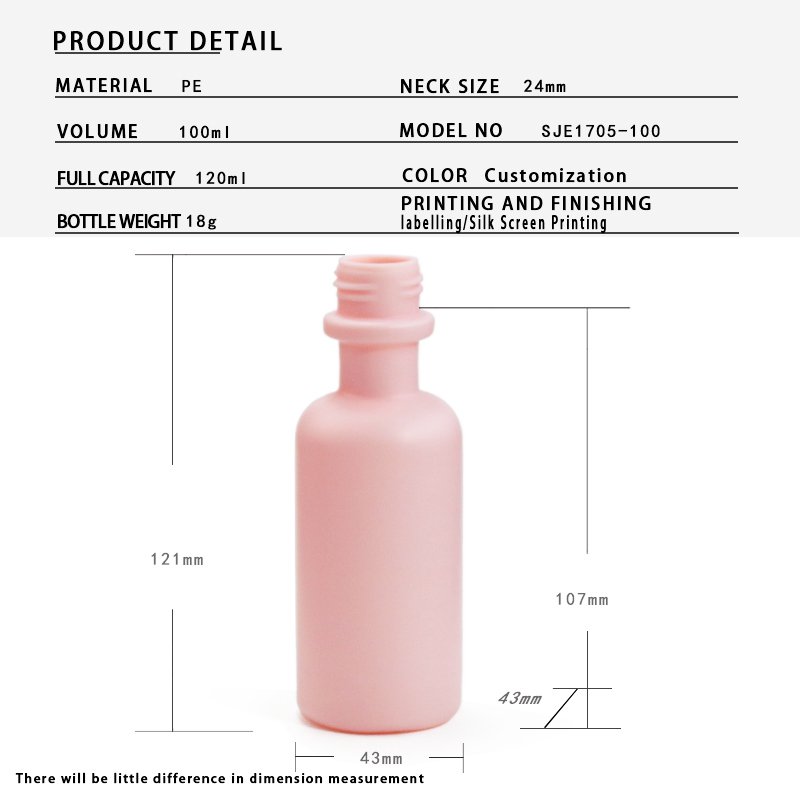

Full engineering parameters for SJE1705-100. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 100 ml (3.4 fl oz) |
| Overflow Capacity (brimful) | 120 ml (4.1 fl oz) |
| Bottle Weight | 18 g |
| Neck Finish | 24 mm |
| Total Height | 121 mm |
| Shoulder Height | 107 mm |
| Base (W × D) | 43 × 43 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.
SJE1705-100 is a 100 ml PE / HDPE bottle in the travel & trial size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for travel-size toiletry, trial kits, hotel amenities and promotional samples. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold cha so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 100 ml ≈ 3.4 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 43 mm diameter across the base, 121 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.81 : 1 (121 mm tall, 43 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 100 ml stated capacity inside a 224 ml rectangular outline — 45 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 18 g body weight = 18.0 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 102 mm — from the base to the 107 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 135 mm (π × 43 mm) — a wrap-around label up to 124 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 124 × 102 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 100 ml the Ø24 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 100 ml model (90 ml, 90 ml, 105 ml, 120 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0146-120 | 120 ml | 15 g | Ø24 mm | 124 mm | +20 ml larger · same neck |
| SJE0133-105 | 105 ml | 20 g | Ø24 mm | 137 mm | +5 ml larger · same neck |
| SJE1705-100 | 100 ml | 18 g | Ø24 mm | 121 mm | This model |
| SJE1731-90 | 90 ml | 17 g | Ø24 mm | 115 mm | 10 ml smaller · same neck |
| SJE1718-90 | 90 ml | 16 g | Ø20 mm | 106 mm | 10 ml smaller |
