PE Cosmetic Bottle 60ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1807-60. Nominal factory values — custom colors, printing and finishing available on all parameters below.

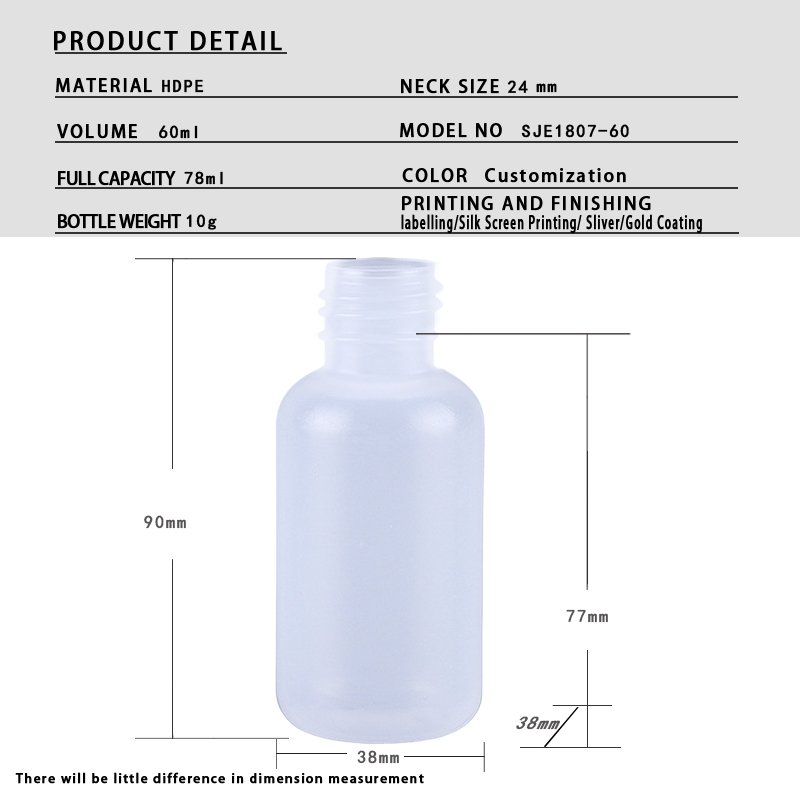

| Dimensions & Capacity | |
| Nominal Capacity | 60 ml (2.0 fl oz) |
| Bottle Weight | 10 g |
| Neck Finish | 24 mm |
| Total Height | 90 mm |
| Shoulder Height | 77 mm |
| Base (W × D) | 38 × 38 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 745 pcs / carton |
| Carton Dimensions (L×W×H) | 56 × 40 × 47 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.
SJE1807-60 is a 60 ml PE / HDPE bottle in the travel & trial size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for travel-size toiletry, trial kits, hotel amenities and promotional samples. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold cha so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 60 ml ≈ 2.0 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 38 mm diameter across the base, 90 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.37 : 1 (90 mm tall, 38 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 60 ml stated capacity inside a 130 ml rectangular outline — 46 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 10 g body weight = 16.7 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 72 mm — from the base to the 77 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 119 mm (π × 38 mm) — a wrap-around label up to 110 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 110 × 72 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 60 ml the Ø24 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 60 ml model (50 ml, 50 ml, 70 ml, 80 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0206-80 | 80 ml | 13 g | Ø32 mm | 60 mm | +20 ml larger |
| SJE1607-70 | 70 ml | 13 g | Ø20 mm | 100 mm | +10 ml larger |
| SJE1807-60 | 60 ml | 10 g | Ø24 mm | 90 mm | This model |
| SJE1904-50 | 50 ml | 14 g | Ø20 mm | 110 mm | 10 ml smaller |
| SJE1903-50 | 50 ml | 15 g | Ø20 mm | 110 mm | 10 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
