PE Cosmetic Bottle 60ml
Download the complete PE / HDPE bottle catalog PDF.

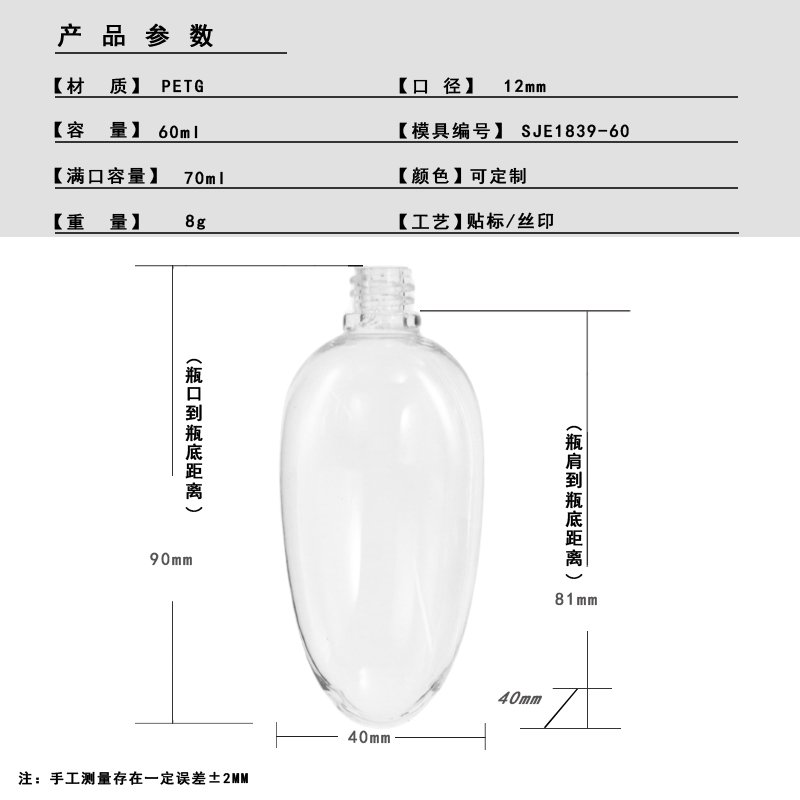

Full engineering parameters for SJE1839-60. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 60 ml (2.0 fl oz) |
| Overflow Capacity (brimful) | 70 ml (2.4 fl oz) |
| Bottle Weight | 8 g |
| Total Height | 90 mm |
| Shoulder Height | 81 mm |
| Base (W × D) | 40 × 40 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.
SJE1839-60 is a 60 ml PE / HDPE bottle in the travel & trial size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for travel-size toiletry, trial kits, hotel amenities and promotional samples. It works with standard screw, pump or flip-top closures to match your filling line.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 60 ml ≈ 2.0 fl oz). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 40 mm diameter across the base, 90 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.25 : 1 (90 mm tall, 40 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 60 ml stated capacity inside a 144 ml rectangular outline — 42 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 8 g body weight = 13.3 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 76 mm — from the base to the 81 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 126 mm (π × 40 mm) — a wrap-around label up to 116 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 116 × 76 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
Nearest PE / HDPE formats to this 60 ml model (50 ml, 50 ml, 70 ml, 80 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0206-80 | 80 ml | 13 g | Ø32 mm | 60 mm | +20 ml larger |
| SJE1607-70 | 70 ml | 13 g | Ø20 mm | 100 mm | +10 ml larger |
| SJE1839-60 | 60 ml | 8 g | Ø— mm | 90 mm | This model |
| SJE1904-50 | 50 ml | 14 g | Ø20 mm | 110 mm | 10 ml smaller |
| SJE1903-50 | 50 ml | 15 g | Ø20 mm | 110 mm | 10 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
