PE Cosmetic Bottle 70ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1607-70. Nominal factory values — custom colors, printing and finishing available on all parameters below.

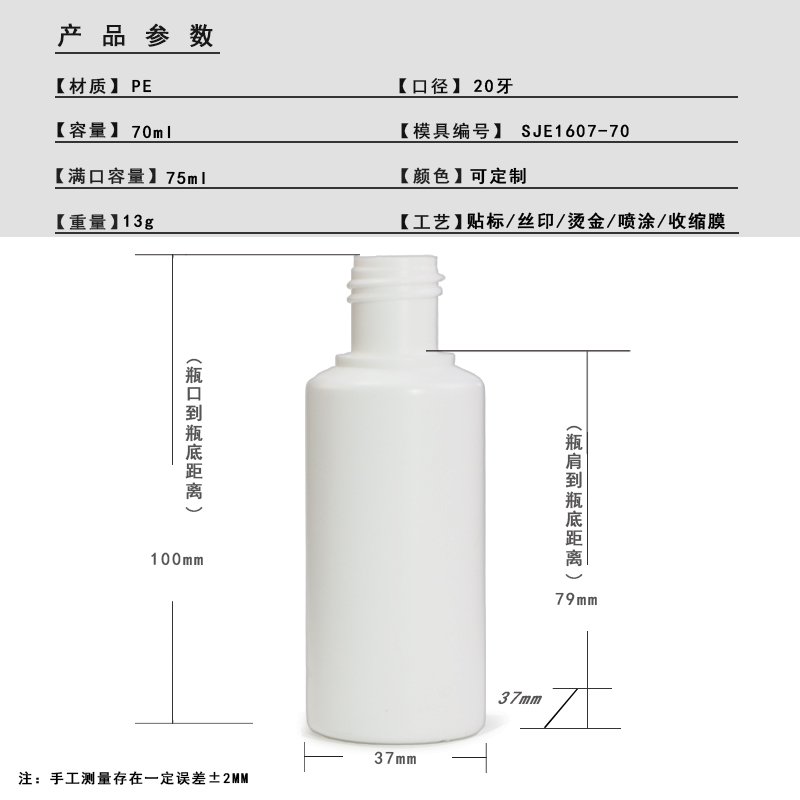

| Dimensions & Capacity | |
| Nominal Capacity | 70 ml (2.4 fl oz) |
| Overflow Capacity (brimful) | 75 ml (2.5 fl oz) |
| Bottle Weight | 13 g |
| Neck Finish | 20/410 |
| Total Height | 100 mm |
| Shoulder Height | 79 mm |
| Base (W × D) | 37 × 37 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 1000 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 42 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.
SJE1607-70 is a 70 ml PE / HDPE bottle in the travel & trial size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for travel-size toiletry, trial kits, hotel amenities and promotional samples. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 70 ml ≈ 2.4 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 37 mm diameter across the base, 100 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.70 : 1 (100 mm tall, 37 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 70 ml stated capacity inside a 137 ml rectangular outline — 51 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 13 g body weight = 18.6 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 74 mm — from the base to the 79 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 116 mm (π × 37 mm) — a wrap-around label up to 107 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 107 × 74 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 70 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 70 ml model (60 ml, 60 ml, 80 ml, 80 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0206-80 | 80 ml | 13 g | Ø32 mm | 60 mm | +10 ml larger |
| SJE1788-80 | 80 ml | 20 g | Ø40 mm | 76 mm | +10 ml larger |
| SJE1607-70 | 70 ml | 13 g | Ø20 mm | 100 mm | This model |
| SJE1807-60 | 60 ml | 10 g | Ø24 mm | 90 mm | 10 ml smaller |
| SJE1760-60 | 60 ml | 19 g | Ø20 mm | 70 mm | 10 ml smaller · same neck |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
