PE Cosmetic Bottle 170ml
Download the complete PE / HDPE bottle catalog PDF.

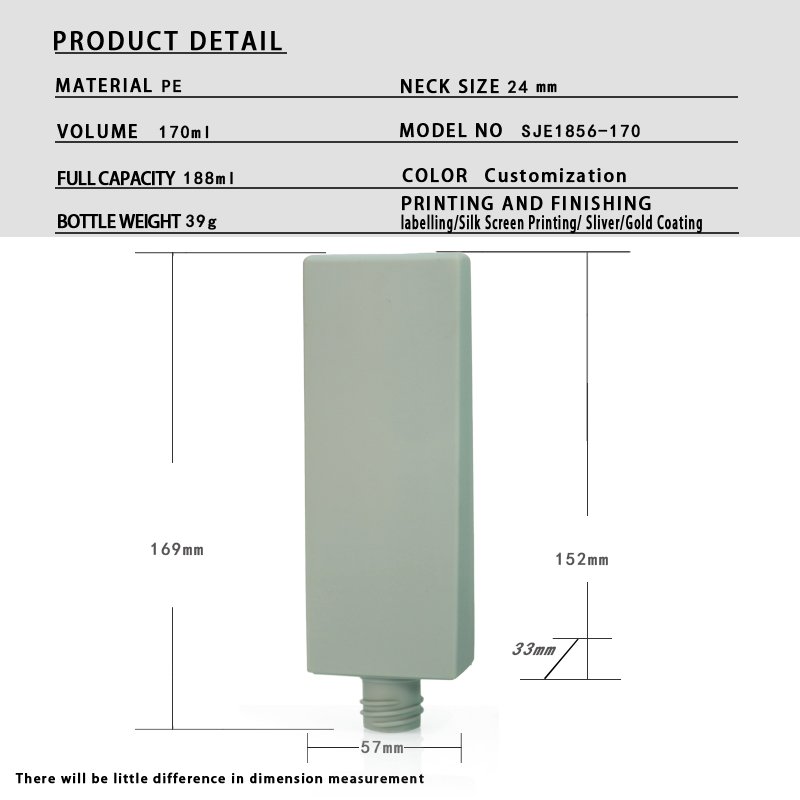

Full engineering parameters for SJE1856-170. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 170 ml (5.7 fl oz) |
| Bottle Weight | 39 g |
| Neck Finish | 24 mm |
| Total Height | 169 mm |
| Shoulder Height | 152 mm |
| Base (W × D) | 57 × 33 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 234 pcs / carton |
| Carton Dimensions (L×W×H) | 55 × 40 × 36 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size HDPE bottle: shampoo, conditioner, body wash, hand soap and general personal-care packaging. HDPE resists everyday chemicals and squeezes cleanly to the last drop.
SJE1856-170 is a 170 ml PE / HDPE bottle in the daily face-care size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 170 ml ≈ 5.7 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 57 × 33 mm base (1.73 : 1 width-to-depth). Two parallel 57 mm faces carry front and back artwork, while the narrow 33 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.96 : 1 (169 mm tall, 57 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 170 ml stated capacity inside a 318 ml rectangular outline — 53 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 39 g body weight = 22.9 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 147 mm — from the base to the 152 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 57 mm flat face → artwork up to 49 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 49 × 147 mm (W × H) flat label on each face, or a wrap label over the 33 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 170 ml the Ø24 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 170 ml model (150 ml, 150 ml, 180 ml, 180 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0097-180 | 180 ml | 19 g | Ø30 mm | 160 mm | +10 ml larger |
| SJE0143-180 | 180 ml | 25 g | Ø24 mm | 145 mm | +10 ml larger · same neck |
| SJE1856-170 | 170 ml | 39 g | Ø24 mm | 169 mm | This model |
| SJE1873-150 | 150 ml | 24 g | Ø20 mm | 95 mm | 20 ml smaller |
| SJE1849-150 | 150 ml | 27 g | Ø42 mm | 140 mm | 20 ml smaller |
