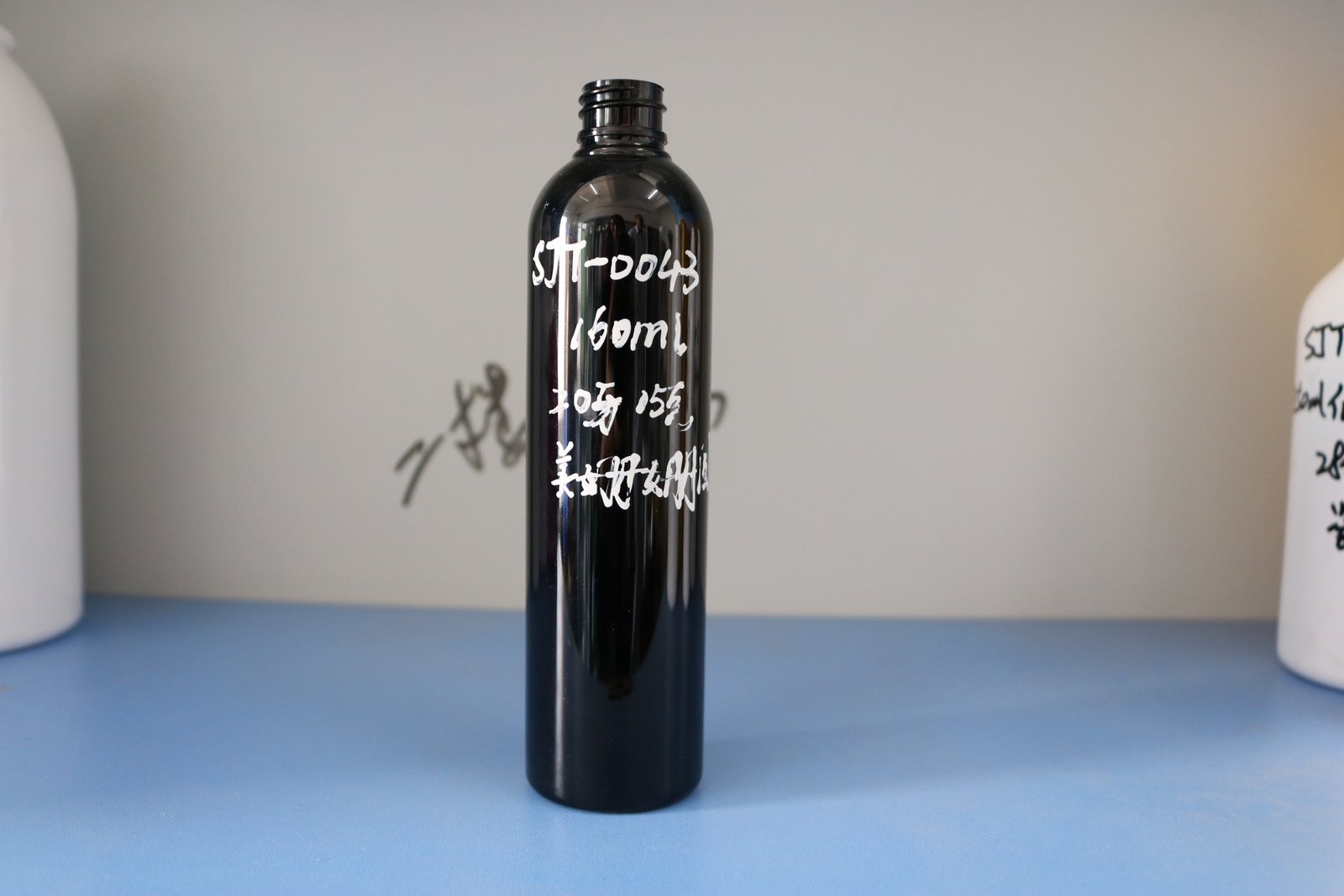

PET Cosmetic Bottle 160ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0043-160. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 160 ml (5.4 fl oz) |
| Overflow Capacity (brimful) | 168 ml (5.7 fl oz) |
| Bottle Weight | 15 g |
| Neck Finish | 20/410 |
| Total Height | 156 mm |
| Shoulder Height | 141 mm |
| Base (W × D) | 40 × 40 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 390 pcs / carton |
| Carton Dimensions (L×W×H) | 56 × 56 × 33 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size PET bottle: body lotion, hand wash, facial mist, shampoo and daily skincare. Its clarity and light weight suit retail shelves, while the neck accepts lotion pumps, sprayers or flip-top closures.
SJT0043-160 is a 160 ml PET bottle in the daily face-care size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it adapts to pump, spray or screw form so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

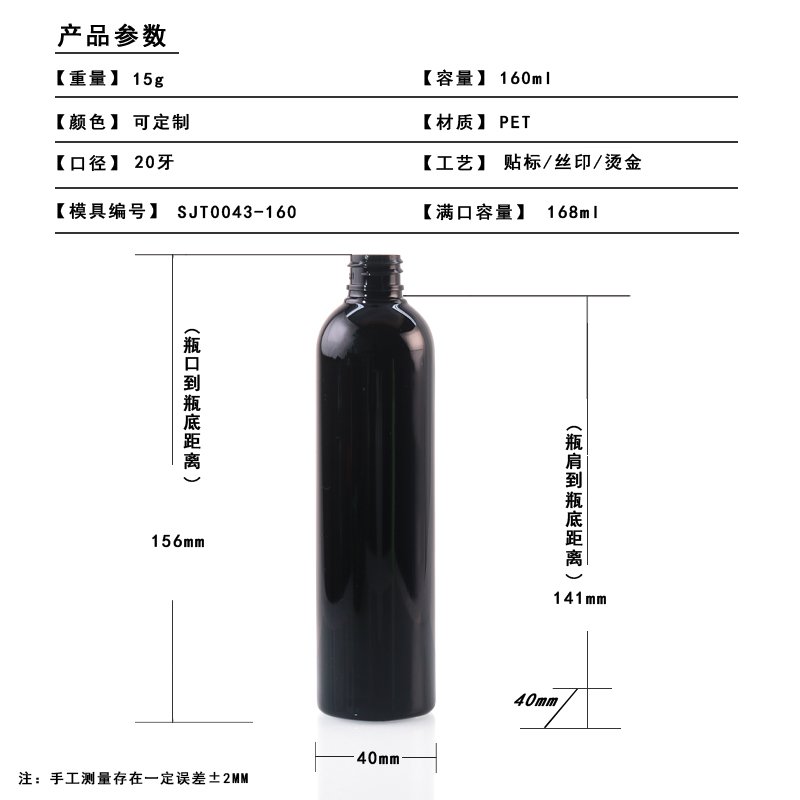

Everything below is calculated from the nominal dimensions in the specification table above (PET, 160 ml ≈ 5.4 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 40 mm diameter across the base, 156 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 3.90 : 1 (156 mm tall, 40 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 160 ml stated capacity inside a 250 ml rectangular outline — 64 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 15 g body weight = 9.4 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 136 mm — from the base to the 141 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 126 mm (π × 40 mm) — a wrap-around label up to 116 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 116 × 136 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 160 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 160 ml model (150 ml, 150 ml, 177 ml, 180 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0504-180 | 180 ml | 23 g | Ø20 mm | 175 mm | +20 ml larger · same neck |
| SJT0548-177 | 177 ml | 25 g | Ø24 mm | 150 mm | +17 ml larger |
| SJT0043-160 | 160 ml | 15 g | Ø20 mm | 156 mm | This model |
| SJT0568-150 | 150 ml | 19 g | Ø24 mm | 128 mm | 10 ml smaller |
| SJT0557-150 | 150 ml | 30 g | Ø24 mm | 142 mm | 10 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
