PET Cosmetic Bottle 550ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0517-550. Nominal factory values — custom colors, printing and finishing available on all parameters below.

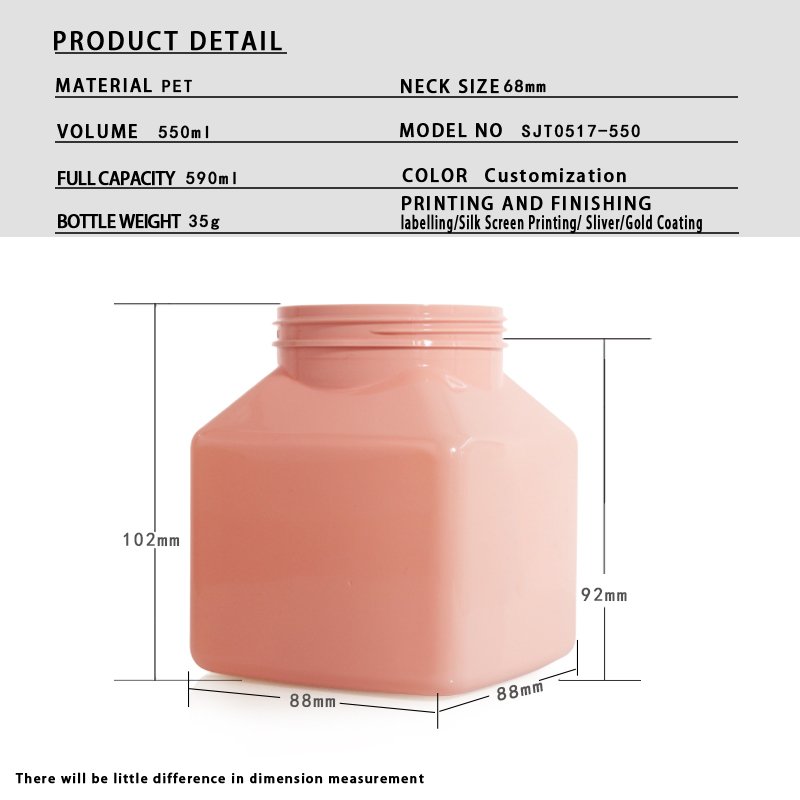

| Dimensions & Capacity | |
| Nominal Capacity | 550 ml (18.6 fl oz) |
| Bottle Weight | 35 g |
| Total Height | 102 mm |
| Shoulder Height | 92 mm |
| Base (W × D) | 88 × 88 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 140 pcs / carton |
| Carton Dimensions (L×W×H) | 66 × 50 × 42 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large PET bottle: refillable body wash, shampoo, conditioner and household-care volumes. Large formats cut per-unit packaging cost while keeping a clean, premium look.
SJT0517-550 is a 550 ml PET bottle in the family & refill size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for family-size body care, refill packs and value bundles. It works with standard screw, pump or flip-top closures t so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 550 ml ≈ 18.6 fl oz). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 88 mm diameter across the base, 102 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 1.16 : 1 (102 mm tall, 88 mm wide). Low-profile, wide-footed format: the most stable of the three under high-speed filling and the easiest to stack. |
| Fill-to-outline ratio | 550 ml stated capacity inside a 790 ml rectangular outline — 70 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 35 g body weight = 6.4 g per 100 ml. Lightweight range: lower resin cost per unit and cheaper freight at equal carton count. |
| Label & decoration zone | |
| Usable label height | Up to 87 mm — from the base to the 92 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 276 mm (π × 88 mm) — a wrap-around label up to 254 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 254 × 87 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
Nearest PET formats to this 550 ml model (530 ml, 530 ml, 569 ml, 580 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0264-580 | 580 ml | 55 g | Ø32 mm | 195 mm | +30 ml larger |
| SJT0281-569 | 569 ml | 55 g | Ø28 mm | 210 mm | +19 ml larger |
| SJT0517-550 | 550 ml | 35 g | Ø— mm | 102 mm | This model |
| SJT0599-530 | 530 ml | 47 g | Ø32 mm | 174 mm | 20 ml smaller |
| SJT0550-530 | 530 ml | 47 g | Ø32 mm | 160 mm | 20 ml smaller |
