PE Cosmetic Bottle 100ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE0215-100. Nominal factory values — custom colors, printing and finishing available on all parameters below.

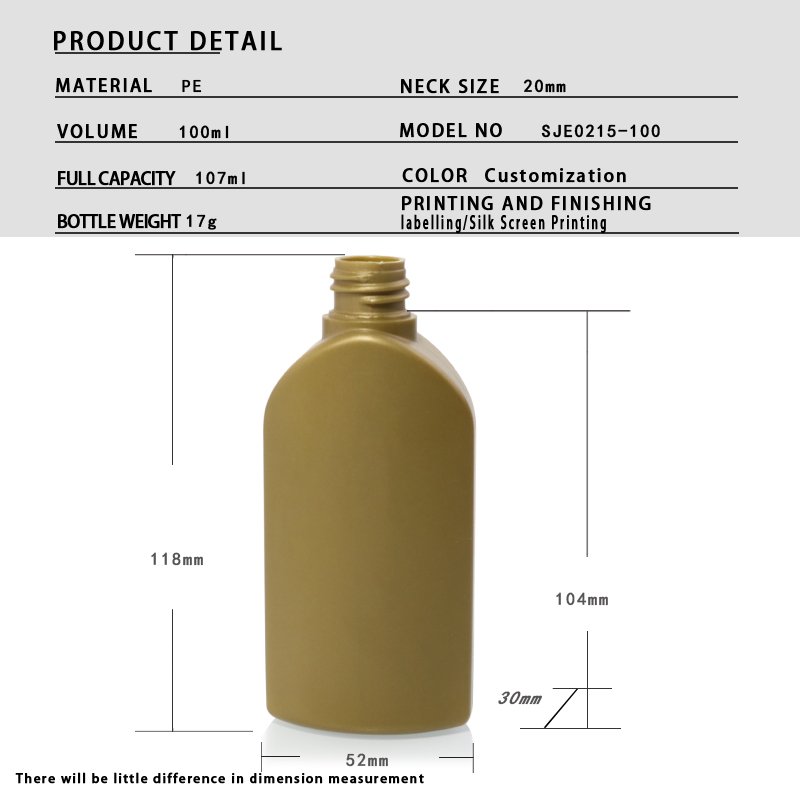

| Dimensions & Capacity | |
| Nominal Capacity | 100 ml (3.4 fl oz) |
| Bottle Weight | 17 g |
| Neck Finish | 20 mm |
| Total Height | 118 mm |
| Shoulder Height | 104 mm |
| Base (W × D) | 52 × 30 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 594 pcs / carton |
| Carton Dimensions (L×W×H) | 66 × 50 × 38 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.

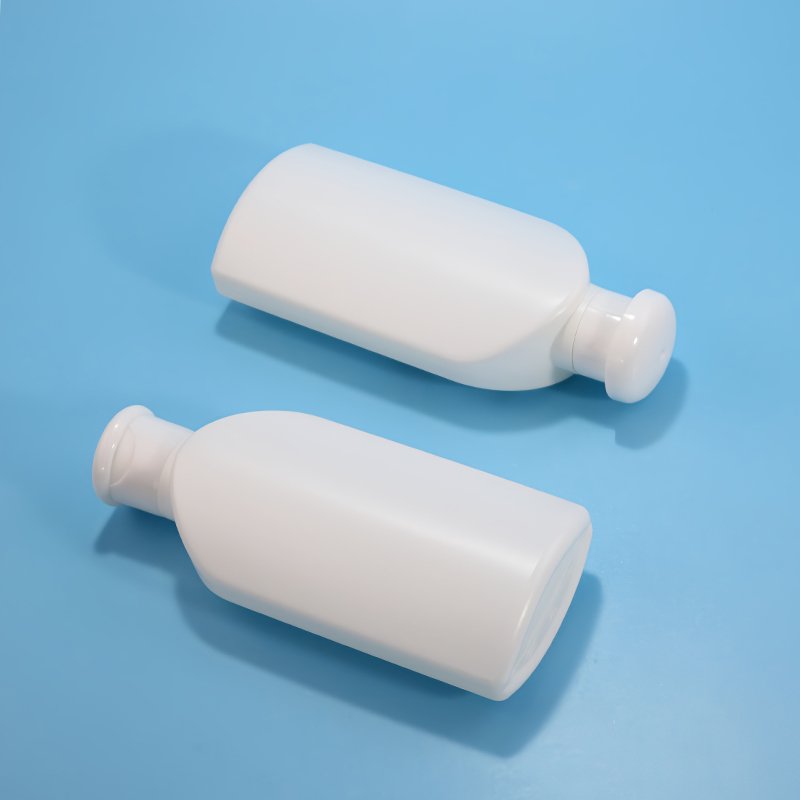

SJE0215-100 is a 100 ml PE / HDPE bottle in the travel & trial size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for travel-size toiletry, trial kits, hotel amenities and promotional samples. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 100 ml ≈ 3.4 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 52 × 30 mm base (1.73 : 1 width-to-depth). Two parallel 52 mm faces carry front and back artwork, while the narrow 30 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.27 : 1 (118 mm tall, 52 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 100 ml stated capacity inside a 184 ml rectangular outline — 54 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 17 g body weight = 17.0 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 99 mm — from the base to the 104 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 52 mm flat face → artwork up to 44 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 44 × 99 mm (W × H) flat label on each face, or a wrap label over the 30 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 100 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 100 ml model (90 ml, 90 ml, 105 ml, 120 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0146-120 | 120 ml | 15 g | Ø24 mm | 124 mm | +20 ml larger |

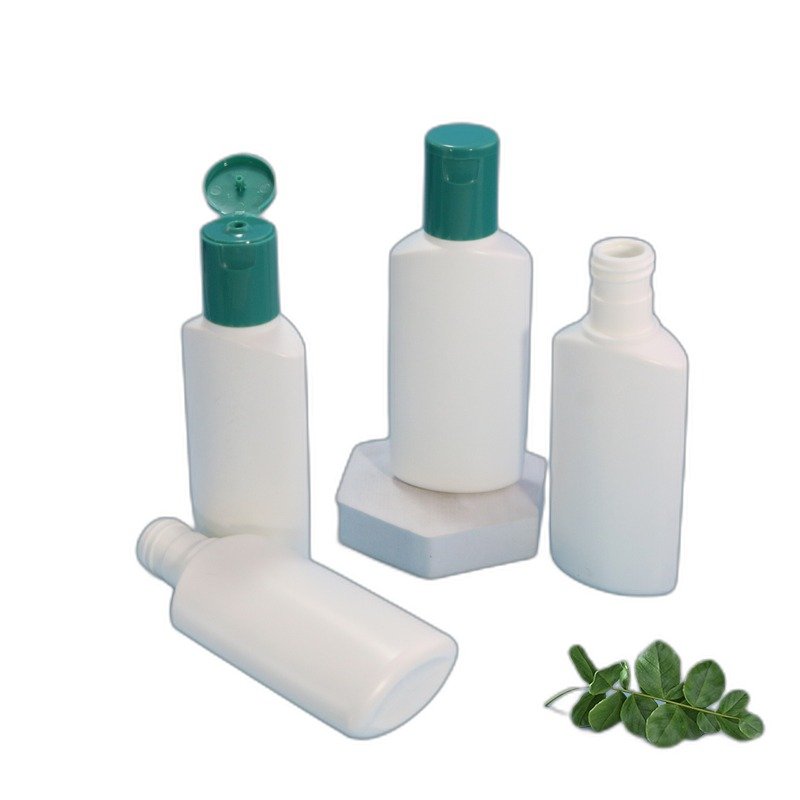

| SJE0133-105 | 105 ml | 20 g | Ø24 mm | 137 mm | +5 ml larger |
| SJE0215-100 | 100 ml | 17 g | Ø20 mm | 118 mm | This model |

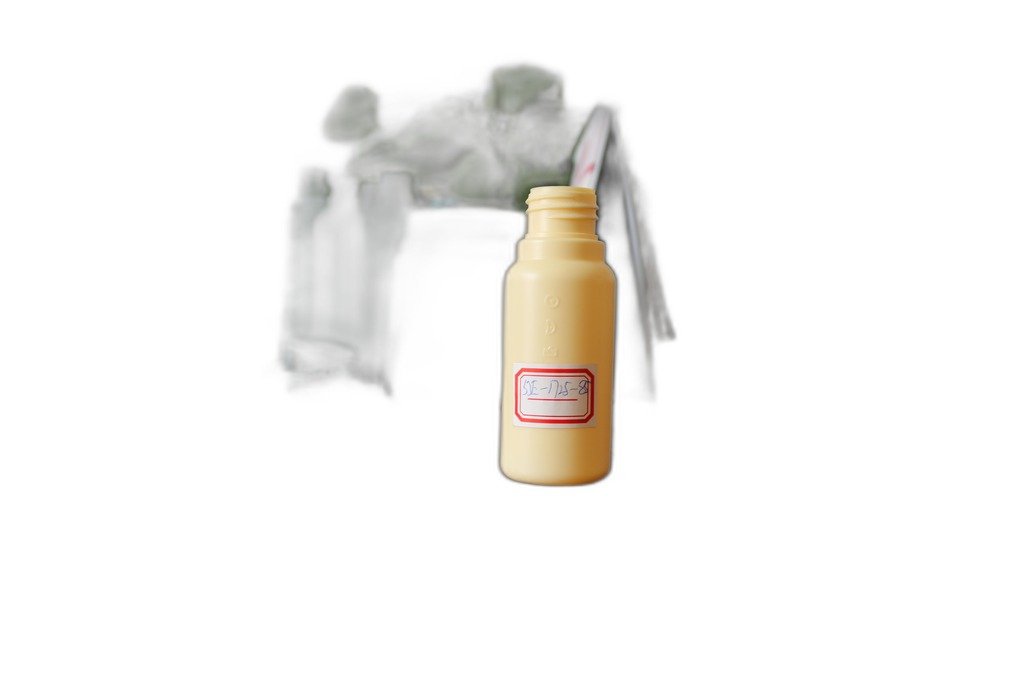

| SJE1731-90 | 90 ml | 17 g | Ø24 mm | 115 mm | 10 ml smaller |
| SJE1718-90 | 90 ml | 16 g | Ø20 mm | 106 mm | 10 ml smaller · same neck |
Alphagenix Pharma Inc (Philippines) — Biosurgix personal-care line — sources HDPE/PE bottles in this 100ml lotion/shampoo family with color-matched decoration. Read the case study →
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
