PETG Cosmetic Bottle 400ml
Download the complete PET bottle catalog PDF for offline viewing.

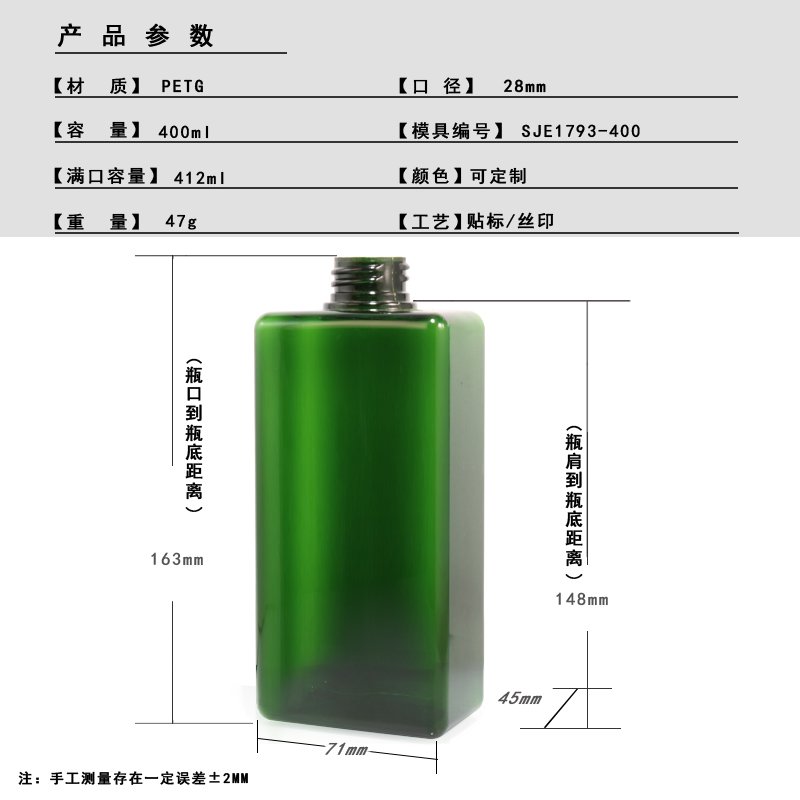

Full engineering parameters for SJE1793-400. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 400 ml (13.5 fl oz) |
| Overflow Capacity (brimful) | 412 ml (13.9 fl oz) |
| Bottle Weight | 47 g |
| Neck Finish | 28 mm |
| Total Height | 163 mm |
| Shoulder Height | 148 mm |
| Base (W × D) | 71 × 45 mm |
| Material & Compliance | |
| Material | PETG |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 318 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 52 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this PETG bottle: premium skincare, fragrance, treatment lines and cosmetic products where glass-like clarity is part of the shelf appeal. PETG also suits formulas with higher alcohol or essential-oil content.
SJE1793-400 is a 400 ml PETG bottle in the body & hair-care size range. It suits premium skincare, high-clarity serums, boutique cosmetics and display jars, and is commonly specified for body lotions, shampoos, conditioners and shower gels. The 28 mm neck is compatible with a 28/410 lotion pump, trigger or screw cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, silk-screen and hot-stamp with no surface pretreatment are available on this PETG body. Pair it with a matching a 28/410 lotion pump, trigger or screw cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PETG, 400 ml ≈ 13.5 fl oz, Ø28 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 71 × 45 mm base (1.58 : 1 width-to-depth). Two parallel 71 mm faces carry front and back artwork, while the narrow 45 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.30 : 1 (163 mm tall, 71 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 400 ml stated capacity inside a 521 ml rectangular outline — 77 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 47 g body weight = 11.8 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 143 mm — from the base to the 148 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 71 mm flat face → artwork up to 63 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 63 × 143 mm (W × H) flat label on each face, or a wrap label over the 45 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø28 mm screw neck — the 28/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 400 ml the Ø28 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PETG formats to this 400 ml model (300 ml, 290 ml, 500 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1687-500 | 500 ml | 60 g | Ø28 mm | 174 mm | +100 ml larger · same neck |
| SJE1793-400 | 400 ml | 47 g | Ø28 mm | 163 mm | This model |
| SJE1741-300 | 300 ml | 47 g | Ø24 mm | 151 mm | 100 ml smaller |
| SJE1688-290 | 290 ml | 50 g | Ø24 mm | 145 mm | 110 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
