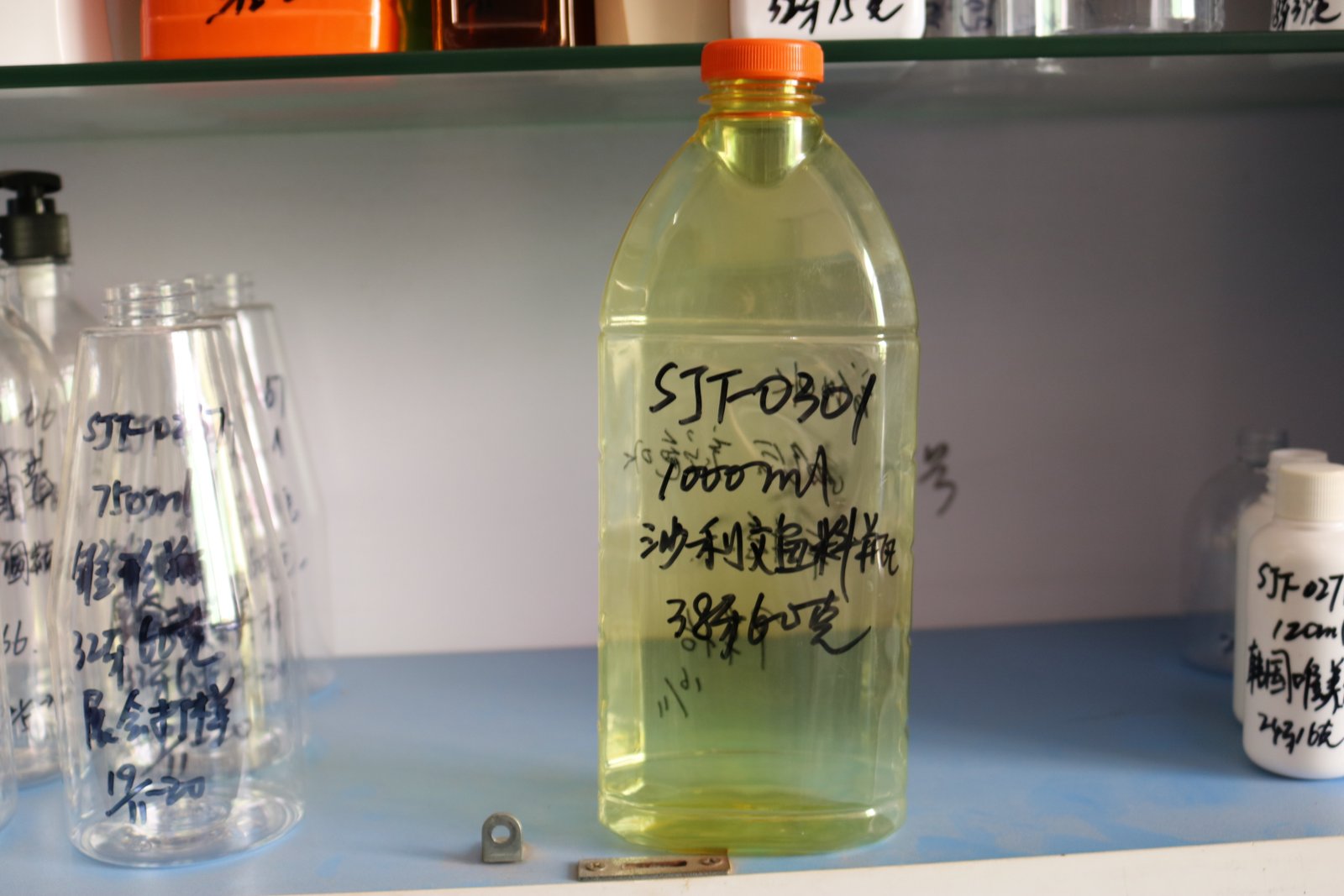

PET Cosmetic Bottle 1000ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0301-1000. Nominal factory values — custom colors, printing and finishing available on all parameters below.

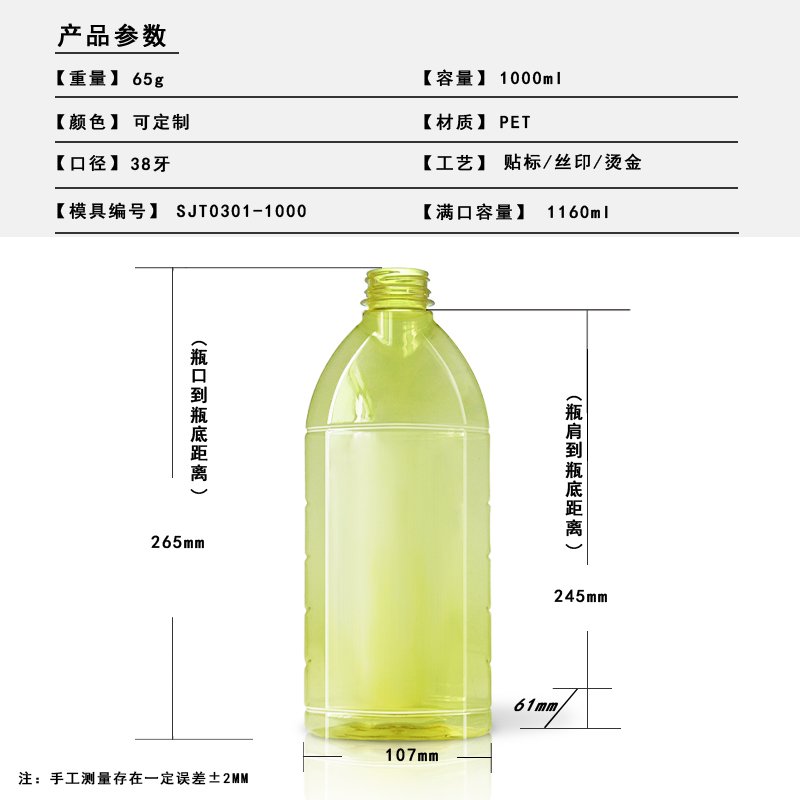

| Dimensions & Capacity | |
| Nominal Capacity | 1000 ml (33.8 fl oz) |
| Overflow Capacity (brimful) | 1160 ml (39.2 fl oz) |
| Bottle Weight | 65 g |
| Total Height | 265 mm |
| Shoulder Height | 245 mm |
| Base (W × D) | 107 × 61 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large PET bottle: refillable body wash, shampoo, conditioner and household-care volumes. Large formats cut per-unit packaging cost while keeping a clean, premium look.
SJT0301-1000 is a 1000 ml PET bottle in the family & refill size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for family-size body care, refill packs and value bundles. It works with standard screw, pump or flip-top closures so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 1,000 ml ≈ 33.8 fl oz). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 107 × 61 mm base (1.75 : 1 width-to-depth). Two parallel 107 mm faces carry front and back artwork, while the narrow 61 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.48 : 1 (265 mm tall, 107 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 1,000 ml stated capacity inside a 1,730 ml rectangular outline — 58 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 65 g body weight = 6.5 g per 100 ml. Lightweight range: lower resin cost per unit and cheaper freight at equal carton count. |
| Label & decoration zone | |
| Usable label height | Up to 240 mm — from the base to the 245 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 107 mm flat face → artwork up to 99 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 99 × 240 mm (W × H) flat label on each face, or a wrap label over the 61 mm sides for tamper evidence. |
Nearest PET formats to this 1,000 ml model (980 ml, 960 ml, 1,200 ml, 1,300 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0085-1300 | 1,300 ml | 65 g | Ø32 mm | 216 mm | +300 ml larger |

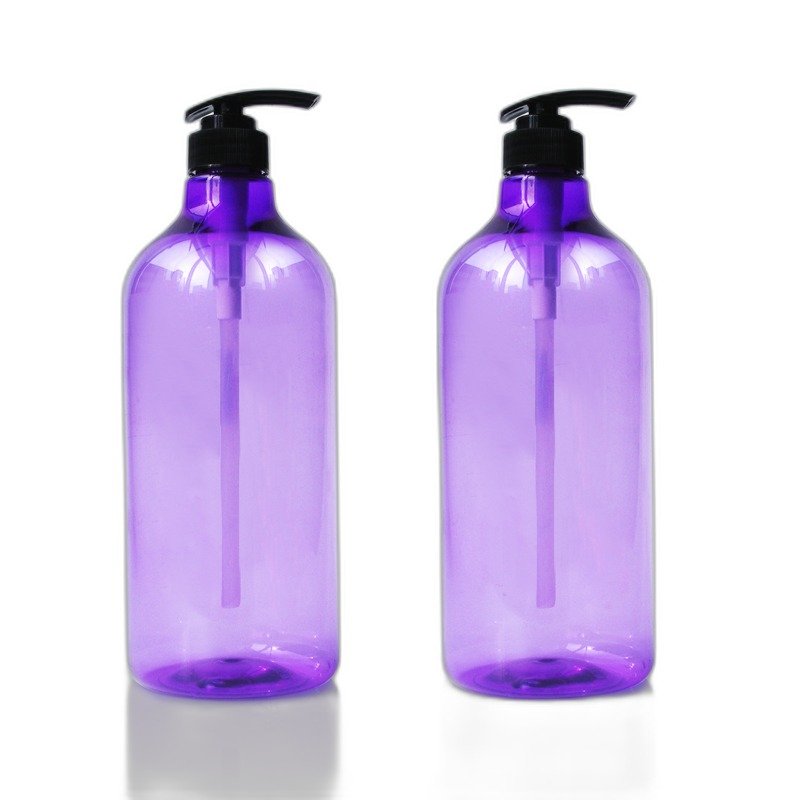

| SJT0160-1200 | 1,200 ml | 65 g | Ø32 mm | 233 mm | +200 ml larger |
| SJT0301-1000 | 1,000 ml | 65 g | Ø— mm | 265 mm | This model |
| SJT0202-980 | 980 ml | 55 g | Ø28 mm | 215 mm | 20 ml smaller |
| SJT0389-960 | 960 ml | 60 g | Ø32 mm | 252 mm | 40 ml smaller |
